From Electrode to Electrode Wire: Navigating EDM Consumable Selection

Electric discharge tools include the consumables and supporting components used for electrical discharge machining (EDM). The right selection depends on the machining process, component type, machine compatibility, product specifications and replacement requirements.

MISUMI India groups these products into seven categories: Electrode Wires, Parts for Cutting Wires, Ion Replacement Resin, Filters for Cutting Wires, Electrode Blank, Sinker Electrical Discharge Filters and Electric Discharge Jigs. This structure helps buyers move from a general requirement to the relevant product category.

MISUMI India Electric Discharge Tools

Start by identifying the EDM process and the component required. For wire EDM, the relevant categories include electrode wires, cutting-wire parts, ion replacement resin and filters for cutting wires. For die-sinker EDM, electrode blanks and sinker electrical discharge filters are relevant. Electric discharge jigs form a separate workholding category.

Check Machine Compatibility

For replacement parts, verify the applicable machine model or manufacturer and mounting location where the product information provides those specifications. MISUMI specifically notes that parts for cutting wires should be selected according to the applicable processing-machine model and mounting location.

Match Specifications and Configuration

Compare the specifications that distinguish products within the required category. Depending on the component, this can include wire diameter, material, dimensions, form, coupler or other listed configurations. A specification-first approach is more reliable than choosing a replacement only because it appears similar.

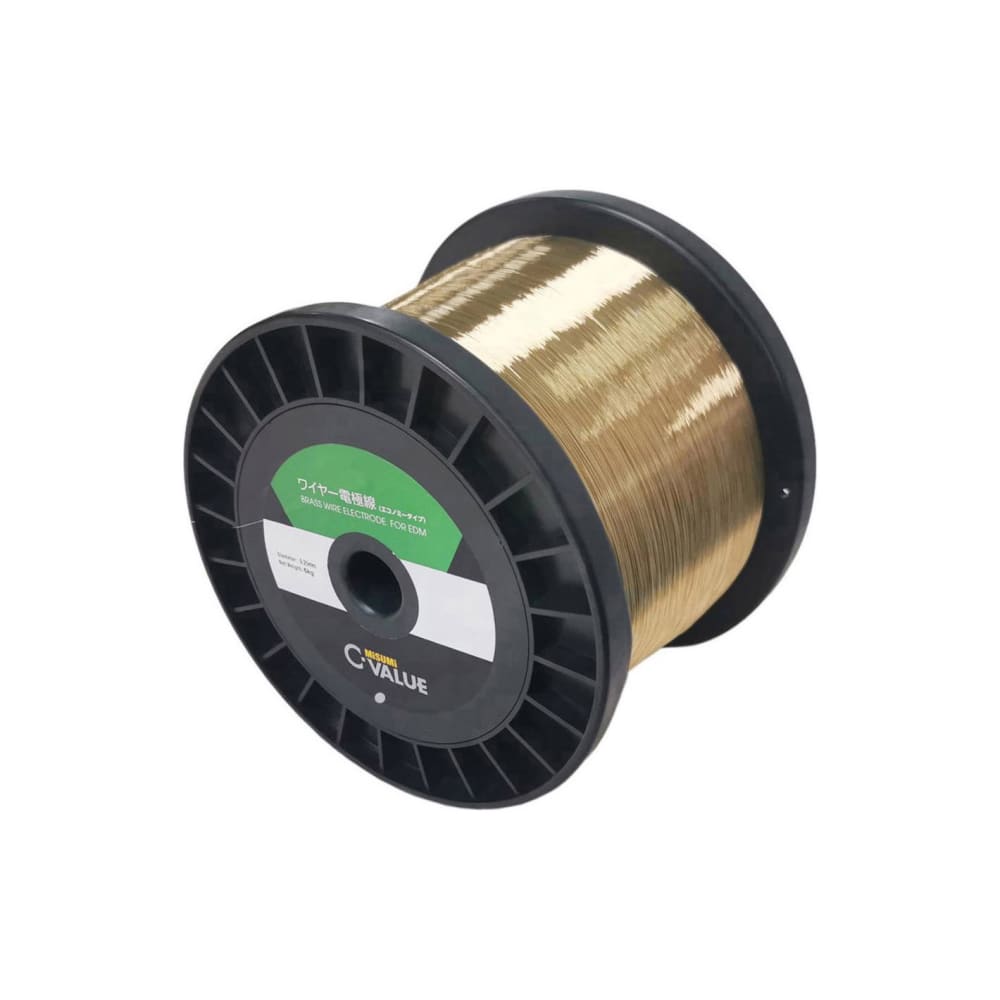

Electrode wires are used as electrodes in electric discharge machines. MISUMI states that wire diameter is determined by factors such as workpiece shape and thickness, with 0.2 to 0.3 mm generally used. Brass, a mixed copper-and-zinc material, is the most popular wire material in the category.

For available products, see MISUMI India's Electrode Wires category.

Consider Wire Diameter and Material

Before ordering, compare the required wire diameter and material with the available product specifications. MISUMI electrode-wire products are supplied wound on bobbins, so the selected configuration should also match the purchasing requirement.

Plan Wire Storage and Quantity

MISUMI notes that leaving electrode wire unused for a long period can result in winding curls and recommends prompt use after purchase. Purchase quantities should therefore be planned around expected consumption and practical storage.

Parts for cutting wires include diamond guides, collection rollers, pinch rollers, urethane rollers, feed rollers and workpiece clampers. These are consumable components, and selection depends on the applicable processing-machine model and mounting location.

See the available Parts for Cutting Wires from MISUMI India when identifying a replacement component.

Identify the Required Component

First determine whether the replacement is a guide, roller, clamper or another cutting-wire component. Then compare the applicable product specifications and mounting requirements.

Verify Compatibility Before Ordering

Record the existing part number, machine information, mounting location and relevant dimensions where available. This information can help narrow the correct replacement instead of selecting a visually similar component.

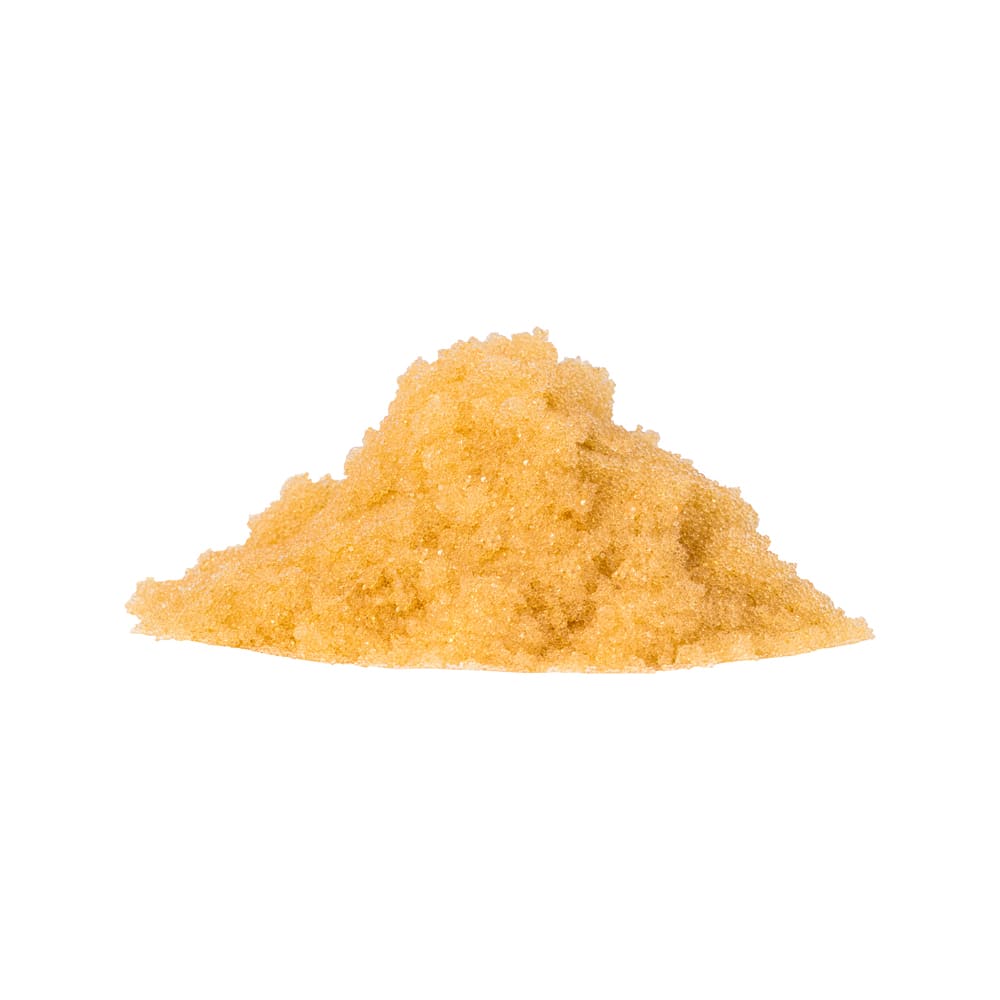

Ion replacement resin is a dedicated EDM product category. When purchasing, first confirm that the requirement is for ion replacement resin and then compare the available product specifications.

The dedicated Ion Replacement Resin category can be used to review the available products.

Plan Resin Replacement

Include resin in the recurring EDM consumable purchasing plan. Keeping the product name, model information and previous order details makes repeat procurement easier and helps maintain configuration consistency.

Filters for cutting wires are used with wire cutting machines to remove machining particles from machining fluid. MISUMI lists anti-rust-treated, stainless steel and resin filter options, along with different filter-paper constructions.

Compare available options in the MISUMI India Filters for Cutting Wires category.

Compare Filter Type and Configuration

Select the filter according to the required product type and available specifications. The objective is to match the filter construction and configuration rather than choosing only by price.

Check Dimensions and Applicable Machine

Before ordering a replacement, verify available dimensions, applicable machine information and other listed specifications. MISUMI filter listings can include attributes such as applicable manufacturer and coupler configuration, making these useful procurement checks.

Plan Filter Replacement

Filters are replacement components, so record the product specification and previous purchase details. This supports repeat ordering and reduces the risk of selecting a different configuration unintentionally.

Electrode blanks are used for die-sinker EDM. MISUMI lists materials including copper tungsten, tough-pitch copper, oxygen-free copper and chrome copper, as well as silver and graphite options.

Review the available EDM Electrode Blank products from MISUMI India before making a replacement or new-product selection.

Compare Material and Form

Select the electrode material according to the required product specification. Electrode forms include plate, round rod and square rod. MISUMI recommends selecting the electrode shape according to the workpiece shape and choosing an appropriate size according to workpiece size.

Sinker electrical discharge filters form a separate product category. Before purchasing, identify the required filter type and verify the applicable specifications and compatibility information provided for the product.

Use the MISUMI India Sinker Electrical Discharge Filters category to review the available product options.

Use the Existing Part as a Reference

For replacement procurement, retain the previous model number, dimensions and machine information where available. Confirm these details against the new product before ordering.

Electric discharge jigs are another dedicated product category within MISUMI's Electric Discharge Tools range. Select the jig according to the required workholding configuration and verify the product specifications before purchase.

Review Electric Discharge Jigs from MISUMI India when selecting the appropriate product category.

Use this sequence when selecting an EDM tool or replacement component:

• Identify the EDM process: wire EDM or die-sinker EDM.
• Identify the required component: wire, cutting-wire part, resin, filter, electrode blank or jig.
• Record the existing part information: model number and machine information.
• Check specifications: dimensions, material, form and other listed product attributes.
• Verify compatibility: confirm machine and mounting requirements where applicable.
• Confirm configuration and quantity: select the required product configuration and purchase quantity.
• Plan replacement: record recurring requirements for consumable and replacement components.

EDM Tool Comparison

Product Group	Key Selection Checks	Procurement Priority
Electrode Wires	Diameter, material, configuration	Compatibility and quantity
Parts for Cutting Wires	Component type, machine model, mounting	Correct replacement
Ion Replacement Resin	Product specification	Recurring procurement
Filters for Cutting Wires	Type, dimensions, manufacturer, coupler	Compatibility and replacement
Electrode Blank	Material, form, size	Workpiece-related selection
Sinker Electrical Discharge Filters	Type and listed specifications	Replacement verification
Electric Discharge Jigs	Product type and configuration	Workholding requirement

Maintenance and Lifecycle Planning

Lifecycle planning is especially useful for consumable and replacement products. Keep records of model numbers, specifications and purchase quantities so repeat orders can be checked against the original requirement.

For electrode wire, follow MISUMI's storage guidance and avoid unnecessarily long storage. For replacement filters, resin and cutting-wire components, use the applicable product information to identify the correct replacement rather than assuming that similar-looking parts are interchangeable. MISUMI specifically warns that prolonged storage of electrode wire can cause winding curls.

A simple procurement record can include the component name, model number, machine information, key specifications, previous quantity and purchase date. This creates a repeatable process for future orders.

Avoid Common Selection Mistakes

Do not select an EDM component only by price or appearance. Do not skip machine compatibility or mounting checks when those specifications are relevant. Also avoid ordering a different configuration simply because it has a similar product name.

The safest sequence is:

Process → Component → Compatibility → Specifications → Configuration → Quantity → Replacement planning.

Choose Electric Discharge Tools by Specification

Selecting electric discharge tools becomes easier when the purchasing process starts with the required EDM process and component, then moves through compatibility and specifications before the final product comparison.

For wire EDM, compare electrode wires, cutting-wire parts, ion replacement resin and filters for cutting wires. For die-sinker EDM, evaluate electrode blanks and sinker electrical discharge filters. For workholding requirements, review electric discharge jigs.

Using a specification-first approach helps make replacement purchasing more consistent while supporting better lifecycle planning for recurring EDM components.
