Flat Belt Conveyor, Head Drive, High Load Type, Pulley Dia. 60mm

Brand :
MISUMI

Caution

    Product Description

    Economy series Belt Conveyor

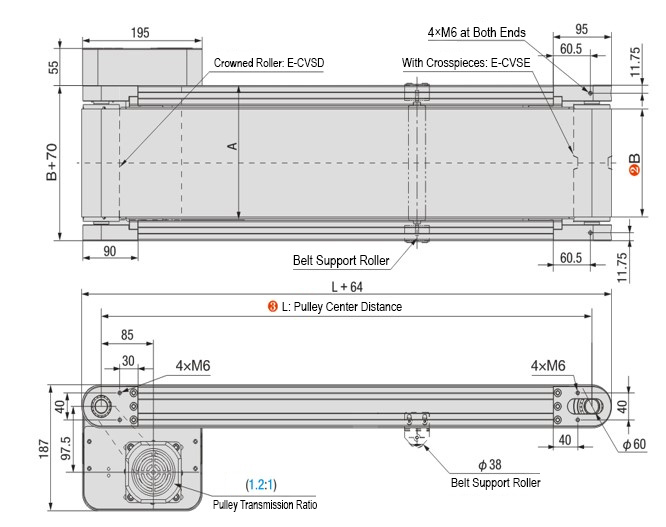

    Dimensional Drawing
    E-CVSD/E-CVSE
    Motor specification: 90W*
       Default conveying direction
    When L > 2000, one belt support roller is included.
    For B < 500, a single guide is used; for B ≥ 500, double guides are used.
    The dimensions shown in the drawing are for belt specification H20 (thickness 2.0 mm). Please note that the belt thickness varies depending on the belt specification.
     Please refer to the flat belt specification list. Click here
    When selecting a speed control motor, the speed controller is supplied as an accessory, is not installed on the main unit, and does not include a mounting bracket.
     If a bracket for the speed controller is required, please use the alteration (SCB).
    The drive side uses chain transmission, and the noise is relatively high during high-speed operation.
    *Differences in power only affect the motor size. For the A dimension, please refer to the table below. The external dimensions of the other parts remain the same.

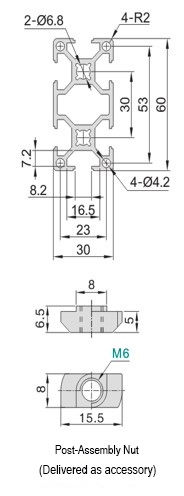

    Enlarged view of profile cross-section (left and right symmetrical)
    MISUMI belt conveyor manufacturer aluminum profile cross-section aluminium frame

    Standard nut allocation table for profile groove: L value (center distance unit: mm)
    L550 to 999L1000 to 1499L1500 or moreSpecificationConfiguration Type
    16PCS24PCS32PCSM6 (T shape) / E-TNT8-30-6(50)Accessory
    Nuts are shipped with the conveyor as accessories and are not displayed in the CAD model.
    Nuts order quantity 1 = 1 pack (50 pcs/pack).

    ■ A dimension detailed table (speed regulation/inverter motor)
    Motor powerMotorReduction RatioA
    SpecificationManufacturer
    60WInverter typeGPG3 to 18L168
    25 to 180L186
    Speed regulation type3 to 18L179.5
    25 to 180L197.5
    Inverter typeJSCC3 to 18L171
    25 to 180L191
    Speed regulation type3 to 18L182
    25 to 180L202
    90WInverter typeGPG3 to 18L183
    25 to 180L201
    Speed regulation type3 to 18L194.5
    25 to 180L212.5
    Inverter typeJSCC3 to 18L186
    25 to 180L206
    Speed regulation type3 to 18L197
    25 to 180L217
    120WInverter typeGPG3 to 18L183
    25 to 180L201
    Speed regulation type3 to 18L194.5
    25 to 180L212.5
    Inverter typeJSCC3 to 18L196
    25 to 180L216
    Speed regulation type3 to 18L207
    25 to 180L227
    200WInverter typeGPG3 to 18L230
    25 to 180L230
    Speed regulation type3 to 18L240.5
    25 to 180L240.5
    Inverter typeJSCC3 to 18L219
    25 to 180L243
    Speed regulation type3 to 18L231
    25 to 180L255
    ■ A dimension detailed table (stepper motor)
    NameMotor ModelA
    Leadshine stepper motor (open loop)86CM45L80
    86CM80L98
    86CM120L129
    ■ A dimension detailed table (servo motor)
    Servo MotorSupported Motor SpecificationA
    750W servo motorLeadshine servo motorL95.7
    ■ A dimension detail (planetary reducer)
    Gear Ratio (x)Supported Motor SpecificationA
    3 5 10Equipped with a 750W servo motorL110
    15 20 25 30L130
    3 5 10Equipped with an 86 stepper motorL110
    15 20 25 30L130
    When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.
    Specification Overview
    ■ Material Table
    Part NameMaterialSurface Treatment
    ProfileAluminumAnodized
    Motor coverAluminumSpray coating and baking
    Pulley holderAluminumSpray coating and baking

    ■ Flat belt width - pulley center distance correspondence table
    ModelBelt Width
    B    		Pulley Center Distance L
    L550 to 600L605 to 1500L1505 to 2000L2005 to 2500L2505 to 3000
    E-CVSD
    E-CVSE    		80 to 200●●●●●
    205 to 300●●●●●
    305 to 400●●●●●
    405 to 500-●●●●
    505 to 600--●●●
    Specification Table
    Please follow the selection procedure to , select the type and parameters, and then proceed with ordering.
    Type-Belt Width B-Pulley Center Distance L-Motor Selection-Belt Specification-Motor
    Manufacturer
    Selection

    Output power-Specification-Gear Head Reduction Ratio

    When there is no pulley
    When there is no motor or gear head    		E-CVSE
    E-CVSE
    E-CVSE    		-
    -
    -    		300
    300
    300    		-
    -
    -    		1500
    1500
    1500    		-
    -
    -    		60
    60
    60    		-
    -
    -    		SCM
    INV
    NM    		-
    -
    -    		25
    25
    NH    		-
    -
    -    		H20
    J
    H20    		-
    -
    -    		G
    G
    R

    ■ Specification
    TypeTypeMachine Characteristics
    E-CVSDArc-shaped roller anti-deviationGood belt flatness and high surface accuracy
    E-CVSEBelt with guide strip for deviation preventionBelt deviation prevention is stable, but there is a slight bulge at the bonding area of the center guide strip on the flat belt

    ■ Speed control/inverter type
    TypeB Selection
    Specified unit 5 mm    		L
    Specified unit 5 mm    		Motor SelectionBelt Specification
    (Material is generally PU)    		Motor
    Torque (N⋅m) Power (W)Specification/Drive MethodGear Head Reduction Ratio
    E-CVSD
    (Arc-shaped roller type)

    E-CVSE
    (With guide bar type)

    80 to 600

    		550 to 300060
    90
    120
    200
    (Power W)    		SCM
    (Single-phase 220 V speed regulation type)
    5 7.5 10 12.5 15 18 
    25 30 36 50 60 75 
    90 100 120 150 180
    H20    (General use · green PVC)
    W20(General use · white PVC)
    U13(Sliding · green PVC)
    S13(Sliding · white PVC)
    D20(Anti-static · green PVC)
    F15(For food conveying · white PU)
    O14(Oil-resistant · specification · green PU)
    Y20(General use · yellow PVC)
    V20(General use · red PVC)
    J(Without belt)
         		G(GPG - Taibang motor)

    J(JSCC - Jingyan motor)
    INV
    (3-phase 220 V inverter type)
    NM(without motor)NH(without gear head)R(without motor and gear head)
    When there is no gear head and the gear head reduction ratio is ≤ 10, the drive side uses timing belt transmission; when the gear head reduction ratio is > 10, the drive side uses chain transmission.
    When selecting the INV inverter motor, the inverter is delivered together as an accessory.

    ■ Stepper type
    TypeB Selection
    Specified unit 5 mm    		L
    Specified unit 5 mm    		Motor SelectionBelt Specification
    (Material is generally PU)    		Motor
    Torque (N⋅m) Power (W)Specification/Drive MethodGear Head Reduction Ratio
    E-CVSD86
    (Arc-shaped roller type)

    E-CVSE86
    (with guide strip type)    		80 to 600550 to 30004.5
    8.0
    12.0
    (86 stepper type / torque N⋅m)    		MC(pulse universal type)
    IO(IO control type)
    EC(bus EtherCAT)
    RS(RS485 communication)    		3 5 10
    15 20 25 30
    NH    (without gear head)
    Caution: 3 to 10 are single pole    		H20 (general use · green PVC)
    W20 (general use · white PVC)
    U13 (sliding · green PVC)
    S13 (sliding · white PVC)
    D20 (anti-static · green PVC)
    F15 (for food conveyance · white PU)
    O14 (oil-resistant · specification · green PU)
    Y20 (general use · yellow PVC)
    V20 (general use · red PVC)
    J (without belt)    		LS
    (Leadshine motor)
    NM (without motor and driver)R (without motor, driver, and gear head)
    When using an 86 stepper with a torque of 4.5 N⋅m, the driver supports an input voltage of 48 V DC. (Power supply not included)
    When using an 86 stepper with a torque of 8.0 N⋅m or 12.0 N⋅m, the driver supports an input voltage of 24 V DC to 70 V DC or 48 V AC to 70 V AC, two types of power supply voltage. (Power supply not included)
    The drive side uses timing belt transmission.

    ■ Servo type
    TypeB Selection
    Specified unit 5 mm    		L
    Specified unit 5 mm    		Motor SelectionBelt Specification
    (Material is generally PU)    		Motor
    Torque (N⋅m) Power (W)Specification/Drive MethodGear Head Reduction Ratio
    E-CVSD75
    (Arc-shaped roller type)

    E-CVSE75
    (with guide strip type)    		80 to 600550 to 3000
    750
    (servo type power W)    		MC(pulse universal type)

    EC(Bus EtherCAT)    		3 5 10
    15 20 25 30
    NH    (without gear head)
    Caution: 3 to 10 are single pole
    H20(general use · green PVC)
    W20(general use · white PVC)
    U13(sliding · green PVC)
    S13(sliding · white PVC)
    D20(anti-static · green PVC)
    F15(for food conveying · white PU)
    O14(oil-resistant · specification · green PU)
    Y20(general use · yellow PVC)
    V20(general use · red PVC)
    J(no belt)
         		LS
    (Leadshine motor)
    NM(No motor · drive)R(without motor, drive, or gear head)
    When a servo motor is selected, the motor and driver are supplied by default with a single-phase 220 V power supply. In conveyor applications, a motor rated speed of 3000 r/min is used as the standard for linear speed calculation. During use, control can be customized through host computer programming.
    The drive side uses timing belt transmission.

    The belt thickness is the nominal thickness; the actual thickness is one-tenth of this value, with the unit in mm.
    For oil resistance specifications, only the transmission surface is oil resistant. If oil gets on the back of the belt, it may become unusable.
    When selecting without motor and without gear head, the motor installation hole pitch will vary depending on the motor output power.
    When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.
    For belts other than those above, please refer to the specification overview by clicking here.

    Table 1: Deceleration head reduction ratio & transmission capacity (speed regulation/inverter motor)
    ■ Transmission capacity
    MISUMI belt conveyor load capacity
    Test motor: JSCC (J) timing pulley transmission ratio 1.2:1
    Belt width: B = 600 mm, thickness 2.0 mm Roller center distance: L = 3000 mm
    ■ Deceleration head reduction ratio-speed correspondence table
    INV inverter type: Reference value for flat belt speed when the motor speed is 1300 rpm (50 Hz).
    *Reference value
    Gear Head
    Reduction Ratio    		Flat Belt Speed (m/min)
    SCM speed regulation typeINV inverter type
    538.0 to 61.035.3 to 58.8
    7.525.3 to 42.223.5 to 39.2
    1019.0 to 31.717.6 to 29.4
    12.515.2 to 25.314.1 to 23.5
    1512.7 to 21.111.8 to 19.6
    1810.6 to 17.69.8 to 16.3
    257.6 to 12.77.1 to 11.8
    306.3 to 10.65.9 to 9.8
    365.3 to 8.84.9 to 8.2
    503.8 to 6.33.5 to 5.9
    603.2 to 5.32.9 to 4.9
    752.5 to 4.22.4 to 3.9
    902.1 to 3.52.0 to 3.3
    1001.9 to 3.21.8 to 2.9
    1201.6 to 2.61.5 to 2.4
    1501.3 to 2.11.2 to 2.0
    1801.1 to 1.81.0 to 1.6
    May decrease depending on the load state

    Table 2: Correspondence between load and linear speed (stepper motor)
    *Reference value
    Speed
    (rpm)    		Gear Head Reduction RatioRecommended Max. linear speed (m/min)Voltage 48 V DC (current 6 A)
    86CM4586CM8086CM120
    Load (kg)
    100NH18.8/1.52.5
    15028.3/0.51
    200312.681923
    57.5305570
    103.895100100
    152.5100100100
    201.9100100100
    251.5100100100
    301.3100100100
    Test motor: Leadshine (LS) timing pulley transmission ratio 1:1
    Belt width: B=400 mm, thickness 2.0 mm Roller center distance: L=1000 mm

    Table 3: Correspondence table of load and linear speed (servo motor)
    *Reference value
    Speed
    (rpm)    		Gear Head Reduction RatioRecommended Max. linear speed
    (m/min)    		Voltage 220 V AC
    750W
    Load (kg)
    3000NH//
    312025
    511345
    1056.590
    1537.7100
    2028.3100
    2522.6100
    3018.8100
    Test motor: Leadshine (LS) synchronous pulley with transmission ratio 1:1
    Belt width: B = 400 mm, thickness 2.0 mm Roller center distance: L = 1000 mm


    Alterations
    AlterationType-Belt Width B-Pulley Center Distance L-Motor Selection-Belt Specification-Motor Manufacturer
    Selection    		-Alteration

    Output Power-Specification-Gear Head Reduction Ratio
     E-CVSE-300-1500-60-SCM-25-H20-G-MK

    AlterationsCodeSpec
    Reverse motor installation position
    MISUMI belt conveyor alteration motor position change
    		MKThe motor installation position can be changed.
    Ordering code MK
    Can only be specified for head drive type.
    Mounting bracket for speed controller
    MISUMI belt conveyor speed regulator bracket alteration
    		SCBComes with a mounting bracket for the speed controller.
    Ordering code SCB
    Conveyor belt reverse conveyance
    MISUMI belt conveyor speed regulator bracket alteration
    		FXReverse conveyance.
    Ordering code FX
    Conveyor belt bidirectional conveyance
    MISUMI belt conveyor speed regulator bracket alteration
    Only supports models with guide strips    		SXBidirectional conveyance.
    Ordering codeSX
    Additional quantity of profile nuts in the profile groove
    MISUMI belt conveyor speed regulator bracket alteration
    Select only when the standard quantity is insufficient (see dimensional drawing information for standard quantity and specification)    		ANQAdditional quantity of nuts in the profile groove.
    Ordering codeANQ5
    CodeQuantity (pcs)Configuration type
    ANQ5 to 10Accessory
    Product Features
    Feature 1: The conveyor body uses an aluminum profile, achieving an overall lightweight design.
    Feature 2: The universal European standard 3060 profile makes it easy to assemble profile brackets and is widely used in logistics lines.
    Feature 3: The conveyor belt roller pitch has a wide selection range, can be specified in 5 mm increments, with a maximum pitch of up to 3 meters.
    Precautions
    (1) Do not disassemble or modify the conveyor by yourself to avoid causing performance defects.
    (2) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
    (3) Due to issues with the structural strength and deformation of the machine body, please do not exceed the allowable load or length and width when selecting a model.
    (4) The motor is available in two voltage specifications: single-phase 220 V and 3-phase 220 V. Please select the voltage according to your usage requirements.
    (5) Belt deviation is a normal phenomenon and does not constitute a quality problem. Deviation adjustment is part of daily maintenance.     For the deviation adjustment method, click here.
    (6) Deviation tolerance: The distance from the belt to both sides of the roller should be 5+/-3mm. During operation, it is not possible to ensure that the belt always stays at the center of the aluminum profile.
    (7) If the direction is opposite to the standard operating direction, belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid using it in this way. (The standard transport direction is shown in the figure below)
    MISUMI belt conveyor standard conveying direction
    Application Industries
    Equipment Production Semiconductor Lithium Battery
    MISUMI belt conveyor used for mobile phone production smartphone MISUMI conveying equipment transmits semiconductor products chip MISUMI conveying equipment used for lithium battery production battery
    Food Electronic & Electrical Robot
    MISUMI belt conveyor used for food production MISUMI belt conveyor used for electronic & electrical product production MISUMI belt conveyor works with robotic arms robot
    Related Products
    Economy flat belt conveyor head drive
    Pulley diameter 80 mm high output type    		 Economy flat belt conveyor built-in motor drive
    Pulley diameter 70 mm    		 Economy double-row timing belt conveyor head drive
    Pulley diameter 70 mm high output type
    MISUMI center drive belt conveyor conveyor MISUMI belt conveyor with double-row timing belt conveyor Aluminum profile for MISUMI conveyor
    Representative model: E-CVSG Representative model: E-CVSMA Representative model: E-CVGTC
    Related Documents   Click here

    (1) Motor wiring method
    (2) Flat belt specification list
    (3) Deviation adjustment method
    (4) Conveyor body weight
