Flat Belt Conveyor, Head Drive, High Load Type, Pulley Dia. 50mm

Brand :

MISUMI

Caution

Product Description

Economy series Belt Conveyor

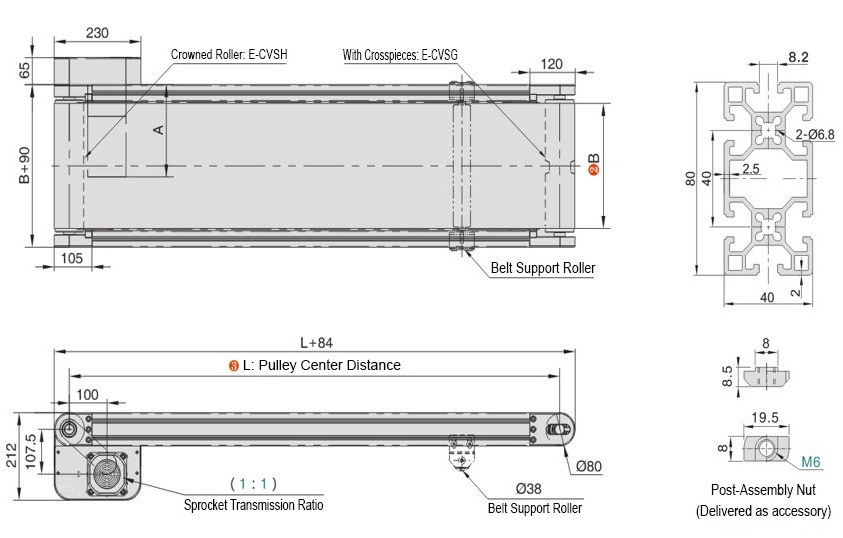

Dimensional Drawing

E-CVSH/E-CVSG

Motor specifications: 200W^*

Default conveying direction Enlarged view of profile cross-section
(symmetrical left and right)

	When L > 2000, one belt support roller is included.
	For B < 500, a single guide is used; for B ≥ 500, double guides are used.
	The dimensions shown in the drawing are for belt specification H20 (thickness 2.0 mm). Please note that the belt thickness varies depending on the belt specification.
	Please refer to the flat belt specification list. Click here
	When selecting a speed control motor, the speed controller is supplied as an accessory, is not installed on the main unit, and does not include a mounting bracket.
	If a bracket for the speed controller is required, please use the alteration (SCB).
	The drive side uses chain transmission, and the noise is relatively high during high-speed operation.

*Differences in power only affect the motor size. For the A dimension, please refer to the table below. The external dimensions of the other parts remain the same.

Standard nut allocation table for profile groove: L value (center distance unit: mm)

L600 to 999	L1000 to 1499	L1500 or more	Specification	Configuration Type
16PCS	24PCS	32PCS	M6 (T shape) / E-TNT8-40-6(50)	Accessory

Nuts are shipped with the conveyor as accessories and are not displayed in the CAD model.

Nuts order quantity 1 = 1 pack (50 pcs/pack)

■ A dimension detail table (speed regulation/inverter motor)

Motor Power	Motor		Reduction Ratio	A
	Specification	Manufacturer
120W	Inverter type	GPG	3 to 18	L183
			25 to 180	L201
	Speed regulation type		3 to 18	L194.5
			25 to 180	L212.5
	Inverter type	JSCC	3 to 18	L196
			25 to 180	L216
	Speed regulation type		3 to 18	L207
			25 to 180	L227
200W	Inverter type	GPG	3 to 18	L230
			25 to 180	L230
	Speed regulation type		3 to 18	L240.5
			25 to 180	L240.5
	Inverter type	JSCC	3 to 18	L219
			25 to 180	L243
	Speed regulation type		3 to 18	L231
			25 to 180	L255

■ A dimension detail table (stepper motor)

Brand	Motor Model	A
Leadshine stepper motor (open loop)	86CM45	L80
	86CM80	L98
	86CM120	L129

■ A dimension detail table (planetary reducer)

Gear Ratio (x)	Supported Motor Specification	A
3 5 10	Equipped with an 86 stepper motor	L110
15 20 25 30	Equipped with an 86 stepper motor	L130

When a stepper motor or servo motor is selected and a planetary reducer is configured, the A dimension shown in the diagram is the sum of the motor A dimension and the planetary reducer A dimension.

Specification Overview

■ Material table

Part name	Material	Surface Treatment
Profile	Aluminum	Anodized
Motor cover	Aluminum	Spray coating and baking
Pulley holder	Aluminum	Spray coating and baking

■ Flat belt width - pulley center distance correspondence table

Model	Belt Width B	Pulley Center Distance L
Model	Belt Width B	L600 to 1500	L1505 to 2000	L2005 to 2500	L2505 to 3000
E-CVSH E-CVSG	100 to 200	●	●	●	●
	205 to 400	●	●	●	●
	405 to 600	●	●	●	●
	605 to 800	●	●	●	●

Specification Table

Please follow the selection procedure

, select the type and parameters, and then proceed with ordering.

	Type	-	Belt Width B	-	Pulley Center Distance L	-	Motor Selection					-	Belt Specification	-	Motor Manufacturer Selection

							Output power	-	Specification	-	Gear Head Reduction Ratio
When there is no pulley When there is no motor or gear head	E-CVSG E-CVSG E-CVSG	- - -	300 300 300	- - -	2000 2000 2000	- - -	120 120 120	- - -	SCM INV NM	- - -	25 25 NH	- - -	H20 J H20	- - -	G G R

■ Specification Table

Type	Type	Machine Characteristics
E-CVSH	Arc-shaped roller anti-deviation	Good belt flatness and high surface accuracy
E-CVSG	Belt with guide strip for deviation prevention	Belt deviation prevention is stable, but there is a slight bulge at the bonding area of the center guide strip on the flat belt

■ Speed control/inverter type

Type	B Specified unit 5 mm	L Specified unit 5 mm	Motor Selection			Belt Specification (Material is generally PU)	Motor
			Torque (N⋅m)//Power (W)	Specification/Drive Method	Gear Head Reduction Ratio
E-CVSH (Arc-shaped roller type) E-CVSG (With guide strip type)	100 to 800	600 to 3000	120 200 (Power W)	SCM (Single-phase 220 V speed regulation type)	5 7.5 10 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180	H20(general use · green PVC) W20(general use · white PVC) U13(sliding · green PVC) S13(sliding · white PVC) D20(anti-static · green PVC) F15(for food conveying · white PU) O14(oil-resistant specification · green PU) Y20(general use · yellow PVC) V20(general use · red PVC) J(without belt)	G(GPG - Taibang motor) J(JSCC - Jingyan motor)
				INV (3-phase 220 V inverter type)
				NM(without motor)	NH(without gear head)		R(without motor and gear head)

When there is no gear head and the gear head reduction ratio is ≤ 10, the drive side uses timing belt transmission; when the gear head reduction ratio is > 10, the drive side uses chain transmission.

When selecting the INV inverter motor, the inverter is delivered together as an accessory.

■ Stepper type

Type	B Specified unit 5 mm	L Specified unit 5 mm	Motor Selection			Belt Specification (Material is generally PU)	Motor
			Torque (N⋅m)//Power (W)	Specification/Drive Method	Gear Head Reduction Ratio
E-CVSH86 (Arc-shaped roller type) E-CVSG86 (with guide strip type)	100 to 800	600 to 3000	4.5 8.0 12.0 (86 stepper type / torque N⋅m)	MC (pulse universal type) IO (IO control type) EC (EtherCAT bus) RS (RS485 communication)	3 5 10 15 20 25 30 NH (without gear head) Caution: 3 to 10 are single stage	H20(general use · green PVC) W20(general use · white PVC) U13(sliding · green PVC) S13(sliding · white PVC) D20(anti-static · green PVC) F15(for food conveying · white PU) O14(oil-resistant specification · green PU) Y20(general use · yellow PVC) V20(general use · red PVC) J(without belt)	LS (Leadshine motor)
				NM (without motor and driver)			R (without motor, driver, and gear head)

When using an 86 stepper with a torque of 4.5 N⋅m, the driver supports an input voltage of 48 V DC. (Power supply not included)

When using an 86 stepper with a torque of 8.0 N⋅m or 12.0 N⋅m, the driver supports an input voltage of 24 V DC to 70 V DC or 48 V AC to 70 V AC, two types of power supply voltage. (Power supply not included)

The drive side uses timing belt transmission.

The belt thickness is the nominal thickness; the actual thickness is one-tenth of this value, with the unit in mm.

For oil resistance specifications, only the transmission surface is oil resistant. If oil gets on the back of the belt, it may become unusable.

When selecting without motor and without gear head, the motor installation hole pitch will vary depending on the motor output power.

When selecting without motor and without gear head, the main unit will be delivered as parts. Please assemble by the customer according to the assembly procedure instruction manual included in the same package.

For belts other than those above, please refer to the specification overview by clicking

here.

Table 1: Deceleration head reduction ratio & transmission capacity (speed regulation/inverter motor)

■ Transmission capacity

Test motor: JSCC (J) timing pulley transmission ratio 1:1
Belt width: B=600 mm, thickness 2.0 mm Roller center distance: L=3000 mm

■ Deceleration head reduction ratio-speed correspondence table

INV inverter type: Reference value for flat belt speed when the motor speed is 1300 rpm (50 Hz).

Gear head reduction ratio	Flat belt speed (m/min)
Gear head reduction ratio	SCM speed regulation type	INV inverter type
5	42.2 to 67.8	39.2 to 65.3
7.5	28.1 to 46.9	26.1 to 43.5
10	21.1 to 35.2	19.6 to 32.7
12.5	16.9 to 28.1	15.7 to 26.1
15	14.1 to 23.4	13.1 to 21.8
18	11.7 to 19.5	10.9 to 18.1
25	8.4 to 14.1	7.8 to 13.1
30	7.0 to 11.7	6.5 to 10.9
36	5.9 to 9.8	5.4 to 9.1
50	4.2 to 7.0	3.9 to 6.5
60	3.5 to 5.9	3.3 to 5.4
75	2.8 to 4.7	2.6 to 4.4
90	2.3 to 3.9	2.2 to 3.6
100	2.1 to 3.5	2.0 to 3.3
120	1.8 to 2.9	1.6 to 2.7
150	1.4 to 2.3	1.3 to 2.2
180	1.2 to 2.0	1.1 to 1.8

May decrease depending on the load state

Table 2: Correspondence table of load and linear speed (stepper motor)

*Reference value

Speed (rpm)	Gear head reduction ratio	Max. linear speed (m/min)	Voltage 48 V DC (current 6 A)
			86CM45	86CM80	86CM120
			Load (kg)
100	NH	25.1	/	/	/
150	NH	37.7	/	/	/
200	3	16.7	/	6	8
	5	10.0	13	30	35
	10	5.0	70	85	160
	15	3.3	110	130	200
	20	2.5	150	180	200
	25	2.0	185	200	200
	30	1.7	200	200	200

Test motor: Leadshine (LS) Timing pulley transmission ratio 1:1
Belt width: B=400 mm, thickness 2.0 mm Roller center distance: L=1000 mm

Alterations

Type	-	Belt Width B	-	Pulley Center Distance L	-	Motor Selection					-	Belt Specification	-	Motor Manufacturer Selection	-	Alteration

						Output Power	-	Specification	-	Gear Head Reduction Ratio
E-CVSG	-	300	-	2000	-	120	-	SCM	-	25	-	H20	-	G	-	MK

Alterations

Code

Spec

Reverse motor installation position

MISUMI belt conveyor alteration motor position change

The motor installation position can be changed.
Ordering code MK
Can only be specified for head drive type.

Mounting bracket for speed controller

MISUMI belt conveyor speed regulator bracket alteration

SCB

Comes with a mounting bracket for the speed controller.
Ordering code SCB

Conveyor belt reverse conveyance

Reverse conveyance.
Ordering code FX

Conveyor belt bidirectional conveyance

Only supports models with guide strips

Bidirectional conveyance.
Ordering code SX

Increase the quantity of nuts in the profile groove

Select only when the standard quantity is insufficient (see dimensional drawing information for standard quantity and specification)

ANQ

Increase the quantity of nuts in the profile groove.
Ordering code ANQ5

Code	Quantity (pcs)	Configuration type
ANQ	5 to 10	Accessory

Product Features

Feature 1: The conveyor body uses an aluminum profile, achieving an overall lightweight design.
Feature 2: Medium and heavy load, universal European standard 4080 profile makes it easy to build profile brackets, and is widely used in logistics lines.
Feature 3: The conveyor belt roller pitch has a wide selection range, can be specified in 5 mm increments, with a maximum pitch of up to 3 meters.

Precautions

(1) Do not disassemble or modify the conveyor by yourself to avoid causing performance defects.
(2) Due to differences in the operating environment of the conveyor, MISUMI conveyors do not come with a power supply, cable, or switch.
(3) Due to issues with the structural strength and deformation of the machine body, please do not exceed the allowable load or length and width when selecting a model. For the deviation adjustment method, click

here.
(4) The motor is available in two voltage specifications: single-phase 220 V and 3-phase 220 V. Please select the voltage according to your usage requirements.
(5) Belt deviation is a normal phenomenon and does not constitute a quality problem. Deviation adjustment is part of daily maintenance.
(6) Deviation tolerance: The distance from the belt to both sides of the roller should be 5+/-3mm. During operation, it is not possible to ensure that the belt always stays at the center of the aluminum profile.
(7) If the direction is opposite to the standard operating direction, belt deviation, belt breakage, noise, jamming, and other abnormalities may occur. Please avoid using it in this way. (The standard transport direction is shown in the figure below)
MISUMI belt conveyor standard conveying direction

MISUMI belt conveyor standard conveying direction

Application Industries

Equipment Production	Semiconductor	Lithium Battery

Food	Electronic & Electrical	Robot

Economy Flat Belt Conveyor Head Drive Pulley Dia. 60 mm High Output Type	Economy Flat Belt Conveyor Built-in Motor Drive Pulley Dia. 70 mm	Economy Double-row Timing Belt Conveyor Head Drive Pulley Dia. 70 mm Built-in Motor

Representative model: E-CVSE	Representative model: E-CVSMA	Representative model: E-CVGTE

(1) Motor wiring method
(2) Flat belt specification list
(3) Deviation adjustment method
(4) Conveyor body weight
