Configure

Part number has not been determine

(7 Part Numbers Available)

Configure Remaining Specifications

Part Number Complete

C-PHSN63

Handle, Outer Dia. D Handle Thickness Mounting Section, Outer Dia. Round Hole Dia. type CAD Days to Ship

Specification/Dimensions

Handle, Outer Dia. D(Ø)
63

80

100

125

160

200

250
Clear
Handle Thickness(mm)
20.5

21

26

30

38

40

50.5
Clear
Mounting Section, Outer Dia.(Ø)
28

30

40

46

53

60

70
Clear
Round Hole Dia.(Ø)
8

10

12

16

18

22
Clear
type
- C-PHSN
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

Same day

6 Day(s) or Less
Clear

Specify Alterations

Solid Disk Handwheels/Cost Efficient Product (Part Number)

Click this image to zoom it.

Volume Discount

Brand :

Order Qty :
Total Price :

---
Days to ship :

---

Select part number to Order Now/ Add to Cart

CAD Download

(i)
Caution

Please check the content on our website as the PDF does not contain the most up-to-date information.

Product Description

New at MISUMI? Get 20% Discount on your First Purchase. Click to Register Now

[Features]·A general-purpose standard solid handwheel. ·A shaft hole fixed type.

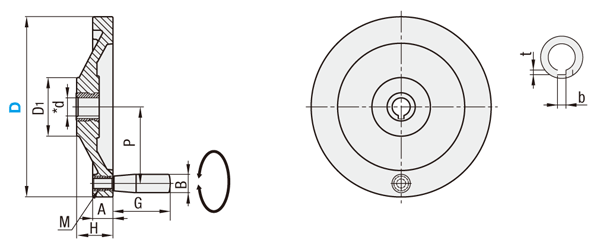

Dimensional Drawing

Shaft Bore/Keyway Details

[ ! ] The *d part is H7 Hole.

Type	Handwheel	Bushing		Handle Mounting Hole	Handle	Handle Thread
Type	[ M ]Material	[ M ]Material	[ S ]Surface Treatment	[ M ]Material	[ M ]Material	[ M ]Material	[ S ]Surface Treatment
C－PHSN	Phenol Resin	S45C	Zinc Plating	Brass	Phenol Resin	Carbon Steel for Mechanical Structure	Zinc Plating

Specification Table

Part Number

C－PHSN100

Part Number		H	A	D₁	d	M	P	B	G	Shaft Bore Details		Mass (g)
Type	D	H	A	D₁	d	M	P	B	G	b	t	Mass (g)
C－PHSN	63	20.5	13	28	8	6	25	15	32	3	1.4	86
	80	21	13	30	10	6	32.5	15	32	3	1.4	112
	100	26	15	40	12	6	40	20	50	4	1.8	212
	125	30	16	46	12	8	52	22	60	4	1.8	334
	160	38	21	53	16	10	68	26	80	5	2.3	575
	200	40	20	60	18	10	88	26	80	6	2.8	844
	250	50.5	25	70	22	12	112	28	100	6	2.8	1,386

Part Number

Incomplete part number.
Please use left hand selections to complete a part number.

: 30; 60; 90

Part Number
C-PHSN63
C-PHSN80
C-PHSN100
C-PHSN125
C-PHSN160
C-PHSN200
C-PHSN250

Price	Minimum Order Qty.	Volume Discount	Days to Ship	Handle, Outer Dia. D (Ø)	Handle Thickness (mm)	Mounting Section, Outer Dia. (Ø)	Round Hole Dia. (Ø)
₹ 1,480.48	1 Piece(s)	Available	Same day	63	20.5	28	8
₹ 1,480.48	1 Piece(s)	Available	6 Day(s) or more	80	21	30	10
₹ 1,784.37	1 Piece(s)	Available	6 Day(s) or more	100	26	40	12
₹ 2,173.97	1 Piece(s)	Available	6 Day(s) or more	125	30	46	12
₹ 2,493.44	1 Piece(s)	Available	6 Day(s) or more	160	38	53	16
₹ 3,101.22	1 Piece(s)	Available	6 Day(s) or more	200	40	60	18
₹ 4,216.45	1 Piece(s)	Available	6 Day(s) or more	250	50.5	70	22

Product TOP

Basic Information

Handle type	Solid	Inner Dia. Shaft Bore Shape	Hole + Keyway	Handle material	Phenol
Handle Bore	With Handle	Tap	None	Handle Type	Revolving Handle
Grip Material Details	Phenol

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
