Precision in Every Motion: The Importance of Adjustable Machine Legs
Publish Date: 14 Nov 2025
Adjustable machine legs, also known as leveling mounts or leveling feet, are far more than simple components—they are fundamental elements in machine design that directly ensure stability, control vibration, and guarantee operational precision. They serve as the critical interface between your equipment and the factory floor, managing the dynamic weight and stability of the entire system.
In this guide, we'll detail the essential functions of these supports, review the common industrial types, and outline the necessary steps for selecting the perfect adjustable leg for your application.

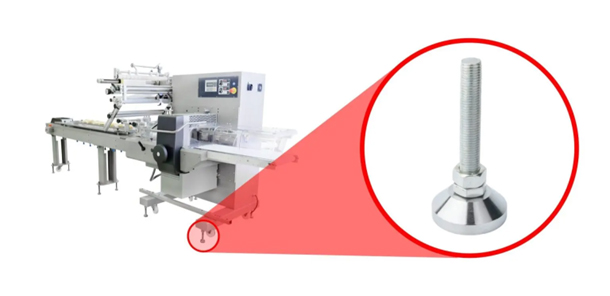

Key Functions Driving Precision and Stability
Properly selected and installed machine supports provide several critical benefits that directly impact operational efficiency and the machine's longevity:
- Weight Support and Load Distribution: The primary function is to safely bear the entire static weight of the machine. They distribute this load evenly to prevent structural fatigue, component stress, and damage to the foundation.
- Vibration and Shock Isolation: Many supports incorporate dampening materials like rubber or neoprene to absorb operational vibrations and minor shocks. This isolation prevents movement that could compromise the accuracy of precision components, reduces noise pollution, and extends the operational life of the equipment.
- Precision Leveling: Adjustable legs enable engineers to fine-tune the height at multiple points. Achieving a perfectly level base is essential for high-precision machinery, such as scales, testing equipment, and long conveyor systems, ensuring they function accurately without gravity-induced errors.
- Height Synchronization: They allow for quick, minor adjustments to align machinery with other equipment, match conveyor heights, or set an ergonomically appropriate working height for operators.
Common Types of Supports for Industrial Motion
The variety of leveling feet available ensures that engineers can find a suitable option to manage nearly every industrial environment and load requirement:

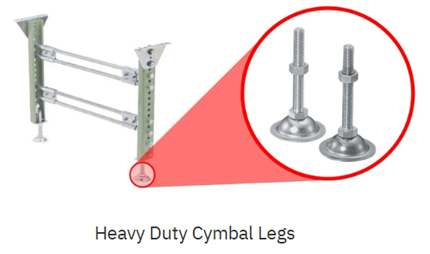

1. Heavy-Duty Leveling Mounts: These supports are built to handle substantial static and dynamic loads. They are characterized by large-diameter bases and robust threading (often M24 or M30).
Application: Ideal for supporting massive machine structures, heavy tanks, or major conveyor frame guides where stability under extreme weight is crucial.

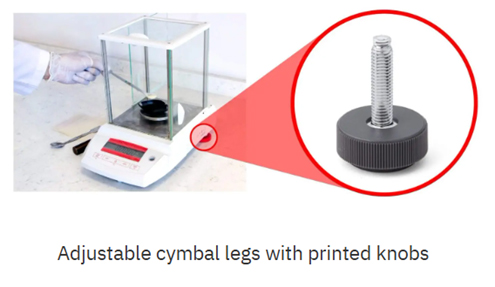

2. Precision Adjustment Feet: These often feature fine-pitch threads or incorporated adjustment knobs for highly accurate, fine-grained leveling.
Application: Essential when precise horizontal alignment is required, such as leveling precision scales or adjusting optical equipment and specialized assembly jigs. These usually handle lighter loads but offer maximum adjustability.

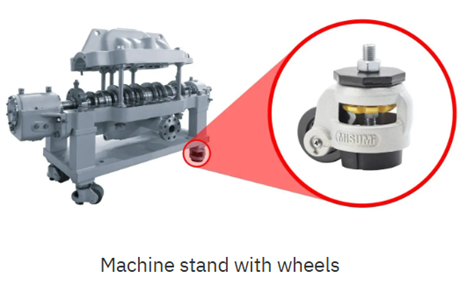

3. Machine Stands with Casters (Mobility Supports): These legs combine the stability of a support foot with an integrated trolley caster or wheel.
Application: Used for machinery that needs frequent relocation or must be moved to quickly accommodate changes in a production or assembly line layout. They increase convenience and often feature a locking mechanism to ensure stability once the machine is positioned.
Selecting the Right Adjustable Legs for Your Design
Choosing the correct leveling foot requires a systematic, load-driven approach based on the machine's requirements and the operating environment.
1. Determine Load Capacity Requirements
This is the most critical calculation. You must determine the weight the fan needs to support and the load per leg.
- Total Weight Calculation: Identify the total machine weight (e.g., 200 kg for a piece of testing equipment).
- Load per Leg: Divide the total weight by the number of support points (e.g., 4 legs for a machine base). Crucially, you must apply a safety factor (commonly 50% or higher) to account for potential dynamic loads, uneven weight distribution, and impacts.
2. Confirm Mechanical and Material Specifications
- Thread Compatibility: Ensure the thread type, size, and length (e.g., M24 thread, 100 mm length) are fully compatible with the machine's existing frame or mounting holes.
-
Construction Material: The material must withstand the operating environment:
- Stainless Steel: Offers high strength and exceptional corrosion resistance. Mandatory for sterile environments like the food processing or pharmaceutical industries.
- Carbon Steel: A standard, cost-effective choice for general industrial applications.
-
Base Pad Material: The material of the footpad determines vibration control and floor protection:
- Neoprene Rubber: Provides excellent vibration dampening and resistance to common chemicals, oils, and UV exposure.
- PVC: Often selected when the priority is preventing floor damage, suitable for supporting smaller, lighter machinery.
Configure Your Design for Unmatched Precision with MiSUMi
Adjustable machine legs are fundamental to maintaining a precise, stable, and long-lasting operational environment. By strictly adhering to these guidelines for load, material composition, and dynamic stability, you ensure your equipment performs with the utmost reliability.
Explore MiSUMi’s comprehensive product line of adjustable leveling feet, including options for heavy loads, precision leveling, and mobility, to source the exact components needed for your next design project.
