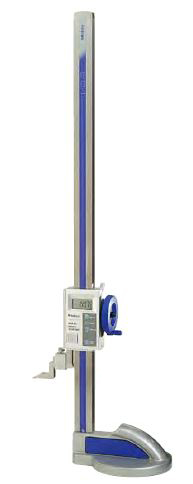

ABSOLUTE Digimatic Height Gage SERIES 570 — with ABSOLUTE linear Encoder

• ABS and INC measurement modes allow efficient operation.
• Rigid structure makes instrument suitable for use in severe work environments.
• The +/- measurement function widens the application range.
• Allows integration into statistical process control and measurement systems.
• Battery: SR44 (1 pc), 938882. For initial operational checks (standard accessory)
• Battery life is 5,000 hours under normal use.
• Carbide-tipped scriber (No.900173 for Nos. 570-227 and 244, and No.905200
for Nos.570-230 and 248) is provided as a standard accessory.
(Standard accessory: scriber cramp No. 901338 for Nos. 570-227 and 244, and
No. 05GZA033 for Nos. 570-230 and 248)
• When a dial indicator or test indicator is used with 570-227, the dedicated
holding bar (953639, overall length 50mm) is recommended for use. However,
instrumental error may be larger because the measurement point is further from the beam.
