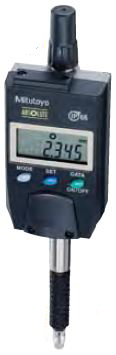

ABSOLUTE Digimatic Indicator ID-N/B SERIES 543 — with Dust/ Water Protection Conforming to IP66(Measuring Range: 5-12.7mm)

• Our unique ABS sensor restores the last origin position automatically when
the indicator is turned on.
• The chance of overspeed errors has been eliminated thanks to the ABS sensor.
• Rated to IP66: can be used satisfactorily even in adverse environments where
the indicator is subject to splashing by cutting fluid or coolant.
• Slim body design (body width: only 35mm) is advantageous in multipoint measurement
situations where space is restricted. The LCD readout can also be rotated 180°
to allow reading from the most convenient direction.
• Succeeded in digitalization of the Back Plunger type widely used for dial indicators
for ID-B. A 5mm-stroke plunger with a higher degree of accuracy has been implemented
by adopting a direct reading scale for plunger displacement.
• Built-in tolerance judgment function provides OK, +NG, or –NG judgment of measurement
with respect to the preset upper and lower limit values, indicating the status of
a measurement with the appropriate symbol. The symbols can be displayed much larger.
• Equipped with a data output port that enables incorporation into measurement networking
and statistical process control systems.
• There is a choice of convenient Interface Input Tools which enable the conversion of
measurement data to keyboard signals and directly input them to cells in off-the-shelf
spreadsheet software such as Excel.
