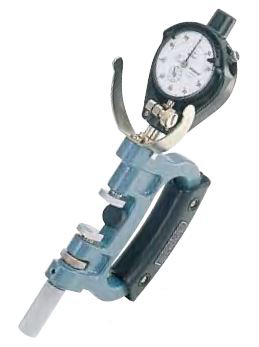

Dial Snap Gage(Measuring Range: 0-300mm)

• Designed for quick GO/NG judgment of diameters of cylinders and shafts in machining processes.
• Wide (13.5 x 12mm/ 1.53 x 47”), flat carbide anvils.
• Anvil retracting stroke: 2mm/.080”Anvil positioning range: 25mm/ 1”
• Adjustment nut: adjusts the measuring range.
• Clamp: adjustment nut
• Flatness of measuring face: 1μm
• Stability of indication: 2μm or less (stability of indicators is not included)
• The dial indicator and protection cover are optional. Also, some dial indicators and protection
covers cannot be used with the dial snap gage.
