Stainless Steel Bottle, Capacity 2 L To 10 L
- Standard Unit Price:
- ₹ 44,589.22-
- Days to Ship :
- 5 Day(s) or more
-
- Order Qty :
-
-
- Starting From :
- ₹ 44,589.22 /Unit
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
- My Components
- Similar Products
- Product Details
| Part Number |
|---|
| 2-8255-01 |
| 2-8255-02 |
| 2-8255-03 |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | Capacity | Manufacturer Product Name | Manufacturer Model | Aperture x Body Inner Diameter x Height (mm) |
JAN Code | Weight (kg) |
Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
₹ 44,589.22 |
1 Piece(s) | 5 Day(s) or more | 2L | Stainless steel bottle PSW-12 2 L | PSW-12 | φ91Xφ120X219 | 4560132182792 | 1 | 1 pc. | ||
|
₹ 52,251.65 |
1 Piece(s) | 5 Day(s) or more | 5L | Stainless steel bottle PSW-16 5 L | PSW-16 | φ91Xφ160X312 | 4560132182808 | 1.7 | 1 pc. | ||
|
₹ 59,103.11 |
1 Piece(s) | 12 Day(s) or more | 10L | Stainless steel bottle PSW-21 10 L | PSW-21 | φ91Xφ210X377 | 4560132182815 | 2.6 | 1 pc. |
| Part Number |
|---|
Basic Specifications
-
- Product Type
- Bottle
-
- Material
- Stainless Steel
-
- Specifications
- Externally and Internally Buff Ground
-
- Material Details
- Main Body: Stainless Steel (SUS304), Gasket: Soft PTFE (Ethylene Tetrafluoride)
-
- Features
- Easy to clean thanks to a wide aperture.
-
- Quantity
- 1 pc.
Product Description
Large bore metal container which makes the insertion, removal, and cleaning of contents easy.
[Features]
· Large bore enables buff polishing of the container inside and outside surfaces.
· Large bore at φ91 (diameter 91 mm) makes the insertion, removal, and cleaning of contents easy.
· The main body is made of stainless steel, and the seal is made of PTFE with excellent chemical resistance.
[Applications]
· Ideal for storing dangerous chemicals or important samples, as unlike glass it does not break.
| Part Number |
|---|
| 2-8255-01 |
| 2-8255-02 |
| 2-8255-03 |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | Capacity | Manufacturer Product Name | Manufacturer Model | Aperture x Body Inner Diameter x Height (mm) |
JAN Code | Weight (kg) |
Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
₹ 44,589.22 |
1 Piece(s) | 5 Day(s) or more | 2L | Stainless steel bottle PSW-12 2 L | PSW-12 | φ91Xφ120X219 | 4560132182792 | 1 | 1 pc. | ||
|
₹ 52,251.65 |
1 Piece(s) | 5 Day(s) or more | 5L | Stainless steel bottle PSW-16 5 L | PSW-16 | φ91Xφ160X312 | 4560132182808 | 1.7 | 1 pc. | ||
|
₹ 59,103.11 |
1 Piece(s) | 12 Day(s) or more | 10L | Stainless steel bottle PSW-21 10 L | PSW-21 | φ91Xφ210X377 | 4560132182815 | 2.6 | 1 pc. |
| Part Number |
|---|
Loading...
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer tomanufacturer catalogs.
Product Specifications
Large-Diameter, Easy-To-Clean And Easy-To-Load/Unload Metal Container
The seal part is made of PTFE, which has high chemical resistance.

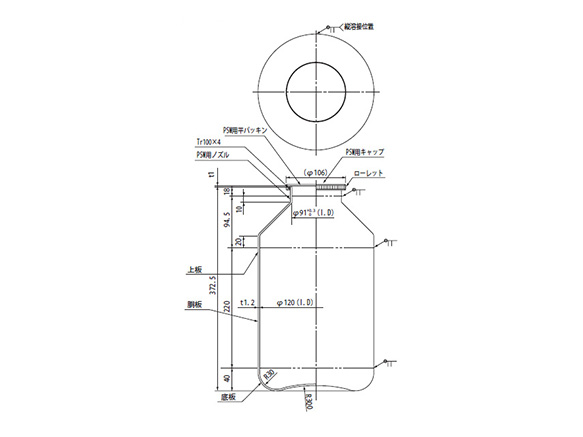

Outline Drawing And Dimensions Of Stainless Steel Bottle, 2-L To 10-L Capacity
2-L type.
5-L type.
10-L type.
