Product DetailSmall Bore End Surface Slotting Tip Bar, Model PSFG-S (Tip Bar)
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- Starting From :
- 4,118₹/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
Similar Products
Product DetailProduct Description
The MIN dimension (0) for the end face groove outer diameter øD indicates the possible expansion to the center following machining of the initial groove in the range MIN-MAX.
| Part Number |
|---|
| PSFGR0820-20S-KW10 |
| PSFGR0820-20S-PR930 |
| PSFGR0830-20S-KW10 |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | Material | W ± 0.03 (mm) |
|---|---|---|---|---|---|---|
₹ 4,173.09 | 1 Piece(s) | 5 Day(s) or more | KW10 | 2 | ||
₹ 4,118.18 | 1 Piece(s) | 5 Day(s) or more | PR930 | 2 | ||
₹ 4,269.35 | 1 Piece(s) | 5 Day(s) or more | KW10 | 3 |
Loading...

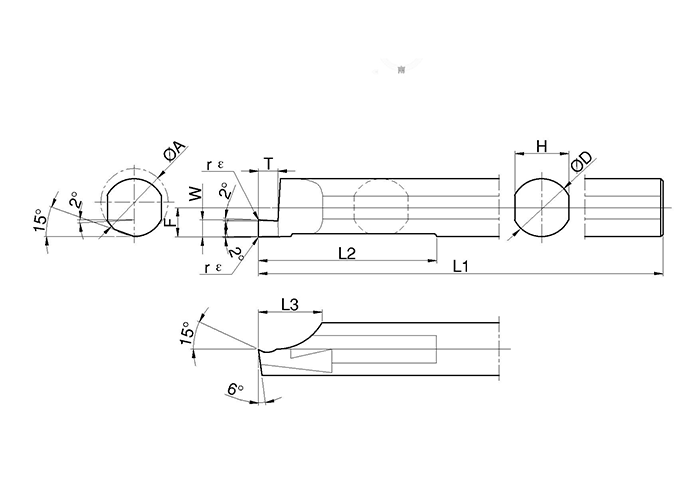

Basic Information
| Preferred Hand | Right Handed | rε(mm) | 0.05 | φD(mm) | 6.8 |
|---|---|---|---|---|---|
| φAMIN.(mm) | 8 (0) | φAMAX.(mm) | ∞ （∞） | F(mm) | 3.4 |
| H(mm) | 6.2 | L1(mm) | 80 | L2(mm) | 25.5 |
| L3(mm) | 7 | T(mm) | 2 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
