Product DetailSpecification/Dimensions
-
Outer Diameter (D)(φ)
-
Underneck length (ℓ1)(mm)
-
Chip NO.
- 3MP-C,B
- 4MP-C,B
- 6MP-C,B
-
Applicable Holder
-
shank CodeNo.
- BT40-Q9-80
- BT40-Q12-110
- BT40-Q12-80
- BT40-Q16-125
- BT40-Q16-95
- BT40-Q20-110
- BT40-Q20-80
- BT40-Q26-140
- BT40-Q26-95
- BT40-Q34-110
- BT40-Q34-95
- BT50-Q9-125N
- BT50-Q9-110
- BT50-Q12-125
- BT50-Q12-95
- BT50-Q16-155
- BT50-Q16-125N
- BT50-Q20-125
- BT50-Q20-110
- BT50-Q26-170N
- BT50-Q34-200
- BT50-Q34-170
- BT50-Q42-190
- BT50-Q42-125
-
Head CodeNO.
- 9-ZMAC20-40
- 12-ZMAC16-55
- 12-ZMAC20-40
- 12-ZMAC25-40
- 16-ZMAC32-55
- 20-ZMAC42-70
- 26-ZMAC55-70
- 34-ZMAC70-70
- 42-ZMAC85-100
- 42-ZMAC100-100
- 42-ZMAC140-100
-
Outermost diameter(mm)
-
type
- BT40
- BT50
Days to Ship
-
- All
- 7 Day(s) or Less
Specify Alterations
ZMAC Boring Bar (ZMAC)
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- Starting From :
- 47,321₹/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Similar Products
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Product Detail
Product Description
[Features]
· It can support all series high pressure coolant through.

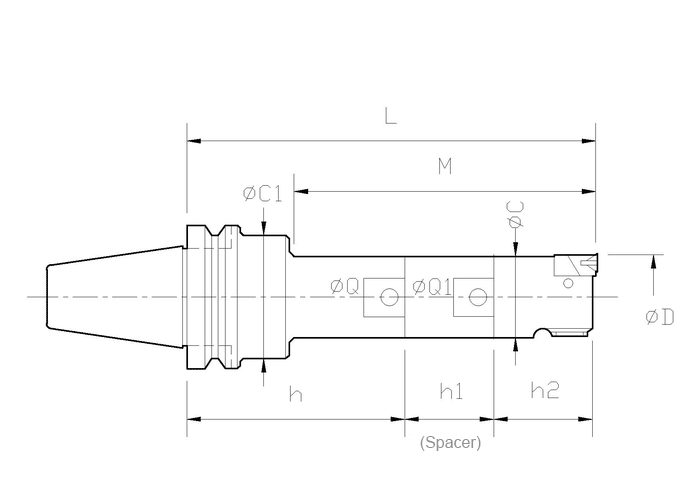

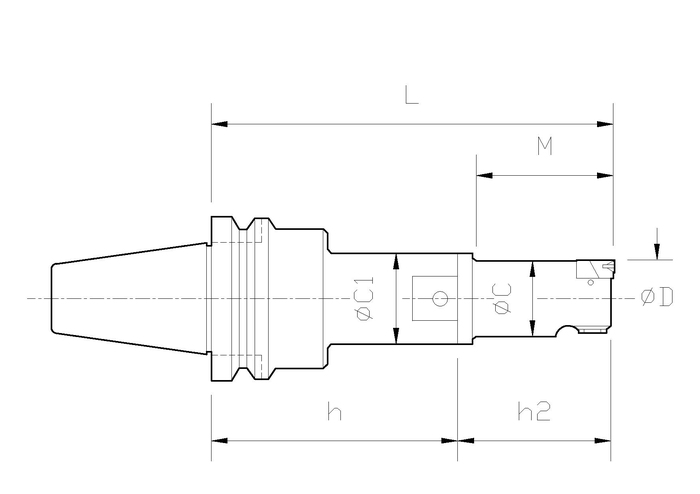

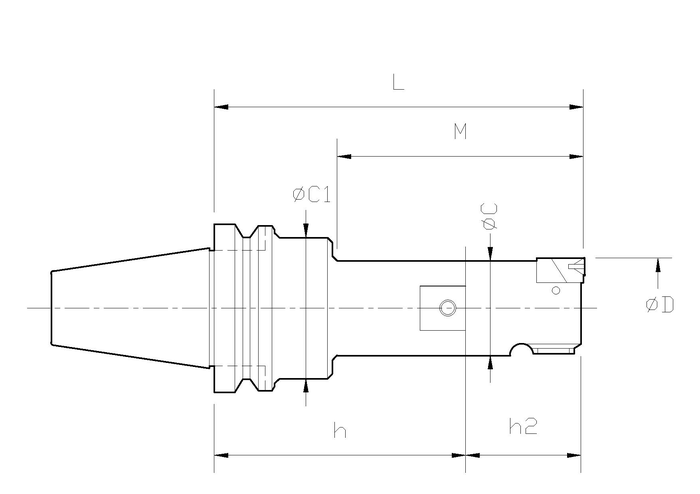

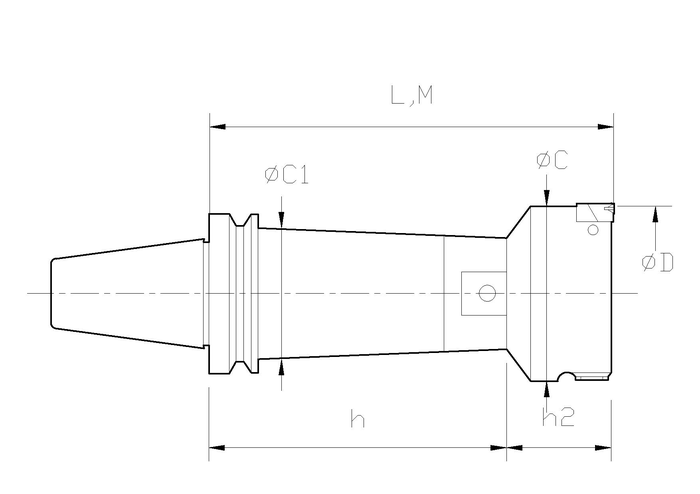

| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | Outer Diameter (D) (φ) | Underneck length (ℓ1) (mm) | Chip NO. | Applicable Holder | shank CodeNo. | Head CodeNO. | Outermost diameter (mm) | Spacer CodeNO. | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
₹ 49,636.85 | 1 Piece(s) | 7 Day(s) or more | 19.8～25.2 | 75 | 3MP-C,B | NO.40 | BT40-Q9-80 | 9-ZMAC20-40 | 19 | SP9-9-30 | 2 | ||
₹ 47,321.05 | 1 Piece(s) | 7 Day(s) or more | 24.8～32.2 | 52 | 3MP-C,B | NO.40 | BT40-Q12-80 | 12-ZMAC25-40 | 24 | - | 2 | ||
₹ 48,475.96 | 1 Piece(s) | 7 Day(s) or more | 24.8～32.2 | 90 | 3MP-C,B | NO.40 | BT40-Q12-110 | 12-ZMAC25-40 | 24 | - | 2.1 | ||
₹ 50,478.40 | 1 Piece(s) | 7 Day(s) or more | 31.8～42.2 | 77 | 4MP-C,B | NO.40 | BT40-Q16-95 | 12-ZMAC25-40 | 31 | - | 2.5 | ||
₹ 50,574.20 | 1 Piece(s) | 7 Day(s) or more | 31.8～42.2 | 110 | 4MP-C,B | NO.40 | BT40-Q16-125 | 16-ZMAC32-55 | 31 | - | 2.7 | ||
₹ 55,205.82 | 1 Piece(s) | 7 Day(s) or more | 31.8～42.2 | 122 | 4MP-C,B | NO.40 | BT40-Q16-95 | 16-ZMAC32-55 | 31 | SP16-16-45 | 2.7 | ||
₹ 51,823.56 | 1 Piece(s) | 7 Day(s) or more | 41.8～55.2 | 97 | 6MP-C,B | NO.40 | BT40-Q20-80 | 20-ZMAC42-70 | 40 | - | 3 | ||
₹ 51,919.35 | 1 Piece(s) | 7 Day(s) or more | 41.8～55.2 | 130 | 6MP-C,B | NO.40 | BT40-Q20-110 | 20-ZMAC42-70 | 40 | - | 3.2 | ||
₹ 56,694.00 | 1 Piece(s) | 7 Day(s) or more | 41.8～55.2 | 157 | 6MP-C,B | NO.40 | BT40-Q20-80 | 20-ZMAC42-70 | 40 | SP20-20-60 | 3.5 | ||
₹ 63,632.11 | 1 Piece(s) | 7 Day(s) or more | 54.8～70.2 | 135 | 6MP-C,B | NO.40 | BT40-Q26-95 | 26-ZMAC55-70 | 53 | - | 3.9 | ||
₹ 65,574.00 | 1 Piece(s) | 7 Day(s) or more | 54.8～70.2 | 180 | 6MP-C,B | NO.40 | BT40-Q26-140 | 26-ZMAC55-70 | 53 | - | 4.6 | ||
₹ 66,581.22 | 1 Piece(s) | 7 Day(s) or more | 54.8～70.2 | 195 | 6MP-C,B | NO.40 | BT40-Q26-95 | 26-ZMAC55-70 | 53 | SP26-26-60 | 4.6 | ||
₹ 66,446.11 | 1 Piece(s) | 7 Day(s) or more | 69.8～85.2 | 180 | 6MP-C,B | NO.40 | BT40-Q34-110 | 34-ZMAC70-70 | 67 | - | 5.8 | ||
₹ 68,130.53 | 1 Piece(s) | 7 Day(s) or more | 69.8～85.2 | 225 | 6MP-C,B | NO.40 | BT40-Q34-95 | 34-ZMAC70-70 | 67 | SP34-34-60 | 6.8 | ||
₹ 54,442.65 | 1 Piece(s) | 7 Day(s) or more | 15.9～20.2 | 48 | 3MP-C,B | NO.50 | BT50-Q12-95 | 12-ZMAC16-55 | 15 | - | 4.7 | ||
₹ 54,489.85 | 1 Piece(s) | 7 Day(s) or more | 19.8～25.2 | 45 | 3MP-C,B | NO.50 | BT50-Q9-110 | 12-ZMAC20-40 | 19 | - | 4.8 | ||
₹ 54,489.85 | 1 Piece(s) | 7 Day(s) or more | 19.8～25.2 | 67 | 3MP-C,B | NO.50 | BT50-Q9-125N | 12-ZMAC20-40 | 19 | - | 4.8 | ||
₹ 56,854.24 | 1 Piece(s) | 7 Day(s) or more | 19.8～25.2 | 75 | 3MP-C,B | NO.50 | BT50-Q9-110 | 12-ZMAC20-40 | 19 | SP9-9-30 | 4.9 | ||
₹ 57,411.07 | 1 Piece(s) | 7 Day(s) or more | 24.8～32.2 | 90 | 3MP-C,B | NO.50 | BT50-Q12-125 | 12-ZMAC25-40 | 24 | - | 4.8 | ||
₹ 59,775.45 | 1 Piece(s) | 7 Day(s) or more | 24.8～32.2 | 97 | 3MP-C,B | NO.50 | BT50-Q12-95 | 12-ZMAC25-40 | 24 | - | 4.9 | ||
₹ 59,657.00 | 1 Piece(s) | 7 Day(s) or more | 24.8～32.2 | 77 | 4MP-C,B | NO.50 | BT50-Q16-125N | 16-ZMAC32-55 | 31 | SP12-12-45 | 5.5 | ||
₹ 59,704.24 | 1 Piece(s) | 7 Day(s) or more | 31.8～42.2 | 110 | 4MP-C,B | NO.50 | BT50-Q16-155 | 16-ZMAC32-55 | 31 | - | 5.6 | ||
₹ 60,901.71 | 1 Piece(s) | 7 Day(s) or more | 41.8～55.2 | 97 | 6MP-C,B | NO.50 | BT50-Q20-110 | 20-ZMAC42-70 | 40 | - | 6 | ||
₹ 60,901.71 | 1 Piece(s) | 7 Day(s) or more | 41.8～55.2 | 130 | 6MP-C,B | NO.50 | BT50-Q20-125 | 20-ZMAC42-70 | 40 | - | 6 | ||
₹ 65,872.60 | 1 Piece(s) | 7 Day(s) or more | 41.8～55.2 | 157 | 6MP-C,B | NO.50 | BT50-Q20-110 | 20-ZMAC42-70 | 40 | SP20-20-60 | 6.5 | ||
₹ 69,920.05 | 1 Piece(s) | 7 Day(s) or more | 54.8～70.2 | 182 | 6MP-C,B | NO.50 | BT50-Q26-170N | 26-ZMAC55-70 | 53 | - | 7.6 | ||
₹ 73,376.02 | 1 Piece(s) | 7 Day(s) or more | 69.8～85.2 | 190 | 6MP-C,B | NO.50 | BT50-Q34-170 | 34-ZMAC70-70 | 67 | - | 10 | ||
₹ 73,662.05 | 1 Piece(s) | 7 Day(s) or more | 69.8～85.2 | 220 | 6MP-C,B | NO.50 | BT50-Q34-200 | 34-ZMAC70-70 | 67 | - | 10.6 | ||
₹ 76,074.22 | 1 Piece(s) | 7 Day(s) or more | 84.8～100.2 | 182 | 6MP-C,B | NO.50 | BT50-Q42-125 | 42-ZMAC85-100 | 83 | - | 12.5 | ||
₹ 79,677.87 | 1 Piece(s) | 7 Day(s) or more | 84.8～100.2 | 247 | 6MP-C,B | NO.50 | BT50-Q42-190 | 42-ZMAC85-100 | 83 | - | 15 | ||
₹ 82,267.71 | 1 Piece(s) | 7 Day(s) or more | 84.8～100.2 | 272 | 6MP-C,B | NO.50 | BT50-Q42-125 | 42-ZMAC85-100 | 83 | SP42-42-90 | 16 | ||
₹ 83,681.64 | 1 Piece(s) | 7 Day(s) or more | 99.5～140.5 | 225 | 6MP-C,B | NO.50 | BT50-Q42-125 | 42-ZMAC100-100 | 95 | - | 12.4 | ||
₹ 87,279.27 | 1 Piece(s) | 7 Day(s) or more | 99.5～140.5 | 290 | 6MP-C,B | NO.50 | BT50-Q42-190 | 42-ZMAC100-100 | 95 | - | 15.1 | ||
₹ 115,766.33 | 1 Piece(s) | 7 Day(s) or more | 139.5～180.5 | 225 | 6MP-C,B | NO.50 | BT50-Q42-125 | 42-ZMAC140-100 | 135 | - | 13.8 | ||
₹ 119,365.31 | 1 Piece(s) | 7 Day(s) or more | 139.5～180.5 | 290 | 6MP-C,B | NO.50 | BT50-Q42-190 | 42-ZMAC140-100 | 135 | - | 16.5 |
| Part Number |
|---|
Loading...
Basic Information
| Machining Application | Other | Mounting Method | Other | Specifications | No Oil Hole |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
