Product DetailSpecification/Dimensions
-
External diameter Dc(φ)
-
Overall Length L/Cutter Height(mm)
-
Number of flutes(sheet)
-
Hole Diameter(mm)
- 22
- 24
- 32
- 40
-
Tool No.
-
type
- F4238 SL
Days to Ship
-
- All
- 5 Day(s) or Less
Specify Alterations
F4238 SL F4000 Series Porcupine Cutter Shell Type
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- Starting From :
- 129,942₹/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
Similar Products
Product DetailProduct Description
Shell type porcupine cutter that achieves low cutting force with high helix inserts. The body is given a special surface treatment to improve corrosion resistance.
| Part Number |
|---|
| F4238SL-50XSL |
| F4238SL-63XSL |
| F4238SL-80XSL |
| F4238SL-100XSL |

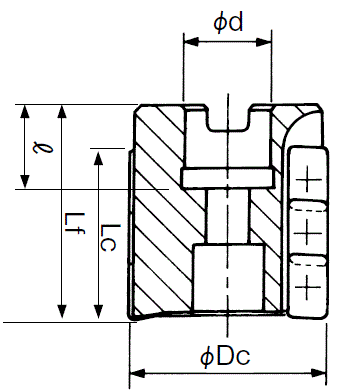

| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | External diameter Dc (φ) | Overall Length L/Cutter Height (mm) | Number of flutes (sheet) | Hole Diameter (mm) | Tool No. | Blade Length Lc (mm) | Mounting Hole Height ℓ (mm) | Number of tips for use |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
₹ 129,941.65 | 1 Piece(s) | 5 Day(s) or more | 50 | 60 | 3 | 22 | 8075907 | 43 | 21 | 9 | ||
₹ 144,357.55 | 1 Piece(s) | 5 Day(s) or more | 63 | 70 | 4 | 24 | 8075908 | 43 | 28 | 12 | ||
₹ 164,844.93 | 1 Piece(s) | 5 Day(s) or more | 80 | 85 | 5 | 32 | 8075909 | 57 | 28 | 20 | ||
₹ 237,686.53 | 1 Piece(s) | 5 Day(s) or more | 100 | 85 | 6 | 40 | 8075910 | 57 | 30 | 24 |
Loading...
Basic Information
| Machining Application | Side | work material | General steel / High hardness steel / Stainless Steel / Cast Iron / Aluminum / Titanium | Mounting Method | Arbor |
|---|---|---|---|---|---|
| Finish category | Finishing | Compatible Tip Material | Carbide Coat / No Carbide Coat | Applicable Chip | ADMT160608R-D56/ADMT160608R-F56/ADMT160608R-G56/ADGT1606PER-D56/ADKT1606PER-F56/ADHT1606PER-G88 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
