LC Series Handheld Plastic Case
Caution
Product Description
New at MISUMI? Get 20% Discount on your First Purchase. Click to Register Now
Handheld-type tapered case that can be used in a variety of applications.
[Features]
· Handheld case with a smart tapered design.
· 8 types of battery configurations.
· Case is made from flame-retardant ABS resin (UL94V-0).
· Marked with + and - to show battery orientation.
· Usable temperature range: -10°C to +60°C
[Applications]
· Can be used for various types of hand-held devices, such as industrial measuring instruments, measuring devices, inspection devices, communications devices and medical instruments.
Hand-Held Plastic Case with A Smart, Tapered Design
Product Configuration
With battery compartment.
No battery compartment.
| Reference No. | Name | No. Of Pcs | Material | Color/Surface Treatment |
|---|---|---|---|---|
| 1 | Top Cover | 1 | Flame Retardant ABS (UL94V-0) | Off-White Or Dark Gray/Textured |
| 2 | Bottom Cover | 1 | Flame Retardant ABS (UL94V-0) | Off-White Or Dark Gray/Textured |
| 3 | Panel | 1 | Flame Retardant ABS (UL94V-0) | Off-white Or Dark Gray/Textured |
| 4 | Mounting Screw | 4 | Steel (M2.6 Tapping) | Nickel Plating / Black Trivalent Chromate |
| 5 | Battery Cover | 1 | Flame Retardant ABS (UL94V-0) | Off-white Or Dark Gray/Textured |
| 6 | Battery Contact / Battery Snap | 1 Set | Brass/Brass Or PVC | Nickel Plating |
Drawings of External Dimensions
LC115/LC135/LC165
LC115H/LC135H/LC165H
8 Types of Battery Compartment Configurations
Color Specification
| Color Code | Top Cover | Bottom Cover | Panel | Battery Cover |
|---|---|---|---|---|
| D Type | Dark Gray | Dark Gray | Dark Gray | Dark Gray |
| W Type | Off-White | Off-White | Off-White | Off-White |
*Place a D (dark gray) or W (off-white) color specification in the box.
| Part Number | W | H | D | a | b | c | d | e | f | Battery Compartments | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LC115-N-□ | 69 | 19.5 | 115 | 54 | 100 | 48.1 | 12 | 10 | 9 | No Battery | 70 |
| LC115-F2-□ | 69 | 19.5 | 115 | 54 | 100 | 48.1 | 12 | 10 | 9 | AAA Battery × 2 | 74.5 |
| LC115-F3-□ | 69 | 19.5 | 115 | 54 | 100 | 48.1 | 12 | 10 | 9 | AAA Battery × 3 | 76.5 |
| LC115H-N-□ | 69 | 28 | 115 | 54 | 100 | 48.1 | 20.5 | 18.5 | 9 | No Battery | 80 |
| LC115H-F2-□ | 69 | 28 | 115 | 54 | 100 | 48.1 | 20.5 | 18.5 | 9 | AAA Battery × 2 | 84.5 |
| LC115H-F3-□ | 69 | 28 | 115 | 54 | 100 | 48.1 | 20.5 | 18.5 | 9 | AAA Battery × 3 | 86 |
| LC115H-M2-□ | 69 | 28 | 115 | 54 | 100 | 48.1 | 20.5 | 18.5 | 9 | AA Battery × 2 | 88.5 |
| LC115H-9V-□ | 69 | 28 | 115 | 54 | 100 | 48.1 | 20.5 | 18.5 | 9 | 006P × 1 | 88 |
| LC135-N-□ | 76 | 27 | 135 | 58 | 117 | 55.1 | 19.5 | 13.5 | 13 | No Battery | 95 |
| LC135-F4-□ | 76 | 27 | 135 | 58 | 117 | 55.1 | 19.5 | 13.5 | 13 | AAA Battery × 4 | 110 |
| LC135-M2-□ | 76 | 27 | 135 | 58 | 117 | 55.1 | 19.5 | 13.5 | 13 | AA Battery × 2 | 108 |
| LC135-M3-□ | 76 | 27 | 135 | 58 | 117 | 55.1 | 19.5 | 13.5 | 13 | AA Battery × 3 | 113.5 |
| LC135-9V-□ | 76 | 27 | 135 | 58 | 117 | 55.1 | 19.5 | 13.5 | 13 | 006P × 1 | 111.5 |
| LC135H-N-□ | 76 | 35 | 135 | 58 | 117 | 55.1 | 27.5 | 21.5 | 13 | No Battery | 107.5 |
| LC135H-F4-□ | 76 | 35 | 135 | 58 | 117 | 55.1 | 27.5 | 21.5 | 13 | AAA Battery × 4 | 122 |
| LC135H-M2-□ | 76 | 35 | 135 | 58 | 117 | 55.1 | 27.5 | 21.5 | 13 | AA Battery × 2 | 121 |
| LC135H-M3-□ | 76 | 35 | 135 | 58 | 117 | 55.1 | 27.5 | 21.5 | 13 | AA Battery × 3 | 126 |
| LC135H-9V-□ | 76 | 35 | 135 | 58 | 117 | 55.1 | 27.5 | 21.5 | 13 | 006P × 1 | 123.5 |
| LC165-N-□ | 80 | 27 | 165 | 62 | 147 | 59.1 | 19.5 | 13.5 | 13 | No Battery | 120.5 |
| LC165-M4-□ | 80 | 27 | 165 | 62 | 147 | 59.1 | 19.5 | 13.5 | 13 | AA Battery × 4 | 140 |
| LC165H-N-□ | 80 | 35 | 165 | 62 | 147 | 59.1 | 27.5 | 21.5 | 13 | No Battery | 134.5 |
| LC165H-M4-□ | 80 | 35 | 165 | 62 | 147 | 59.1 | 27.5 | 21.5 | 13 | AA Battery × 4 | 153.5 |
*When ordering, add the color code to the end of the part number.
Related Products
Cable Gland (M Screw/PG Screw)
MISUMI cable glands that do not loosen even when subjected to vibration.

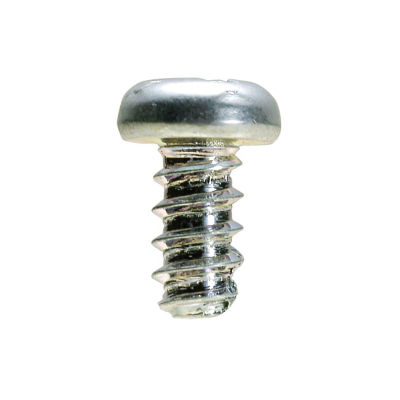

EM Series Tapping Screws for Fixing in Place (Pack of 50)
