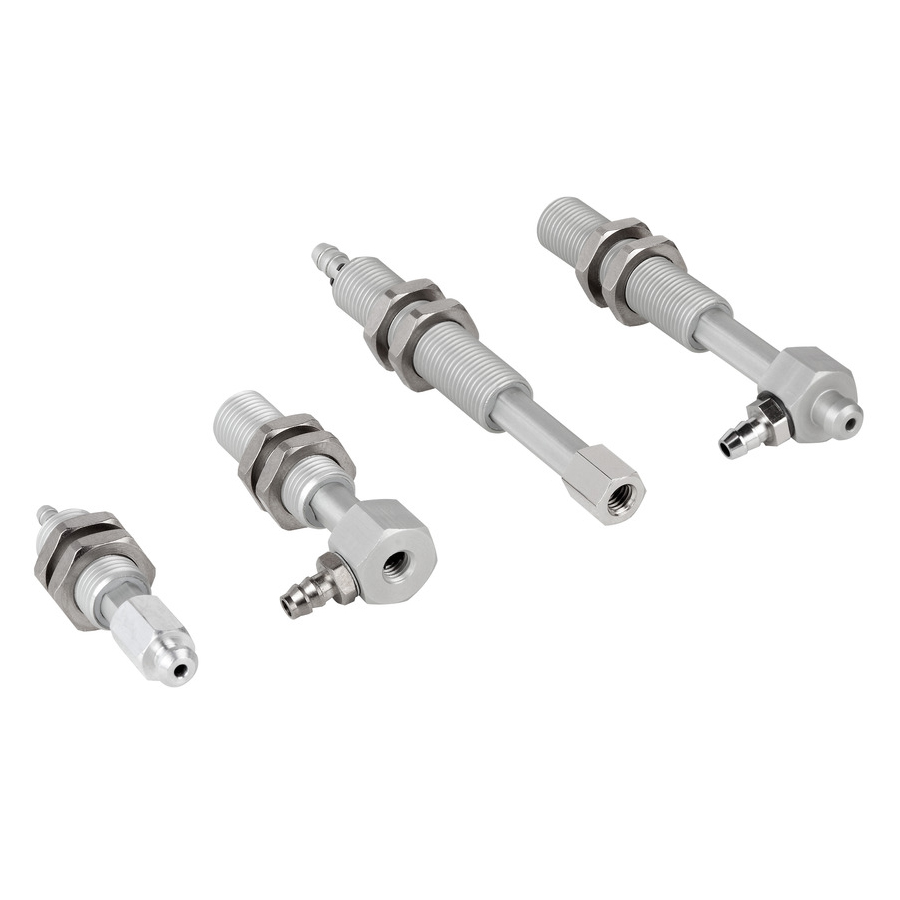

Spring Plungers FSTIm

Brand :
Schmalz

Caution

    Product Description

    Compact spring plunger with internal damping spring for handling workpieces with height differences or curvatures.
    Handling of very sensitive workpieces (e.g. printed circuit boards) without additional control expenses; ensures gentle placement.
    Handling tasks in the electronics industry.
    Suitable for cleanroom applications – depending on the application and the loading case, up to cleanroom class ISO1 (according to ISO 14644‑1).

    FSTIm M3-IG, M5-IG A
    Part NumberOrdering Codedn
    mm    		G1G2Thread G3H
    mm    		H2
    mm    		LG1
    mm    		LG2
    mm    		LG3
    mm    		SW1
    mm    		SW2
    mm    		Z (Stroke)
    mm
    10.01.02.01480FSTIm M5-IG M5-IG A 5 IN2.0M5-FM5-FM10x1-M42.414.04.54.5191485
    10.01.02.01485FSTIm M5-IG M5-IG A 5 VG-IN2.0M5-FM5-FM10x1-M42.414.04.54.5191485
    10.01.02.01474FSTIm M5-IG M5-IG A 10 IN2.0M5-FM5-FM10x1-M54.419.04.54.52614810
    10.01.02.01482FSTIm M5-IG M5-IG A 10 VG-IN2.0M5-FM5-FM10x1-M54.419.04.54.52614810
    10.01.02.01477FSTIm M5-IG M5-IG A 20 IN2.0M5-FM5-FM10x1-M79.429.04.54.54114820
    10.01.02.01483FSTIm M5-IG M5-IG A 20 VG-IN2.0M5-FM5-FM10x1-M79.429.04.54.54114820
