Product Detail
Product Description
[Features]

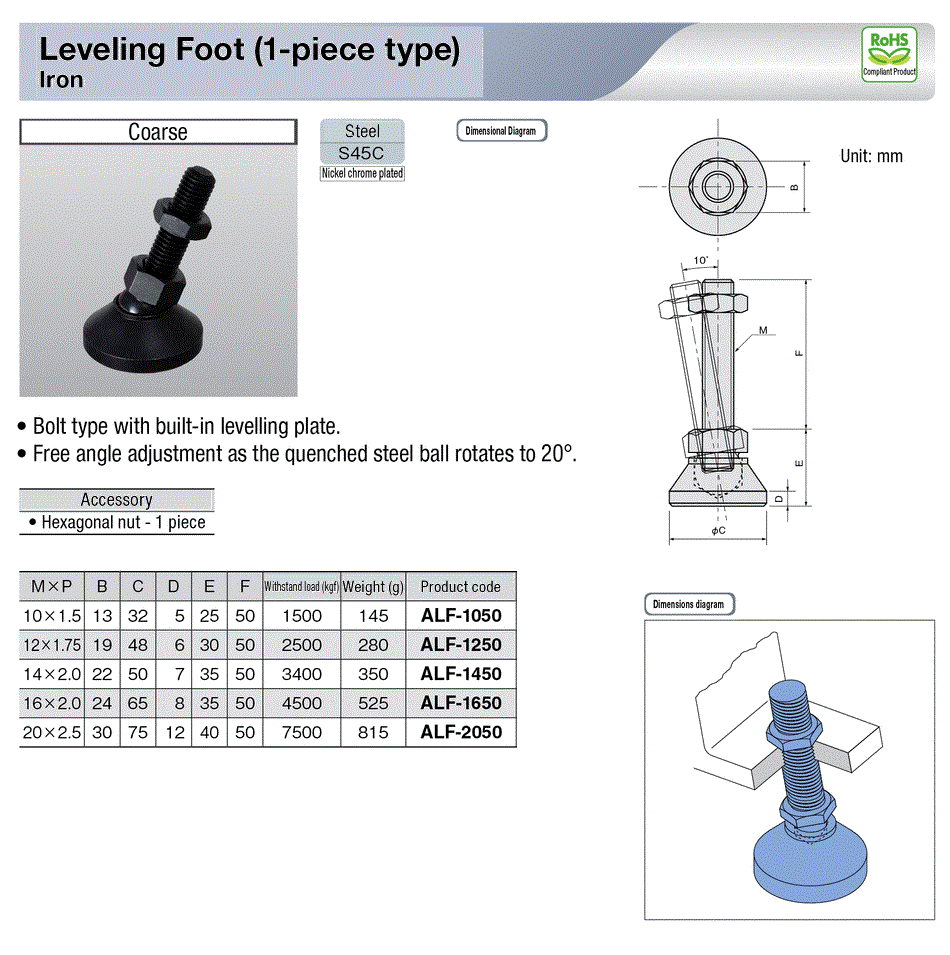

· A type in which an adjustment bolt and leveling plate are integrated.
· Since a hardened steel ball rotates 20°, the adjustment angle is flexible.
· Can be used to support level adjustments for heavy machinery from the bottom up.
| Part Number |
|---|
| ALF-1050 |
| ALF-1250 |
| ALF-1450 |
| ALF-1650 |
| ALF-2050 |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | RoHS | Width W (mm) | Allowable Load (kN) | Thread Length L1 (mm) | Height Adjustment Value L2 (mm) | Main Body Height E (mm) | Nominal of Thread M (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
₹ 2,601.27 | 1 Piece(s) | 9 Day(s) or more | 10 | 32 | 14.71 | 58 | 44 | 75 | 10 | ||
₹ 3,013.82 | 1 Piece(s) | 9 Day(s) or more | 10 | 48 | 24.517 | 60 | 43 | 80 | 12 | ||
₹ 4,716.18 | 1 Piece(s) | 9 Day(s) or more | 10 | 50 | 33.343 | 61 | 42 | 85 | 14 | ||
₹ 5,221.13 | 1 Piece(s) | 9 Day(s) or more | 10 | 65 | 44.13 | 63 | 40 | 85 | 16 | ||
₹ 6,324.80 | 1 Piece(s) | 9 Day(s) or more | 10 | 75 | 73.55 | 66 | 38 | 90 | 20 |
| Part Number |
|---|
Loading...
Basic Information
| Type | Adjusting Bolt Shape | Adjusting Bolt Shape Type | Standard | Swivel Angle θ(deg) | 20 |
|---|---|---|---|---|---|
| Height Adjusting Handle | No | Thread Material | S45C | Thread Surface Treatment | Black oxide finish |
| Body Material | S45C | Main Body Surface Treatment | Black oxide finish | Properties | Standard |
| Swivel Mechanism | Presence |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
