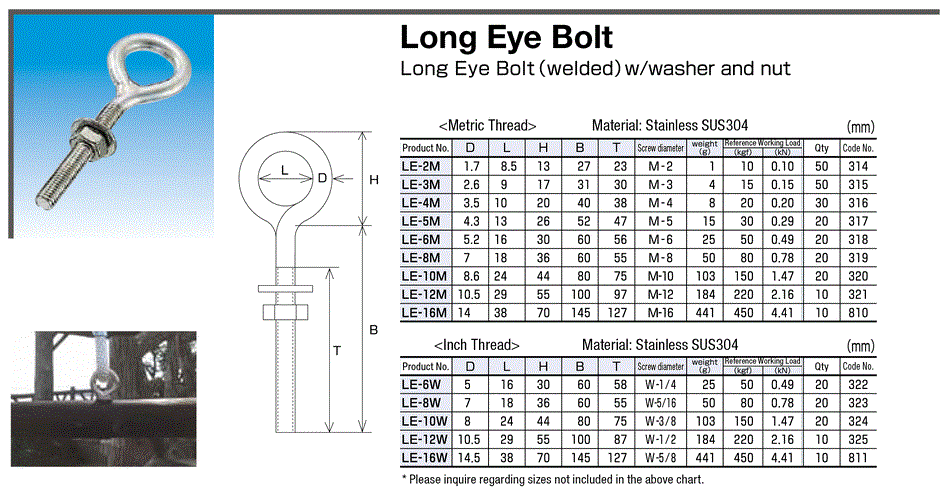

Long Eye Bolt
Move the mouse over or click the image to zoom
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- Starting From :
- 237₹/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
Japanese Only
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Similar Products
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Product Detail
Product Description
The neck part is long, so it can be used for thick items.
Move the mouse over or click the image to zoom
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- Starting From :
- 237₹/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
Japanese Only
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Similar Products
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Product Detail
| Part Number |
|---|
| LE-3M |
| LE-4M |
| LE-5M |
| LE-6M |
| LE-8M |
| LE-10M |
| LE-10W |
| LE-12M |
| LE-16M |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | Twist Diameter (M screw) | Pitch (mm) | Thread Type | Twist Diameter (inch) | Reference Applied Load (kgf) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|
₹ 237.24 | 1 Piece(s) | 5 Day(s) or more | 3 | 0.5 | Metric coarse | - | 15 | 315 | ||
₹ 270.91 | 1 Piece(s) | 5 Day(s) or more | 4 | 0.7 | Metric coarse | - | 20 | 316 | ||
₹ 323.13 | 1 Piece(s) | 5 Day(s) or more | 5 | 0.8 | Metric coarse | - | 30 | 317 | ||
₹ 357.69 | 1 Piece(s) | 5 Day(s) or more | 6 | 1 | Metric coarse | - | 50 | 318 | ||
₹ 515.84 | 1 Piece(s) | 5 Day(s) or more | 8 | 1.25 | Metric coarse | - | 80 | 319 | ||
₹ 669.85 | 1 Piece(s) | 5 Day(s) or more | 10 | 1.5 | Metric coarse | - | 150 | 320 | ||
₹ 669.85 | 1 Piece(s) | 5 Day(s) or more | - | 1.587 | Screw for pipes | 3/8 | 150 | 324 | ||
₹ 1,202.78 | 1 Piece(s) | 5 Day(s) or more | 12 | 1.75 | Metric coarse | - | 220 | 321 | ||
₹ 1,945.62 | 1 Piece(s) | 5 Day(s) or more | 16 | 2 | Metric coarse | - | 450 | 810 |
| Part Number |
|---|
Loading...
Basic Information
| Material | Stainless SUS304 | Surface Treatment | No | Sales Unit | Low Quantity (can be purchased from one) |
|---|---|---|---|---|---|
| Tip Shape | Flat End | Application | Standard | Screw Type | Half Thread |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
