Plastic Terminal Block Box, BOXTC Series
Move the mouse over or click the image to zoom
- IP65
- Plastic
You can add up to 6 items per a category to the compare list.
Brand :
Part Number :
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- Starting From :
- 1,358₹/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
· The box and terminal block are integrated, making it compact and lightweight.
· It can be used as the relay box in a section where the thickness or type of the wire for the output of solenoid valves or input of sensors changes.
(i)
Caution
- This product will be discontinued in January 2022. Depend on stock status, the end time will be changed.
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Similar Products
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Product Detail
Product Description
4-pole and 6-pole model terminal block box
Specifications
| Part Number | Number of Terminal Block Poles | Self Weight (g) |
| BOXTC4 | 4 | 64 |
| BOXTC6 | 6 | 78 |
More Information
Specifications
| Rated Voltage | AC/DC250V |
| Rated Current | 15A |
| Insulation Resistance | 100 MΩ or more (500 VDC) |
| Withstand Voltage | 2000 VAC, 1 minute |

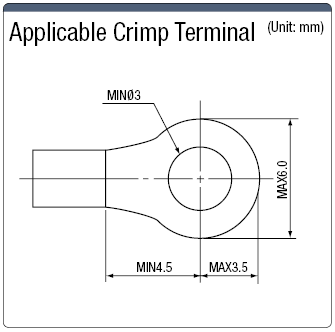

| Applicable Wire | 1.25mm2MAX |
| Standard Tightening Torque | 1.2 N·m |
| Protective Structure | IP65 |
| Compatible Cable Finish Diameter | Ø3.5 mm ~ Ø7.3 mm |
| Operating Temperature Range | -25°C ~ + 60°C |
| Body Color | Light Beige 5Y7/1 |
Components

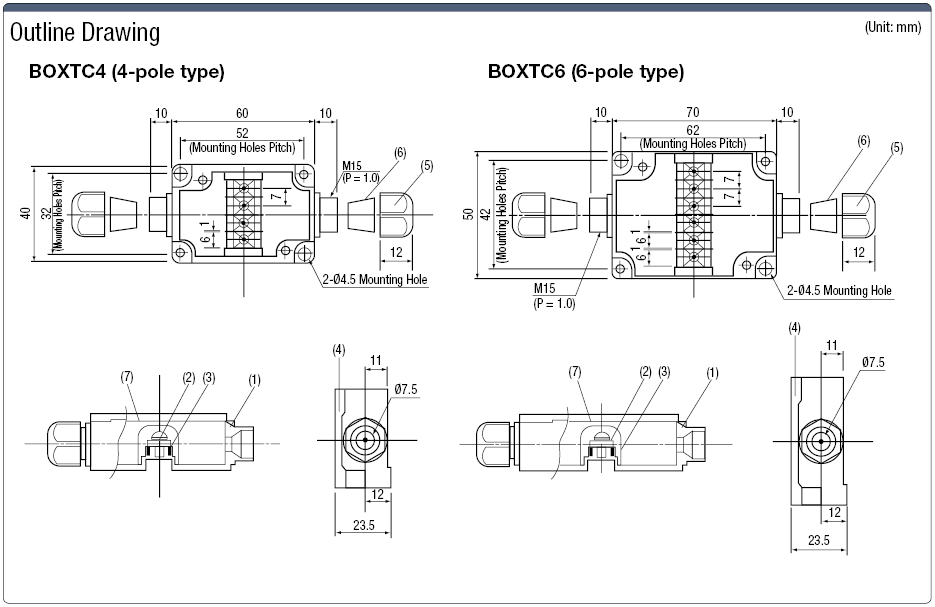

| No. | Product Name | Material | Dimension | Surface Treatment | Remarks |
| (1) | Box Body | Nylon 6 | - | - | UL94V-2 |
| (2) | Terminal Screw | SWRM | M3 x 8 | Ni | 3-Point Free Terminal Screw |
| (3) | Conductive Metal Fittings | C2680R | Thickness 0.8 | Sn | - |
| (4) | Lid | PBT | - | - | UL94V-0 |
| Fixing Screws | C3604B | M3 x 14 | Ni | - | |
| Fixing Nuts | C3604BD | M3 | Ni | - | |
| (5) | Cap | Nylon 6 | - | - | - |
| (6) | Rubber Sleeve | NBR | - | - | Ø5.3, Ø7.5 (2 pcs each) |
| (7) | Packing | NBR | Thickness 0.5 | - | - |
Basic Information
| Dimension depth D(mm) | 23.5 | Material | Resin | Protection function (environmentally resistant) | IP65 |
|---|---|---|---|---|---|
| Intermediate plate | Without Board | Installation | Indoor | Locking type | 4-Point Screw-Fastened Model |
| Color | Light Beige 5Y7/1 | Rated voltage(V) | AC / DC250 | Rated current(A) | 15 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
