Safety Door Switch Installation Accessories
Brand :
MISUMI
Caution
Product Description
Product Overview
Safety door locks, safety door keys, and installation bolts—better value when purchased as a set
Dimensional Drawing
E-MSMSKF10-LK (kit includes T type key) |
* The mounting holes are compatible with the Omron D4NS series. Please pay attention to actual installation tolerances.

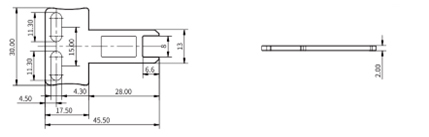

Operating key model
E-MSMD2-K1  T type E-MSMD2-K2  L type |
Specification Overview
| Safety Door Latch Models | Shape | Mounting method | Included items | Material |
| E-MSMSKF10-LK |  | Left and right swing door mounting | 1. Slide key body: 1 piece (key not installed) 2. Mounting plate: 1 piece 3. Horizontal mounting key E-MSMD2-K1: 1 piece 4. Locking key: 2 pieces 5. Fixing screws for latch base: M6*16 mm*6pcs 6. Fixing screws with flat washer and spring washer for key adapter: M5*16 mm*2pcs 7. Key fixing screws: M4*8*2pcs 8. Door lock fixing screws: M4*35 mm*4pcs 9. Lock hole fixing screws: M6*12 mm*2pcs | Safety door lock material: PA66 Operating key material: SUS201 |
| Operating key model | Shape | Mounting method | Material |
| E-MSMD2-K1 | T type | Horizontal installation | Operating key material: SUS201 |
| E-MSMD2-K2 | L type | Vertical installation |
