Area Sensor, Side-Mounted Type

Brand :

MISUMI

Caution

Product Description

Front-illuminated, space-saving design with a thickness of only 15 mm. Easy to align with light. Light-resistant, strong electromagnetic interference resistance, low power consumption design for faster response time. · Ultra-thin size, dimensions only 19*15 mm · Short response time, fastest response time < 1 ms · Wide voltage supply DC24±20% · Strong anti-electromagnetic interference capability, effectively resists various electromagnetic interference from motor equipment · Uses line synchronization technology, strong resistance to light interference · Easy installation, simple operation

Product Overview

Economy Side Detection Ultra-thin Area Sensor
Front-emitting, space-saving design, only 15 mm thick. Easy to align with light. Light-resistant, strong electromagnetic interference resistance, low power consumption design for faster response time.

Dimensional Drawing

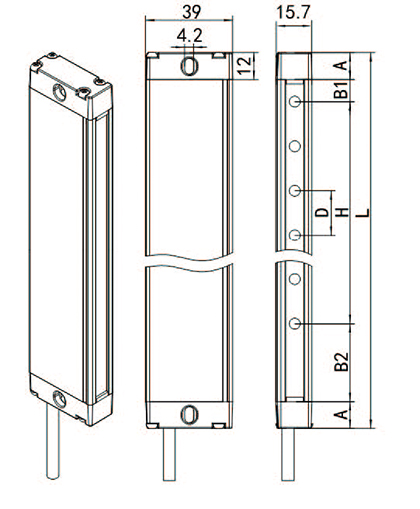

■ Product Drawings (Unit: mm)

Body

Economy Ultra-Thin Area Sensor

Correspondence Table of Shaft Spacing and Grating Blind Spots
Shaft Spacing D	Upper Blind Spot B1	Lower Blind Spot B2
10 mm	5 mm	5 mm
20 mm	5 mm	15 mm
40 mm	5 mm	15 mm

Part number	Item Size
A	Upper and Lower End Covers
B1	Upper Blind Zone
B2	Lower Blind Spot
D	Shaft Spacing (10 mm/20 mm/40 mm)
H	Protection Height
L	Total Height

A upper and lower end cap size is 12 mm
When D size is 10 mm:
B1 size is 5 mm; B2 size is 5 mm.
When the D dimension is 20 mm:
B1 size is 5 mm; B2 size is 15 mm.
When the D dimension is 40 mm:
B1 size is 5 mm; B2 size is 15 mm.
L is the total height of the area sensor:
L = Upper and lower end cover height + Upper and lower blind spots + Protection height
H is the protection height of the area sensor:
H = (Number of shafts - 1) × Shaft pitch

Specification Overview

■ Specifications and Performance

Item	Types	Shaft Spacing (10 mm)	Shaft Spacing (20 mm)	Shaft Spacing (40 mm)
	Part number	E-MSSGL10	E-MSSGL20	E-MSSGL40
Protection Height		70 to 1560 mm
Casing Dimension		39 × 15 mm
Detection Distance		0.1 to 2 m
Shaft Spacing		10/20/40 mm
Infrared Wavelength		940 nm
Synchronization Method		Line Synchronization
Max. Power		≤ 5W
Response Time		< 5 ms
Power Supply Voltage		24 V DC ±20%
Safe Output (OSSD)		PNP transistor output: Load current ≤ 200 mA, residual voltage ≤ 1 V (excluding voltage drop caused by cable extension), leakage current ≤ 1 mA; NPN transistor output: Load current ≤ 200 mA, residual voltage ≤ 1 V (excluding voltage drop caused by cable extension), leakage current ≤ 1 mA.
Enclosure Protection Rating		IP 54
Operating Temperature		-10 to 55°C (no condensation)
Storage Temperature		-20 to 70°C
Relative Humidity		15% to 85%
Case Material		Aluminum
Light Interference Resistance		10000Lux (Incidence Angle I > 5°)
Connection Method		Lead Wire Type (2 m)

Part Number		Number of Shafts	Output Type	Detection Height H (mm)	Component Dimension	Total Height L (mm)
Type	Shaft Spacing D (mm)	Number of Shafts	Output Type	H=(—1) ×	Component Dimension	L=2xA+B1+B2+H
E-MSSGL	10	8 to 100	N(NPN Output)/ P(PNP Output)	70 to 990	A: 12 mm, B1:5 mm, B2:5 mm	104 to 1024
	20	4 to 50		60 to 980	A: 12 mm, B1:10 mm, B2:10 mm	104 to 1024
	40	4 to 40		120 to 1560	A: 12 mm, B1:10 mm, B2:30 mm	164 to 1604

Type	Shaft Spacing	Number of Optical Axes	Output Type	Detection Height (mm)	Total height (mm)
Type	D	Number of Optical Axes	Output Type	H	L
E-MSSGL	10	8	NPN: N PNP: P	70	104
		12		110	144
		16		150	184
		20		190	224
		24		230	264
		28		270	304
		32		310	344
		36		350	384
		40		390	424
		44		430	464
		48		470	504
		52		510	544
		56		550	584
		60		590	624
		64		630	664
		68		670	704
		72		710	744
		76		750	784
		80		790	824
		84		830	864
		88		870	904
		92		910	944
		96		950	984
		100		990	1024
	20	4		60	104
		6		100	144
		8		140	184
		10		180	224
		12		220	264
		14		260	304
		16		300	344
		18		340	384
		20		380	424
		22		420	464
		24		460	504
		26		500	544
		28		540	584
		30		580	624
		32		620	664
		34		660	704
		36		700	744
		38		740	784
		40		780	824
		42		820	864
		44		860	904
		46		900	944
		48		940	984
		50		980	1024
	40	4		120	164
		6		200	244
		8		280	324
		10		360	404
		12		440	484
		14		520	564
		16		600	644
		18		680	724
		20		760	804
		22		840	884
		24		920	964
		26		1000	1044
		28		1080	1124
		30		1160	1204
		32		1240	1284
		34		1320	1364
36		1400	1444
38		1480	1524
40		1560	1604

■ Output Circuit Diagram
NPN Wiring Diagram
Economy Ultra-Thin Area Sensor

No.	Wire Color	Transmitter	Receiver	Wiring
1	Brown	+24 V	+24 V	Power Supply+
2	Blue	0V	0V	Power Supply -
3	Grey	For Communication Use	For Communication Use	Transmitter and Receiver Interconnection
4	Black	NPN/PNP Output	NPN/PNP Output	Load Input

■ Area Sensor Operating Status

Grating Operating Status		Receiver Indicator Light	Transmitter Indicator Light
Normal Status	Optical Transmission	Green Light - Always On	Green Light - Always On
Normal Status	Light Blocking	Red Light - Steady On	Green Light - Always On
Abnormal Status	CP wiring abnormal/ CP fault	Red light flashing (2 Hz)	Red light flashing (1 Hz)
	CP Overcurrent	/	Red light flashing (4 Hz)
	Overvoltage	/	Green light flashing (4 Hz)
	Undervoltage	/	Green light flashing (0.5 Hz)
	Not Powered On/Power Failure	Red/Green Light Off	Red/Green Light Off

Product Features

· Ultra-thin size, overall dimensions are only 39*15 mm
· Short response time, fastest response time <1 ms
· Wide voltage supply DC24±20%
· Strong anti-electromagnetic interference capability, effectively resists various electromagnetic interference from motor equipment
· Uses line synchronization technology, strong resistance to light interference
· Easy installation, simple operation

Precautions

Precautions for use

◆ When installing, removing, or servicing sensors and cables in the area, please turn off the power first and have a professional perform the operation.
◆ Before each use, you must check whether the area sensor is properly controlling the equipment.
◆ Do not arbitrarily change the position of the protective area sensor during use.
◆ After changing the mold or jig, the safety distance and installation position of the protective area sensor must be adjusted by authorized personnel.
◆ During use, be careful not to let workpieces, tools, waste materials, etc. collide with the area sensor, its connector, or cables.

Identification of Area Sensor and Device Failures

Failure Phenomenon	Cause of Failure	Solution
The grating is not working, and none of the indicator lights are on.	No Power Voltage	Check if the power supply is properly connected and if the wiring is loose
Receiver OSSD output signal intermittently on and off (or red and green indicator lights flashing alternately)	Poor contact at transmission line connection	Tightening Transmission Line Terminal Wire Screw
	Poor optical grating alignment	Readjust for proper alignment
	Poor grounding or ground wire interference	Reliable grounding or interference elimination ground
	The light-transmitting surface of the grating has oil stains or damage, etc.	Clean the optical surface or replace the filter
The receiver indicator light switches normally, but the device does not work	The connection between the grating output signal line and the machine is disconnected	Reconnect the wiring and ensure it is secure
	Mechanical/Electrical Failure	Maintenance of Mechanical and Electrical Equipment
	Grating Fault	Replacement or Repair
Receiver red indicator light: on, off, flashing	CP synchronous cable not synchronized	Check if the CP sync cable is properly connected
Receiver red indicator light: on, off, flashing	Grating Fault	Replacement or Repair

How to Use
User Manual Download Link:
https://www.misumi.com.cn/linked/archive/me/110311203749/Usermanual.zip

■About Installation
(1) Bracket Installation
Standard Mounting Bracket

(2) Usage and Installation
Correct Installation Method

Incorrect mounting method

Precautions for Adjacent Installation

When two or more sets of area sensor devices are installed close to each other, mutual interference between the area sensor devices can easily occur. As shown in Figure 3-1, the infrared light emitted by the transmitter unit of Product (1) may affect the receiver unit of Product (2) . This may interfere with the protective function of product (2), which means that operators may be at risk. Therefore, please install according to Figure 3-2. Avoid installing sensors for adjacent areas on the same side without a light-blocking partition, as the light emitted by the transmitter may easily reach the receiver of a neighboring set.

Diagram of mutual interference between Transmitter (1) and Transmitter (2)

Installation position diagram to prevent mutual interference between area sensors

Correct installation position in the presence of reflective objects

If there are objects with smooth reflective surfaces around the area sensor device, such as metal plates, floors, ceilings, workpieces, covers, partitions, glass plates, etc., the installation position of the area sensor should be more than A (m) away from the reflective surface. The value of A can be obtained by calculation formula or found in coordinate chart 4-2. As shown in Figure 4-1, the cone has an aperture angle α, which is formed between the optical axis and the light beam located at the edge of the optical cone. Where α = the aperture angle of the light beam, L = the distance between the emitter and receiver, and L

Diagram of Reflective Object Interference

A (m) = L × tanα = L × 0.0875 (α = 5°)

Protection Length L (m)	Maximum distance A (m) not available
0.3 to 2 m	0.175 m

Installation Position Diagram Showing How Reflective Objects Affect Area Sensors
