Economy Fiber Unit + Fiber Amplifier Set

Brand :
MISUMI

Caution

    Product Description

    Bundle purchase for a better price

    Product overview

    The optical fiber is composed of a core in the center and an outer metal part with a lower refractive index.
    If light enters the core, it will repeatedly undergo total reflection at the boundary with the outer metal part as it travels forward. Light emitted from the end face travels through the inside of the optical fiber.
    The beam spreads at an angle of approximately 60° and illuminates the detection object.

    Product overview

    Through-beam typeThrough-beam typeReflection typeReflection type

    ■ Input/output circuit diagram


    · NPN input/output circuit diagram

    Tr: NPN output transistor
    ZD: Zener diode for surge voltage absorption
    D: Diode for power supply/output reverse connection protection
    · PNP input/output circuit diagram

    Tr: PNP output transistor
    ZD: Zener diode for surge voltage absorption
    D: Diode for power supply/output reverse connection protection


    ■ Function introduction



    Dimensional drawing

    ■ Amplifier
    Available for single sales >> here, instruction manual >> please download from here.

    ModelSensitivity settingOutput typeLight emitting sourceSwitch mode
    E-MSMFA11-2MManual/automaticNPN type4-element red
    light emitting diode    		NO/NC
    configurable
    E-MSMFA41-2MPNP type



    ■ Fiber optic sensor, screw/cylindrical mounting type ⇒ For details, see here

    Used for detection of thin type transparent workpieces

    		The indicated detection distance value applies when using the fiber optic amplifier E-MSMFA11/41.
    ModelSpecificationShape
    (mm)    		Detection distance (mm)
    		Mounting screwOptical fiber outer diameter
    (mm)    		Optical axis diameter
    (mm)    		Bending radius
    (mm)    		Optical fiber cable specification
    E-MSMT11RThrough-beam typeM4×P0.7⌀2.2⌀1R25Parallel through-beam type
    E-MSMT11NM4×P0.7
    (90°)    		16×⌀0.25Multi-core through-beam type
    E-MSMFU71M6×P0.75⌀1Parallel through-beam type
    E-MSMFU58U⌀1⌀1⌀0.5R10Parallel through-beam type
    E-MSMFU5F⌀3⌀2.2⌀1R25Parallel through-beam type
    E-MSMC31M
    (Focusing lens can be installed)    		Reflection typeM3×P0.5⌀12×⌀0.5R15Parallel reflection type
    E-MSMC31N
    (Focusing lens can be installed)    		M3×P0.5
    (90°)    		⌀1.3⌀0.5
    9×⌀0.25    		Coaxial reflection type
    E-MSMFU6FM6×P0.75⌀2.22×⌀1R25Parallel reflection type
    E-MSMFU67TZM6×P0.75
    (90°)    		⌀1
    16×⌀0.25    		Coaxial reflection type
    E-MSMFU49U⌀2⌀12×⌀0.5R10Parallel reflection type
    E-MSMFU48⌀3⌀1.3, ⌀1.0⌀0.5
    9×⌀0.25    		R15Coaxial reflection type



    ■ Fiber optic sensor, wide area type ⇒ For details, see here

    Used for workpiece transfer

    		The indicated detection distance value applies when using the fiber optic amplifier E-MSMFA11/41.
    ModelSpecificationDetection width
    (mm)    		Shape
    (mm)    		Detection distance (mm)
    		Bending radius
    (mm)    		Connection cable
    length
    E-MSMA30Through-beam type30E-MSMA30R251.5 m
    E-MSMA5050E-MSMA50
    E-MSMA100100E-MSMA100
    E-MSMFUA0562 m
    E-MSMFUA1010.51.5 m
    E-MSMFU1211
    E-MSMFS117
    E-MSME1111E-MSME11R152 m
    E-MSME4040E-MSME40
    E-MSMFUA05DReflection type10.5R251.5 m
    E-MSMFU1750
    E-MSMFU1112.5
    ■ Through-beam type

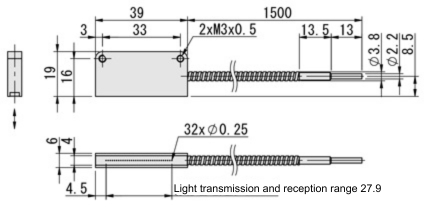

    Detection width: 30 mm

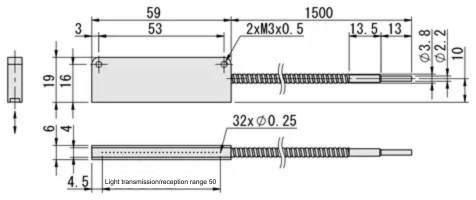

    E-MSMA30    		Detection width: 50 mm
    E-MSMA50

    Note: The shapes of the light-emitting side and the light-receiving side are identical.
    Note: To protect the spiral tube, cutting this product is strictly prohibited.

    Note: The shapes of the light-emitting side and the light-receiving side are identical.
    Note: To protect the spiral tube, cutting this product is strictly prohibited.

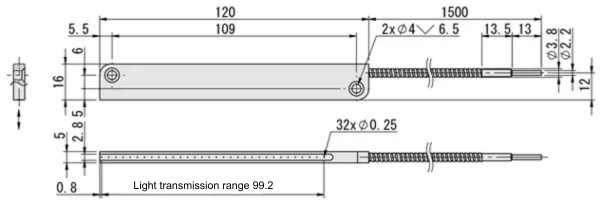

    Detection width: 100 mm
    E-MSMA100    		Detection width: 11 mm
    E-MSME11

    Note: The shapes of the light-emitting side and the light-receiving side are identical.
    Note: To protect the spiral tube, cutting this product is strictly prohibited.
    Note: The shapes of the light-emitting side and the light-receiving side are identical.

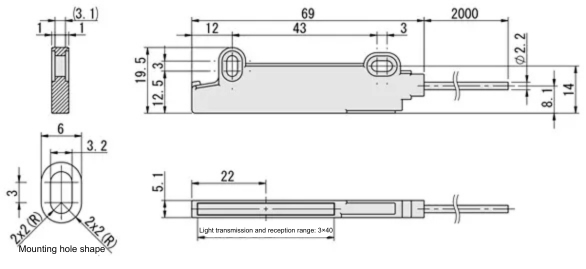

    Detection width: 40 mm
    E-MSME40
    E-MSMFUA05

    Note: The shapes of the light-emitting side and the light-receiving side are identical.
    Note: The shapes of the light-emitting side and the light-receiving side are identical.

    E-MSMFU12
    E-MSMFUA10

    Note: The shapes of the light-emitting side and the light-receiving side are identical.
    Note: The shapes of the light-emitting side and the light-receiving side are identical.

    E-MSMFS11

    Note: The shapes of the light-emitting side and the light-receiving side are identical.

    ■ Reflection type

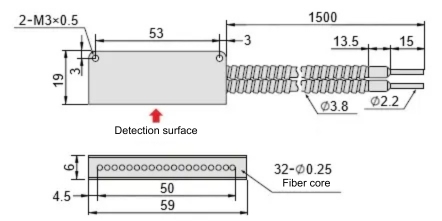

    E-MSMFU11E-MSMFU17
    E-MSMFUA05D

    MaterialOperating temperature
    Wire materialBody material
    Polymethyl methacrylate + fluoropolymerABS + PMMA9-40 to 70℃


    ■ Fiber optic sensor ultra-thin miniature flat panel bracket ⇒ For details, see here

    Detection in tight spaces

    		The indicated detection distance is the value for the application of the E-MSM11/41 series amplifier.
    ModelSpecificationDetection
    direction    		Shape
    (mm)    		Detection distance (mm)
    		Bending radius
    (mm)    		Optical axis diameter
    (mm)
    E-MSMD15XRReflection typeTop viewE-MSMD15XRR152-⌀0.5
    E-MSM41TZFront viewE-MSM41TZ2-⌀0.5
    E-MSMD15ZRE-MSMD15ZRR252-⌀1.0
    E-MSMD15YRSide viewE-MSMD15YR2-⌀0.5
    E-MSMT15ZRThrough-beam typeFront viewE-MSMT15ZR⌀1.0
    E-MSMT15YRSide viewE-MSMT15YR
    E-MSMT15XRTop viewE-MSMT15XR
    ■Reflection type
    E-MSM41TZ
    E-MSMD15XR

    E-MSMD15YR
    E-MSMD15ZR
    ■Through-beam type
    E-MSMT15ZR
    E-MSMT15YR

    Note: The light-emitting side and the light-receiving side have a symmetrical shape.
    Note: The light-emitting side and the light-receiving side have a symmetrical shape.

    E-MSMT15XR

    Note: The light-emitting side and the light-receiving side have a symmetrical shape.

    MaterialConnection cable lengthOperating temperature
    BodyCable
    SUS303Polyethylene2 m-40 to 70℃


    ■ Focusing lens ⇒ For details, see here

    ModelSpecificationShape (mm)Applicable optical fiber modelOperating temperatureTip outer diameterLight spot diameterFocal lengthSuitable
    optical fiber head diameter
    E-MSMF3AReflection typeE-MSMF3AE-MSMC31M
    E-MSMC31N

    E-MSMC31M-1M
    		-40 to 70℃⌀4Approx. ⌀0.47 mm +/-2M3×P0.5
    E-MSMF3BE-MSMF3B-40 to 70℃⌀7.4Approx. ⌀0.515 mm +/-2
    ■Tip outer diameter: ⌀4.3
    E-MSMF3A    		■Tip outer diameter: ⌀7.4
    E-MSMF3B

    ComponentCaseLens
    MaterialAluminumGlass
