[Clean & Pack]Flexible Fluororesin Tubes
![[Clean & Pack]Flexible Fluororesin Tubes](http://in.misumi-ec.com/linked/material/mech/MSM1/PHOTO/110311035449_002.jpg?$product_main$)
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- Starting From :
- 7,832₹/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Similar Products
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Product Detail
| Type | [M] Material | Cleaning Method | |||
| Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment | ||
| SL-PUFN | Fluororesin (PFA) | Degreasing | General environment | Single Packaging | General environment |
| SH-PUFN | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | |
[ ! ] See the
details of degreasing and precision cleaning shown at the bottom of the specification table.Specification Table
| Part Number | — | Length |
| SL-PUFN6 | — | 1000 |
| Part Number | L Selection (mm) | I.D. d (mm) | Min. Bending Radius (mm) [ ! ] | O.D. Accuracy (mm) | Max. Operating Pressure (MPa) | Burst Pressure (MPa) | Mass (kg/m) | |
| Type | Outer Dia. D (mm) | |||||||
| SL-PUFN SH-PUFN | 6 | 300 | 4 | 10 | ±0.1 | 1.7 | 7 | 0.034 |
| 500 | ||||||||
| 1000 | ||||||||
| 8 | 300 | 6 | 10 | 1.1 | 4.5 | 0.047 | ||
| 500 | ||||||||
| 1000 | ||||||||
| 10 | 300 | 8 | 15 | 0.8 | 3.5 | 0.061 | ||
| 500 | ||||||||
| 1000 | ||||||||
| 12 | 300 | 10 | 15 | 0.7 | 3 | 0.074 | ||
| 500 | ||||||||
| 1000 | ||||||||
[!] O.D. accuracy is the value of straight parts at both ends. [!] Maximum operating pressure and burst pressure shown are values at ambient temperature.
| Type | SL-PUFN/SH-PUFN | ||
| Material | Fluororesin | ||
| Fluid specifications | Air | Water | Vacuum |
| Operating Temperature Range | -65 to 260°C | ||
| Burst Pressure | Depends on size. Refer to specification table | ||
| Max. Operating Pressure | Depends on size. Refer to specification table | ||
| Operating Vacuum Level | — | -100 kPa | |
| Features | ·Excels in heat and low temperature resistance. ·Inert to most of corrosive gases, chemicals and solvents. ·Highly weather resistant, and does not deteriorate with time. · Incombustible. No toxic substances released. | ||
Cleaning Process· Degreasing (Part Number: SL-□□)
Working Environment: General environment | ||||||
|---|---|---|---|---|---|---|
 IPA Cleaning |  |  Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use clean air blow | |  Single Packing |
Working Environment: General environment | Working Environment: Class 1,000 | Working Environment: Class 10 | ||||||
|---|---|---|---|---|---|---|---|---|
IPA Cleaning | | Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use clean air blow | | Use nitrogen blow | |  Degassing double packing |

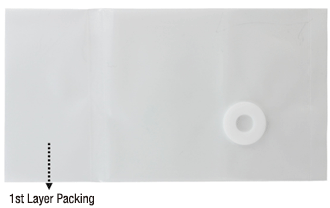

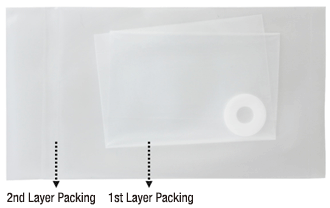

Packaging ExampleDegreasing (Part Number: SL-□□) | Precision Cleaning (Part Number: SH-□□) [ ! ] Both the first and second layer packaging are degassed. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Use Case and Process |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Removal of organic stains | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Removal of organic stains Removal of contamination and dusts | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process |
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | O.D. (Ø) | Environmentally Friendly | I.D. (Ø) | Properties / applications | Outer Diameter [Category] | I.D. [Category] | Min. Bend Radius (mm) | Cleaning Method | Length L (mm) | Max. Operating Pressure (Air) (MPa) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
₹ 18,962.50 | 1 Piece(s) | 10 Day(s) or more | 6 | RoHS compliant (10 substances) | 4 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 6 | ~4 | 10 | Precision Cleaning | 1000 | 1.7 | ||
₹ 7,870.91 | 1 Piece(s) | 8 Day(s) or more | 6 | RoHS compliant (10 substances) | 4 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 6 | ~4 | 10 | Precision Cleaning | 300 | 1.7 | ||
₹ 10,484.67 | 1 Piece(s) | 8 Day(s) or more | 6 | RoHS non-compliant | 4 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 6 | ~4 | 10 | Precision Cleaning | 500 | 1.7 | ||
₹ 20,776.80 | 1 Piece(s) | 10 Day(s) or more | 8 | RoHS compliant (10 substances) | 6 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 8 | ~6 | 10 | Precision Cleaning | 1000 | 1.1 | ||
₹ 8,471.44 | 1 Piece(s) | 8 Day(s) or more | 8 | RoHS compliant (10 substances) | 6 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 8 | ~6 | 10 | Precision Cleaning | 300 | 1.1 | ||
₹ 11,295.86 | 1 Piece(s) | 8 Day(s) or more | 8 | RoHS non-compliant | 6 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 8 | ~6 | 10 | Precision Cleaning | 500 | 1.1 | ||
₹ 23,799.93 | 1 Piece(s) | 10 Day(s) or more | 10 | RoHS non-compliant | 8 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 10 | ~8 | 15 | Precision Cleaning | 1000 | 0.8 | ||
₹ 9,480.51 | 1 Piece(s) | 10 Day(s) or more | 10 | RoHS non-compliant | 8 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 10 | ~8 | 15 | Precision Cleaning | 300 | 0.8 | ||
₹ 12,905.07 | 1 Piece(s) | 8 Day(s) or more | 10 | RoHS non-compliant | 8 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 10 | ~8 | 15 | Precision Cleaning | 500 | 0.8 | ||
₹ 25,817.38 | 1 Piece(s) | 10 Day(s) or more | 12 | RoHS non-compliant | 10 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 15 | ~10 | 15 | Precision Cleaning | 1000 | 0.7 | ||
₹ 10,295.41 | 1 Piece(s) | 8 Day(s) or more | 12 | RoHS non-compliant | 10 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 15 | ~10 | 15 | Precision Cleaning | 300 | 0.7 | ||
₹ 13,712.89 | 1 Piece(s) | 8 Day(s) or more | 12 | RoHS non-compliant | 10 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 15 | ~10 | 15 | Precision Cleaning | 500 | 0.7 | ||
₹ 18,883.93 | 1 Piece(s) | 10 Day(s) or more | 6 | RoHS compliant (10 substances) | 4 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 6 | ~4 | 10 | Degreasing | 1000 | 1.7 | ||
₹ 7,831.63 | 1 Piece(s) | 8 Day(s) or more | 6 | RoHS compliant (10 substances) | 4 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 6 | ~4 | 10 | Degreasing | 300 | 1.7 | ||
₹ 10,446.51 | 1 Piece(s) | 8 Day(s) or more | 6 | RoHS non-compliant | 4 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 6 | ~4 | 10 | Degreasing | 500 | 1.7 | ||
₹ 20,698.23 | 1 Piece(s) | 10 Day(s) or more | 8 | RoHS compliant (10 substances) | 6 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 8 | ~6 | 10 | Degreasing | 1000 | 1.1 | ||
₹ 8,433.28 | 1 Piece(s) | 8 Day(s) or more | 8 | RoHS compliant (10 substances) | 6 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 8 | ~6 | 10 | Degreasing | 300 | 1.1 | ||
₹ 11,256.57 | 1 Piece(s) | 8 Day(s) or more | 8 | RoHS non-compliant | 6 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 8 | ~6 | 10 | Degreasing | 500 | 1.1 | ||
₹ 23,721.36 | 1 Piece(s) | 10 Day(s) or more | 10 | RoHS non-compliant | 8 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 10 | ~8 | 15 | Degreasing | 1000 | 0.8 | ||
₹ 9,441.23 | 1 Piece(s) | 10 Day(s) or more | 10 | RoHS non-compliant | 8 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 10 | ~8 | 15 | Degreasing | 300 | 0.8 | ||
₹ 12,865.79 | 1 Piece(s) | 8 Day(s) or more | 10 | RoHS non-compliant | 8 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 10 | ~8 | 15 | Degreasing | 500 | 0.8 | ||
₹ 25,738.81 | 1 Piece(s) | 10 Day(s) or more | 12 | RoHS non-compliant | 10 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 15 | ~10 | 15 | Degreasing | 1000 | 0.7 | ||
₹ 10,256.13 | 1 Piece(s) | 8 Day(s) or more | 12 | RoHS non-compliant | 10 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 15 | ~10 | 15 | Degreasing | 300 | 0.7 | ||
₹ 13,674.73 | 1 Piece(s) | 8 Day(s) or more | 12 | RoHS non-compliant | 10 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | Up to 15 | ~10 | 15 | Degreasing | 500 | 0.7 |
| Part Number |
|---|
Loading...
Basic Information
| Material | Fluororesin | Applicable Fluid | Water / Air | Tube Color | C (Transparent) |
|---|---|---|---|---|---|
| Type | Straight | Cutting Service Availability | No | Material: Fluororesin | Fluororesin (PFA) |
| Operating Temperature Range (when using air)(°C) | -65::260 | Material Certificate | Available | Material Certificate: Material | Fluororesin (PFA) |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
