Hex Bolts SUS316L

Brand :

MISUMI

Caution

Product Description

Product Overview

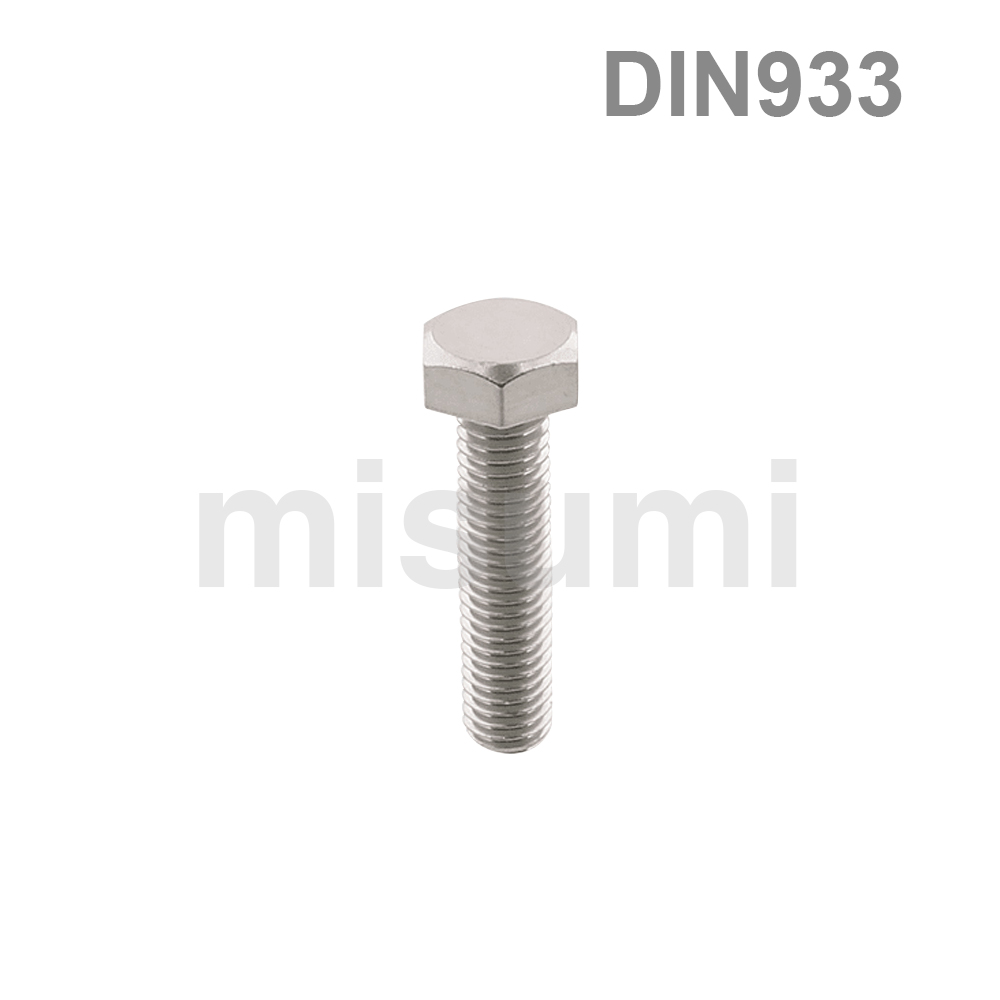

・This product is Hex Bolts SUS316L (Boxed)
・Boxed sales at favorable price
・Full range
・The product complies with specifications related with the standard number listed on the web page, but MISUMI makes no commitment to this product brand.

Dimensional Drawing

Applicable Standard: DIN933
Material Specification

Type	Body					Standard Number
Type	Material	Surface Treatment	Thread	Strength class	Thread length	Standard Number
E-LBOX-RSCB316LS	SUS316L	-	Coarse Thread	A2-70	Full Thread	DIN933

Specification Table

Type	M (Coarse Thread)	L	A	PCS/Box
Type	M (Coarse Thread)	L	A	PCS/Box
Size Selection E-LBOX-RSCB316LS	5	20	8	1250
	5	30	8	850
	6	12	10	1100
		16		900
		20		800
		25		600
		30		550
		35		450
		40		400
		45		350
		50		300
		55		275
		60		250
		65		220
		70		220
		75		220
		90		200
		100		180
		120		175
		130		185
		140		165
		150		150
	8	16	13	450
		25		350
		30		300
		35		250
		40		225
		45		200
		50		175
		55		150
		60		150
		65		125
		80		120
		90		120
		110		100
	10	20	17	200
		55		100
		80		75
		90		65
		100		65
		110		60
		130		60
		150		50

Type	M (Coarse Thread)	L	A	PCS/Box
Type	M (Coarse Thread)	L	A	PCS/Box
Size Selection E-LBOX-RSCB316LS	12	20	19	150
		25		125
		30		125
		35		100
		40		100
		45		75
		50		75
		55		65
		60		65
		65		55
		70		50
		75		50
		90		50
		100		50
		110		45
		130		50
	14	35	22	75
		40		65
		45		65
		50		55
		60		45
		65		45
		70		40
		80		40
		90		35
		110		30
		120		30
		130		30
		140		30
		150		25
	16	30	24	65
		35		55
		40		50
		45		45
		50		40
		55		35
		60		35
		65		35
		70		30
		75		30
		100		25
		130		25
		140		25

Type	M (Coarse Thread)	L	A	PCS/Box
Type	M (Coarse Thread)	L	A	PCS/Box
Size Selection E-LBOX-RSCB316LS	18	40	27	35
		45		30
		50		30
		55		30
		60		28
		65		20
		70		20
		75		20
		80		20
		90		22
		100		18
		110		18
		120		15
		130		20
		140		18
		170		20
		180		20
	20	40	30	26
		45		26
		50		25
		55		25
		60		20
		65		20
		70		20
		75		20
		85		18
		90		15
		100		15
		110		15
		120		12
		130		15
		140		15
		150		12
		160		12
		170		65
		190		60

Product Features

・Thread Nominal Range: M5~M20
・This product is sold in boxes.
