Cable Carriers Low Particle Generation, Low Noise, Inner Height 30~50mm (Seperator Attachable)

Brand :
MISUMI

Caution

    Product Description



    Economic Design Case Study

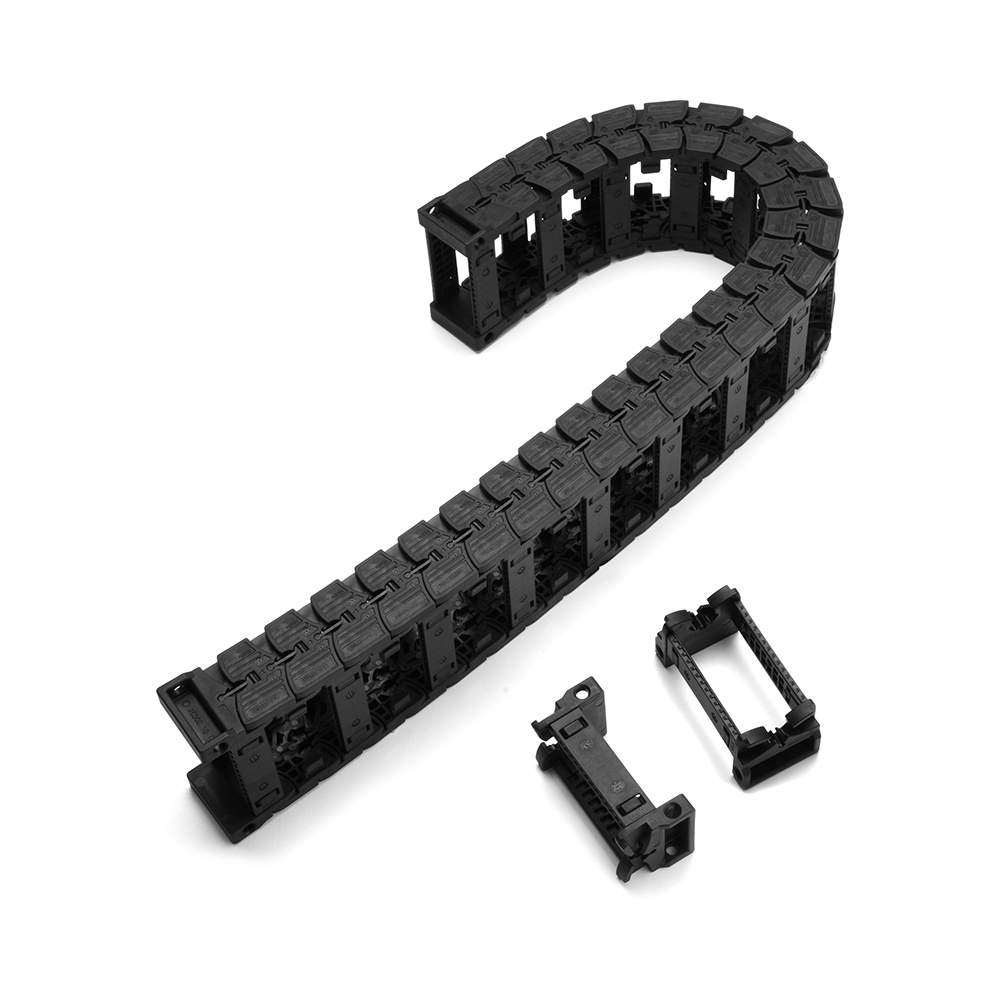

    Cable Carriers - Low Particle Generation, Low Noise
    Cable carriers are essential equipment used in automation machines to effectively organize and prevent the tangling and twisting of cables. They provide a wide range of sizes to choose from.
    [Feature]
    •Material: Nylon PA + Glass Fiber
    •Type: Flap Open-Close type
    •Flap: Outside open, Inside open
    •Inner Height/A(mm): 30
    •Inner Width/C Min./Max. (mm): 30 / 100
    •Bending Radius/R Min./Max.(mm): 55 / 150
    •Number of Links: 10~65

    Economy Low Particle Generation, Low Noise Cable Carrier

    Low Noise Sensitive Environment High-quality

    - Low particle generation ideal for sensitive environments

    - Available in various widths

    - Superior noise reduction for quieter operations

    - High-quality PA+Glass Fiber material

    - Suitable for various custom applications

    Economy Low Particle Generation, Low Noise Cable Carrier
    MISUMI Economy Logo

    MISUMI Standard
    MISUMI Standard

    Cheaper Price
    Cheaper Price

    Product Variety
    Product Variety

    3D CAD
    3D CAD Support


    Product Overview

    Cable protection chain that can prevent cables, air tubes, etc. connected to the moving parts of equipment from becoming entangled during twisting and stretching.
    Special chain link structure with low dust emission and low noise features. More suitable for use in noise-reducing equipment.

    Drag Chain Cable Protection Chain
    Drag Chain Cable Protection Chain
    Select an example

    Dimensional Drawing

    Drag Chain Cable Protection Chain
    Cross-sectional view of the link

    Joint Dimensional Drawing
    Inner Height 22
    Inner Height 22Inner Height 22
    Material: PA+Glass Fiber

    Inner Height 30
    Inner Height 30Inner Height 30
    Material: PA+Glass Fiber

    Inner Height 40
    Inner Height 40Inner Height 40
    Material: PA+Glass Fiber

    Inner Height 50
    Inner Height 50Inner Height 50
    Material: PA+Glass Fiber

    Technical data
    Speed/Acceleration MLamax.20[m/s]/max.100[m/s2]
    Speed/Acceleration MLbmax.3[m/s]/max.6[m/s2]
    Permitted temperature-40°C to 120°C
    Flame Retardant Grade Flammability classUL94 HB

    Load
    Inner Height 22
    Inner Height 22

    Inner Height 30
    Inner Height 30

    Inner Height 40
    Inner Height 40

    Inner Height 50
    Inner Height 50

    Specification Table


    Part Number External Height
    B    		Inner Width
    C    		External Width
    W    		Link Pitch
    P    		Available bending
    radius R    		Number of linksInstallation Optional AccessoriesInstallation Size (Corresponding bending Radius)Required space
    Height HF    		Weight
    kg/m
    ≈
    TypeInner Height
    A    		Connector
    Comb Plate
    Connector Comb Plate Quantity    		Separator
    Number of Separators    		HDK
    E-MXA
    (can be opened inwards
    or outwards)    		242720322045
    50
    75    		10～65--S224～65117
    127
    177    		79
    84
    109    		185
    200
    280    		H+400.28
    30420.29
    40520.3
    50620.35
    60720.38
    304020362555
    75
    100
    125
    150    		10～65Z302～10S304～65150
    190
    240
    290
    340    		100
    120
    145
    170
    195    		225
    290
    365
    445
    525    		H+400.69
    25410.72
    30460.75
    40560.77
    50660.8
    60760.83
    70860.85
    75910.86
    80960.88
    901060.9
    1001160.92
    1201360.95
    1251410.96
    1401560.99
    1501661.02
    1751911.12
    405030502860
    75
    100
    125
    150    		10～65Z402～10S404～65170
    200
    250
    300
    350    		113
    128
    153
    178
    203    		245
    295
    375
    450
    530    		H+401.25
    40601.3
    50701.35
    60801.39
    70901.42
    75951.45
    801001.48
    901101.5
    1001201.55
    1201401.64
    1251451.66
    1401601.72
    1501701.78
    1751951.88
    506230543075
    100
    125
    150
    200    		10～65--S504～65212
    262
    312
    362
    462    		136
    161
    186
    211
    261    		300
    375
    455
    535
    690    		H+401.65
    40641.69
    50741.72
    60841.78
    70941.81
    75991.84
    801041.88
    901141.91
    1001241.95
    1201441.98
    1251492.01
    1401642.1
    1501742.15
    1751992.25
    Connector comb plates and separator plates can be added when selecting products. For details on the quantity of connector comb plates and separator plates, please refer to the MISUMI sales website.

    Product Features

    Material: PA + Glass Fiber
    Inner Height: 30 mm, 40 mm, 50 mm
    Features: Links are connected by elastic pieces to reduce friction and lower noise

    NoiseCompared to MISUMI standard type, noise is reduced by 40%
    Cleanroom ClassISO Class 4
    Drag Chain Cable Protection Chain

    Precautions

    If it is a brand new design, there may not be enough links in the drag chain. It is recommended to choose Link 1 or 2 as a spare and adjust (disassemble) when installing the device.
    Confirm whether the cable has too much contact with the inner and outer sides of the cable protection chain in the whole stroke range

    ● Assembly of Silent Cable Carrier
    Drag Chain Cable Protection Chain
    ● Disassembly of Silent Cable Carrier
    Drag Chain Cable Protection Chain

    Example of Use

    Drag Chain Cable Protection Chain
