Photo Microsensors, Compact, Cable Length 2M

Name: Photo Microsensors, Compact, Cable Length 2M
Brand: MISUMI
Availability: InStock

Click this image to zoom it.

Move the mouse over or click the image to zoom

Volume Discount

Check FAQ of this product (5 items)

Brand :

MISUMI

MiSUMi Economy

MISUMI

Order Qty :
Total Price :

---
Days to ship :

---

Select part number to Order Now/ Add to Cart

CAD Download

Product Description

Photo Microsensors, Compact, Cable Length 2M
Photomicrosensors are an economy item, The price is cheaper than the MISUMI standard product. They offer a wide variety of shape to choose from.
[Feature]
● Shape : Standard, L type, F type, R type and U type
● Detection Distance (mm.): 5
● Sensing modess : NPN Output (Normally Open) and PNP Output (Normally Open)
● Power Voltage : DC5-24V
[Application]
Photomicrosensors are a versatile type of sensor that can be used to measure speed, count objects, and more.

Product Overview

Groove Type Photomicrosensors
The groove type Photomicrosensors is a sensor composed of one light emitter and one receiver installed face to face on both sides of a groove. The light emitter can emit infrared light or visible light, while the light receiver can receivethe light without any obstruction. However, when the detection object goes through the groove, the light is blocked and the photoelectric switch is actuated, which outputs a switch control signal to cut off or connect the load current,thus completing a control operation. Due to the groove type switch’s overall structure, the detection distance is generally limited to a few centimeters.

Product Comparison

■ Comparison with MISUMI Standard Product

Model		MISUMI Standard Product FPM□25	Economy Series
Output		NPN Output	NPN Output PNP Output
	Max. Inflow Current	50mA	100mA
	Applied Voltage	30VDC or below	5-24VDC
	Residual Voltage	2V or below (at inflow current 50mA) 1V or below (at inflow current 16mA)	2V or below (at inflow current 50mA)
Output Activation		Equipped with 2 outputs: Light ON/Dark ON
Detection Distance		6mm	5mm
Minimum Detected Object		0.8 x 1.2mm opaque object	0.8 x 1.2mm opaque object
Hysteresis		0.05mm or less	0.03mm or less
Repeatability		0.05mm or less	0.03mm or less
Light Source		Red LED
Power Supply Voltage		5 to 24VDC
Consumed Current		15mA or less
Response Time		When receiving light: 20μs or less, when light blocked: 80μs or less (Response frequency 3kHz or above)	When receiving light: 20μs or less, when light blocked: 80μs or less (Response frequency 2kHz or above)
Operation Indicator Light		Orange LED (lit when receiving light)	Operation Indicator Light (Red) (Selectable between Dark ON/Light ON)
Environmental Resistance	Operating Ambient Temperature	-25°C to +55°C
	Operating Ambient Humidity	35 to 85%RH
	Operating Ambient Illuminance	Light receiving surface illuminance 1000lx or below	Light receiving surface illuminance 1000lx or above, 3000lx or below
	Withstand Voltage	1000VAC, 50/60Hz, 1 minute between power receiving unit and case
	Insulation Resistance	50MΩ or above at 250VDC megger between charger bundle and case	51MΩ or above at 250VDC megger between charger bundle and case
	Vibration Resistance	Durability 10 to 2000Hz Double Amplitude 1.5mm XYZ directions 2 hours	Durability 10 to 55Hz Double Amplitude 1.5mm XYZ directions 2 hours
	Impact Resistance	Durability 15,000m/s² XYZ directions 3 times	Durability 500m/s² XYZ directions 10 times
	Protection Rating	-	IP50
Protective Circuits		-	Surge protection, short circuit protection, reverse connection protection
Body Material		Case: PBT, Display: Polycarbonate	Case: ABS, Display: Polycarbonate
Cables		0.09mm² 4-core cabtyre cable with PVC 1mm	0.09mm² 0.09mm2 4-core cabtyre cable with PVC 2mm
Cable Extension		Extension possible up to total length 100m for cables of 0.3mm² or above	Extension possible up to total length 50m for cables of 0.3mm² or above
Mass		10g

Dimensional Drawing

K Shape　C-MSX950□-2M
Example of Sensor Use

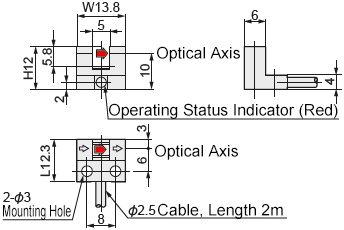

L Shape　C-MSX951□-2M/C-MSX951-2M-R
Example of Sensor Use

F Shape　C-MSX952□-2M
Example of Sensor Use

R Shape　C-MSX953□-2M
Example of Sensor Use

U-type　C-MSX954□-2M
Example of Sensor Use

Specifications Overview

Groove Type Photomicrosensorss, Compact (Cable Length 2M)

Part Number	Shape	Detection Distance	Types	Indicator Mode	Output Method	Cable Lead-out
C-MSX950N-2M	K Shape	5mm	NPN Output	Light on when energized, light off when detected	Equipped with 2 independent outputs at the same time (switchable between Dark ON and Light ON)	Standard 2 m
C-MSX951N-2M	L Shape					Standard 2 m
C-MSX951N-2M-R	L Shape					Bend resistance 2m Cable
C-MSX952N-2M	F Shape					Standard 2 m
C-MSX953N-2M	R Shape
C-MSX954N-2M	U Shape
C-MSX950P-2M	K Shape		PNP Output
C-MSX951P-2M	L Shape
C-MSX952P-2M	F Shape
C-MSX953P-2M	R Shape
C-MSX954P-2M	U Shape

Specification Table

		Outlet Type
Part Number (NPN Output)		C-MSX67□N-2M (Standard Type)	C-MSX95□N-2M (Miniature Specification)	C-MSX67□N
			C-MSX95□N-2M-R (Miniature Bending Resistant Lead Wire Specification)
Part Number (PNP Output)		C-MSX67□P-2M(Standard Type)	C-MSX95□P-2M (Miniature Specification)	C-MSX67□P
Connection method		Lead wire length 2 m	Lead wire length 2 m	Connector type
Detection Distance		Groove width 5 mm
Detection Object		Opaque object 1.2*0.8 mm
Light source		Infrared light emitting diode
Response frequency		2KHz
Power Voltage		DC5-24V
Repetitive Accuracy		0.03mm or less
Control Output	Load Current	3-100mA
	Residual voltage	Below 2 V (load current 100 mA)	Below 2 V (load current 50 mA)	Below 1.5 V (load current 100 mA)
Indicator		Operation indicator (red)
Operation pattern		Equipped with 2 independent outputs at the same time (Dark ON and Light ON)
Protection circuit		Surge protection circuit, short circuit protection, reverse connection protection
Environment temperature/Humidity		-25-+55°C/35-85%RH
Environmental illumination impact		Illuminance of light-receiving surface is above 3000LX
Maximum Voltage		AC1000 V, 50/60 Hz, 1 min between the charging part and the case
Vibration (durable)		10-55 Hz, up and down double amplitude 1.5mm, 2 h in X, Y and Z directions respectively
Impact (durable)		500m/s², 10 times in X, Y and Z directions respectively
Protection Rating		IP50

Output operation	Lead Wire Color	Output operation
Output 1	Black	Dark ON
Output 2	White	Light ON

Product Features

Usage Method

Mounting Method
When fixing the body with screws, use M3 screws, Φ6mm washers and control the tightening torque below 0.5N·m
Usage Method

Connector Type

Part Number

Incomplete part number.
Please use left hand selections to complete a part number.

: 30; 45; 60

Part Number
C-MSX950N-2M
C-MSX950P-2M
C-MSX951N-2M
C-MSX951N-2M-R
C-MSX951P-2M
C-MSX952N-2M
C-MSX952P-2M
C-MSX953N-2M
C-MSX953P-2M
C-MSX954N-2M
C-MSX954P-2M

Price	Minimum Order Qty.	Volume Discount	Days to Ship	RoHS	Shape	Max. Head Width (mm)	Max. Head Height (mm)	Max. Head Length (mm)	Cable Lead-out	Type
₹ 788.88	1 Piece(s)	Available	Same day	10	Standard	24	6	12	Standard 2m	NPN Type (Normally Open)
₹ 788.85	1 Piece(s)	Available	Same day	10	Standard	24	6	12	Standard 2m	PNP Type (Normally Open)
₹ 787.54	1 Piece(s)	Available	Same day	10	Type L	13.8	12	12.3	Standard 2m	NPN Type (Normally Open)
₹ 862.01	1 Piece(s)	Available	Same day	10	Type L	13.8	12	12.3	Cable 2m, Bend Resistant	NPN Type (Normally Open)
₹ 790.32	1 Piece(s)	Available	Same day	10	Type L	13.8	12	12.3	Standard 2m	PNP Type (Normally Open)
₹ 788.85	1 Piece(s)	Available	Same day	10	Type F	13.5	11.8	12	Standard 2m	NPN Type (Normally Open)
₹ 790.32	1 Piece(s)	Available	Same day	10	Type F	13.5	11.8	12	Standard 2m	PNP Type (Normally Open)
₹ 788.85	1 Piece(s)	Available	Same day	10	Type R	13.5	11.8	12	Standard 2m	NPN Type (Normally Open)
₹ 790.32	1 Piece(s)	Available	Same day	10	Type R	13.5	11.8	12	Standard 2m	PNP Type (Normally Open)
₹ 788.85	1 Piece(s)	Available	Same day	10	Type U	13.6	6	16	Standard 2m	NPN Type (Normally Open)
₹ 790.32	1 Piece(s)	Available	Same day	10	Type U	13.6	6	16	Standard 2m	PNP Type (Normally Open)

Brand Introduction

MISUMI, the head office company, has been providing customers with various high-quality parts such as automation parts, mold parts, electronic parts, tool & consumables, etc. quickly and accurately since its establishment in Japan in 1963. By compiling product catalogs independently and establishing a marketing system for direct sales of products, a low-cost business operation mode has been created, and by making annual product plans according to customers' opinions and requirements, MISUMI brand-name products with high quality level have been continuously developed

Basic Information

Detection Distance(mm)	5
