Compact Proximity Sensors, NPN Outputs
Brand :
MISUMI
Caution
- Please note that this product is not covered by the RoHS warranty.
- This product is not covered by any investigation or warranty regarding overseas laws and regulations such as RoHS, REACH, and TSCA.
Product Description
New at MISUMI? Get upto ₹10,000 Discount* on Your First Order.Click to Register Now
Economy Compact Proximity Sensors
Ultra-Compact DesignPrecise DetectionLow Power Consumption
- Cylindrical shape with a screw and shield. Available in multiple sizes.
- Accurate detection capabilities. Multiple detection distance options available.
- Fast response time. Switching frequency up to specified rate.
- Flexible power supply options. Operates on 10 to 30VDC.
- Efficient power usage. No-load current <10mA, voltage drop <1.5V. Energy-efficient operation reduces operational costs and extends the lifespan of the device.
MISUMI Standard
Cheaper Price
Product Variety
3D CAD Support
Product Overview
A proximity switch is a type of position switch that operates without mechanical direct contact with moving parts. When an object approaches the sensing surface of the switch within the operating distance, the switch can be activated without mechanical contact or applying any pressure, thereby driving DC electrical devices or providing control commands to computer (PLC) systems. A proximity switch is a type of switch sensor (i.e., a contactless switch). It has the characteristics of both limit switches and micro switches, as well as sensing capabilities. It operates reliably, has stable performance, fast frequency response, long service life, strong anti-interference ability, and features such as waterproofing, shock resistance, and corrosion resistance.
Product Comparison
| Model | MISUMI Standard Product PSMM4 | Economy Series | ||
| C-C04 | C-C05 | |||
| Shape | Thread Type M4 | Thread Type M4 | Thread Type M5 | |
| Detection Distance | 1mm | 0.6mm | 1.0mm | |
| Output Format | NPN N.O. (Normally Open) | NPN N.O. (Normally Open) | ||
| Power Supply | DC 3-wire | DC 3-wire | ||
| Supply Voltage Range | 10 to 30V DC | 10 to 30V DC | ||
| Switch Hysteresis | 10% or less of effective detection distance Sr | 15% or less | ||
| Operating Ambient Temperature | -25 to +70 °C | -25 to +70 °C | ||
| Temperature Characteristics | Within ±15% (for operation at +23°C) | Within ±10% (for operation at +25°C) | ||
| Protection Rating | IP67 | IP67 | ||
| RoHS 10 Compliance | Compliant | Non-compliant | ||

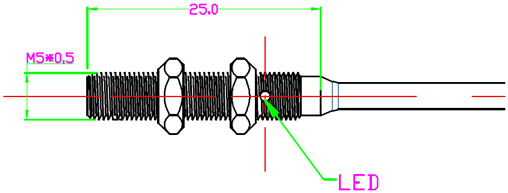

Dimensional Drawing
Detection distance: 0.6 mm
C-C04-N01
E-C04-P01
Detection distance: 1.0 mm
C-C05-N01
E-C05-P01
Detection distance: 1.5 mm
E-MSM05-S15N
E-MSM05-S15P

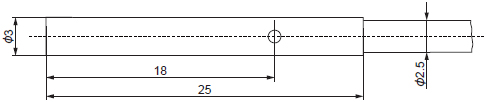

Detection distance: 0.8 mm
E-MSM03-S08N
E-MSM03-S08P

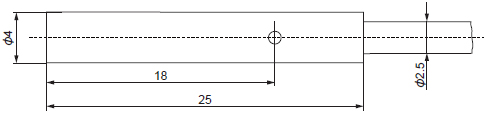

Detection distance: 1.5 mm
E-MSM04-S15N
E-MSM04-S15P
C-C04-N01
E-C04-P01
Detection distance: 1.0 mm
C-C05-N01
E-C05-P01
Detection distance: 1.5 mm
E-MSM05-S15N
E-MSM05-S15P
Detection distance: 0.8 mm
E-MSM03-S08N
E-MSM03-S08P
Detection distance: 1.5 mm
E-MSM04-S15N
E-MSM04-S15P
Specification Table
| Part Number | Detection Distance L1 | Output Type | Operating Voltage | Protection Rating | Operating Temperature | Short-circuit Protection | Overload Current | Sensing Surface Material | Wire Length | ||
| C-C04-N01 | 0.6 mm (M4) | DC 3-wire (NPN) | Includes 2M wire | Operation Mode (NO) | 10 to 30 V DC | IP67 | -25°C to +70°C | YES | 100 mA | POM | 2 m |
| E-C04-P01 | DC 3-wire (PNP) | ||||||||||
| C-C05-N01 | 1.0 mm (M5) | DC 3-wire (NPN) | 200 mA | ||||||||
| E-C05-P01 | DC 3-wire (PNP) | ||||||||||
| E-MSM05-S15N | 1.5 mm (M5) | DC 3-wire (NPN) | |||||||||
| E-MSM05-S15P | DC 3-wire (PNP) | ||||||||||
| E-MSM03-S08N | 0.8 mm (⌀3) | DC 3-wire (NPN) | 100 mA | ||||||||
| E-MSM03-S08P | DC 3-wire (PNP) | ||||||||||
| E-MSM04-S15N | 1.5 mm (⌀4) | DC 3-wire (NPN) | 220 mA | ||||||||
| E-MSM04-S15P | DC 3-wire (PNP) | ||||||||||
| Operation Mode (NO) | ||||||||||||
| Part Number | C/E-C04 | C/E-C05 | E-MSM05-S15 | E-MSM03-S08 | E-MSM04-S15 | |||||||
| Sensing Distance | 0.6 mm | 1.0 mm | 1.5 mm | 0.8 mm | 1.5 mm | |||||||
| Operating Voltage | 10 to 30 V DC | |||||||||||
| Permissible Pulse Voltage | < 10% | |||||||||||
| No-Load Current | < 10 mA | |||||||||||
| Overload Current | 100 mA | 200 mA | 100 mA | 200 mA | ||||||||
| Leakage Current | < 0.01 mA | |||||||||||
| Voltage Drop | < 1.5 V | |||||||||||
| Switching Frequency | 2KHZ | |||||||||||
| Response Time | 0.1 ms | |||||||||||
| Switch Hysteresis | < 15%(Sr) | |||||||||||
| Repeatability | < 1.0%(Sr) | |||||||||||
| Protection Rating | IP67 | |||||||||||
| Operating Temperature | -25°C to +70°C | |||||||||||
| Temperature Drift | < 10%(Sr) | |||||||||||
| Short Circuit Protection | YES | |||||||||||
| Sensing Surface Material | POM | |||||||||||
Product Feature

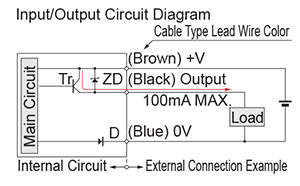

DC 3-wire NPN Output
ZD: Surge Absorption Zener Diode
Tr: NPN Output Transistor
D: Reverse Power Supply Protection Diode
ZD: Surge Absorption Zener Diode
Tr: NPN Output Transistor
D: Reverse Power Supply Protection Diode
DC 3-wire PNP Output
ZD: Surge Absorption Zener Diode
Tr: PNP Output Transistor
D: Reverse Power Supply Protection Diode
ZD: Surge Absorption Zener Diode
Tr: PNP Output Transistor
D: Reverse Power Supply Protection Diode
Usage Method

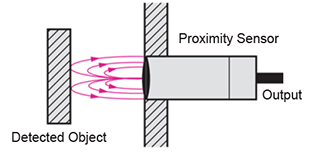

Shielded Type
The shielded type concentrates the magnetic flux at the front of the sensor, with the range of the inductive magnetic field directed straight ahead of the proximity switch.
The shielded type concentrates the magnetic flux at the front of the sensor, with the range of the inductive magnetic field directed straight ahead of the proximity switch.

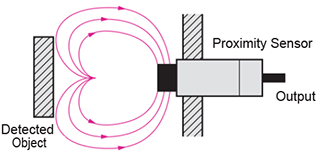

Unshielded Type
Non-shielded coil types can increase the detection distance, but because there is no object protection, they are easily affected by surrounding metals.
Please pay attention during installation.
Non-shielded coil types can increase the detection distance, but because there is no object protection, they are easily affected by surrounding metals.
Please pay attention during installation.

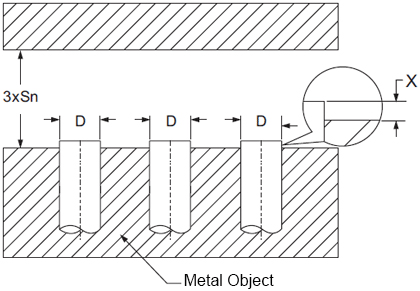

Single Shielded Type
To prevent signal interference, the distance from the sensor surface to the detected metal object should be ≥ 3Sn (Sn: sensor sensing distance), and the distance between two adjacent proximity sensors should be ≥ D (D: sensor diameter).
To prevent signal interference, the distance from the sensor surface to the detected metal object should be ≥ 3Sn (Sn: sensor sensing distance), and the distance between two adjacent proximity sensors should be ≥ D (D: sensor diameter).

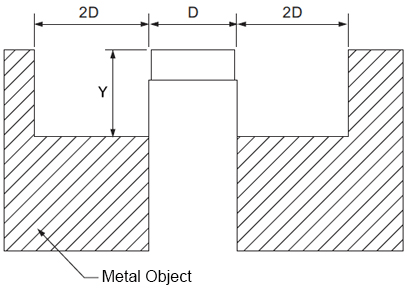

Single Non-Shielded Type
There is no protection around the sensing coil. The sensing surface must maintain a distance of Y from the mounting surface (M5 to M8, Y=6 mm; M12, Y=9 mm).
The distance between the sensing surface and the detected metal object should be ≥ 3Sn, and the distance between two adjacent proximity sensors should be ≥ 2D (D is the sensor diameter).
There is no protection around the sensing coil. The sensing surface must maintain a distance of Y from the mounting surface (M5 to M8, Y=6 mm; M12, Y=9 mm).
The distance between the sensing surface and the detected metal object should be ≥ 3Sn, and the distance between two adjacent proximity sensors should be ≥ 2D (D is the sensor diameter).
Relative Mounting Method
For sensors installed opposite each other, the minimum distance between the two sensing surfaces must be ≥ 6Sn
For sensors installed opposite each other, the minimum distance between the two sensing surfaces must be ≥ 6Sn
Double Distance Shielded Type
Steel X=0.2D
Other metals X=0.1D
*Thickness of object to be detected: 1 mm
Steel X=0.2D
Other metals X=0.1D
*Thickness of object to be detected: 1 mm
Double Distance Shielded Type
| Dimension D | Y(MM) | ||||
| M8 | 12 | ||||
| M12 | 15 |
Precautions
Sensor Attenuation Coefficient
