Embedded Handle Arch Type

Brand :

MISUMI

Caution

Product Description

Embedded Handle Arch Type
These embedded handles are designed for the convenient opening and closing the doors with limited space. This is an economy item, The price is cheaper than the MISUMI standard product.They offer a wide variety of sizes to choose from.
[Feature]
- Size (L X W) (mm.) :
- Mounting Pitch (mm.) : 76, 88 and 110
- Shorter Dim. (W)(mm.) : 60, 64 and 88
- Applicable for Panel Mounting Hole Sizes (L1 X W1)(mm.):
For Mounting Pitch 76 mm. -> 63X43
For Mounting Pitch 88 mm. -> 73X42
For Mounting Pitch 110 mm. -> 99X64
- Material : Stainless SUS304
[Application]
It is used to grab the doors before opening and closing.

Economy Embedded Handle Arch Type

Space-SavingHigh LoadEasy Installation

- Perfect for applications with limited space, allowing for efficient door operation without protrusions.

- Reliable performance under heavy usage, maintaining operational efficiency and safety.

- Detailed dimensional drawings and installation instructions provided. Includes guidelines to prevent installation issues.

- Handle with multiple mounting pitch options

- Made from SUS304 stainless steel. Ensures longevity and resistance to corrosion, making it suitable for a variety of environments and applications.

MISUMI Standard

Cheaper Price

Product Variety

3D CAD
3D CAD Support

Handles Product Overview

Economy series Embedded Handles Arch type Model: C-NUWUAN
The main body is made of stainless steel SUS304, which is durable.
This series products are divided into bolt type and nut type. Please select the applicable products according to the actual needs.
Different sizes of handles require different mounting depths. Please select products according to actual needs. Please refer to the specification table for details.
Embedded handle Product appearance reference

Embedded handle Product appearance reference

Handles Dimensional Drawing

【Handles Material Table】

Material	Surface Treatment
Stainless Steel	Hairline Finish

Handles Specifications Table

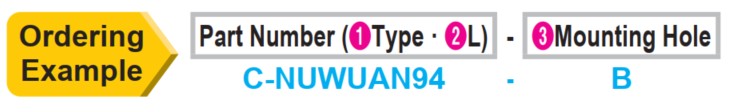

Part Number		Mounting Hole	W	Pitch P	F	S	A	A₁	T	(J)	L₁	W₁
Type	L	Mounting Hole	W	Pitch P	F	S	A	A₁	T	(J)	L₁	W₁
C－NUWUAN	94	B(Thread) N(Tapped)	60	76	32	58	24.5	43	12	14.5	63	45
	109.5		64	88	38	67.5	29.5	40	14.5	13	73	42
	138		88	110	65	96	32.5	62	21	11.5	99	64

Handles Product Features

【Handles Features】
The embedded handle can be mounted on products that interfere with the handle protrusion, but because the embedded part needs a certain thickness, please pay attention to whether there is enough space inside the mounted object.
Screws and nuts are fixed by riveting process compared with the generic products in the market fixed by welding, the mounting pitch is better controlled, and the problem of screws falling off due to poor welding is also completely solved.

Handles Precautions

The holes at the mounting part should be opened according to the hole size of the mounting plate in the dimensional drawing, and the dimension marked is for the smallest hole.
Please note that after mounting, the height of T will be embedded inside the mounting plate, and corresponding space needs to be reserved inside the mounting plate to avoid interference.

Handles Example of Use

Embedded handle Product drawings Example of use

Example of use: When mounted on the plate, besides opening holes and fixing with screws, it is necessary to open square holes at the corresponding handle embedded part.
