Timing Belts S5M

Brand :
MISUMI

Caution

    Product Description

    New at MISUMI? Get upto ₹10,000 Discount* on Your First Order.Click to Register Now

    Economic Design Case Study

    Timing Belts S5M
    It is a circular tooth profile timing belt. This belt always uses for high torque transmission in an automation machine
    [Features]
    • Belt Shape: Closed End
    • Belt Tooth Type: S5M (round tooth profile)
    • Tooth Pitch: 5 mm.
    • Belt Width: 10, 15 and 20 mm.
    • Circumference Length Shortest/Longest: 225 mm. and 3580 mm.
    • Belt Operating Temperature Range: -30 to 90℃.
    • Material:
    Tooth rubber: Chloroprene
    Core wire: Glass Fiber
    Backing cloth layer: Nylon canvas
    [Applications]
    Suitable for use with a timing pulley in a transmission system in an automation machine

    Economy S5M Timing Belt

    LongevityPrecise Circular Tooth ProfileTemperature Range

    - With a wide range of belt lengths and widths, you can tailor the belt to perfectly match your specific equipment needs.

    - Constructed with high-quality chloroprene rubber, these belts excel in resisting abrasion, oil, and grease, ensuring extended service life even in demanding environments.

    - The glass fiber reinforced core provides exceptional strength and tensile strength, preventing belt elongation and slippage, resulting in consistent power transmission.

    - The accurately designed circular tooth profile guarantees smooth and efficient power transmission, minimizing noise and vibration for optimal performance.

    - Engineered to function reliably in temperatures ranging from -30°C to 90°C, these belts offer versatility across various operating conditions.

    Economy S5M Timing Belt
    MISUMI Economy Logo

    MISUMI Standard
    MISUMI Standard

    Cheaper Price
    Cheaper Price

    Product Variety
    Product Variety

    3D CAD
    3D CAD Support



    Product Overview
    Usually, timing pulleys and timing belts are widely used to design mechanisms for transmitting rotational power generated by motors.
    Driving and transmission are realized through the engagement between the teeth of timing pulleys and timing belts.
    Dimensional Drawing
    ■Material
     Material
    ①Back Rubber②Tooth Rubber③Core Wire④Tooth Fabric
    Chloroprene RubberChloroprene Rubber Glass FiberNylon Cloth
    Dimensional drawing of MISUMI economic type belt
    Specification Table

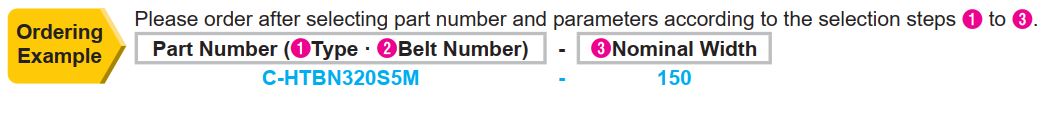

    Economic type Toothed timing belt S2M S3M S5M S8M S14M type Ordering example
    TypesNominal WidthPitch (mm)RaLrHhiPLDUnit weight g/m
    (Width：10mm)
    S5M100
    (10mm)
    150
    (15mm)
    250
    (25mm)    		53.253.253.411.911.50.4834
    timing beltBelt circumference length is core wire length.
    timing beltBelt operating temperature range: -30 to 90 ℃.
    timing beltThe model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
    timing beltFor the transmission capacity and calculation and design method of Economy series timing belt, please refer to the national standard (GB) design manual.
    timing beltWeight is a theoretical value for reference only, which may be different from the actual product.

    ■Specification Table
    C-HTBN
    Type S5M (Tooth pitch: 5mm)
    Part NumberBelt
    Nominal Width    		Number of TeethBelt Circumference Length
    (mm)
    TypeBelt Number
    C-HTBN150S5M100
    (10mm)

    150
    (15mm)

    250
    (25mm)    		30150
    160S5M32160
    180S5M36180
    185S5M37185
    200S5M40200
    215S5M43215
    220S5M44220
    225S5M45225
    230S5M46230
    235S5M47235
    240S5M48240
    245S5M49245
    250S5M50250
    255S5M51255
    260S5M52260
    265S5M53265
    270S5M54270
    275S5M55275
    280S5M56280
    285S5M57285
    290S5M58290
    295S5M59295
    300S5M60300
    305S5M61305
    310S5M62310
    315S5M63315
    320S5M64320
    325S5M65325
    330S5M66330
    335S5M67335
    340S5M68340
    345S5M69345
    350S5M70350
    355S5M71355
    360S5M72360
    365S5M73365
    370S5M74370
    375S5M75375
    380S5M76380
    385S5M77385
    390S5M78390
    395S5M79395
    400S5M80400
    405S5M81405
    410S5M82410
    415S5M83415
    420S5M84420
    425S5M85425
    430S5M86430
    435S5M87435
    440S5M88440
    445S5M89445
    450S5M90450
    455S5M91455
    460S5M92460
    465S5M93465
    470S5M94470
    475S5M95475
    480S5M96480
    485S5M97485
    490S5M98490
    495S5M99495
    500S5M100500
    505S5M101505
    510S5M102510
    515S5M103515
    520S5M104520
    525S5M105525
    530S5M106530
    535S5M107535
    540S5M108540
    545S5M109545
    550S5M110550
    555S5M111555
    560S5M112560
    565S5M113565
    570S5M114570
    575S5M115575
    580S5M116580
    585S5M117585
    590S5M118590
    595S5M119595
    600S5M120600
    610S5M122610
    615S5M123615
    620S5M124620
    625S5M125625
    630S5M126630
    635S5M127635
    640S5M128640
    645S5M129645
    650S5M130650
    655S5M131655
    660S5M132660
    665S5M133665
    670S5M134670
    675S5M135675
    680S5M136680
    685S5M137685
    690S5M138690
    695S5M139695
    700S5M140700
    710S5M142710
    720S5M144720
    725S5M145725
    730S5M146730
    735S5M147735
    740S5M148740
    745S5M149745
    750S5M150750
    755S5M151755
    760S5M152760
    765S5M153765
    770S5M154770
    775S5M155775
    780S5M156780
    785S5M157785
    790S5M158790
    800S5M160800
    810S5M162810
    815S5M163815
    820S5M164820
    825S5M165825
    830S5M166830
    835S5M167835
    840S5M168840
    845S5M169845
    850S5M170850
    860S5M172860
    865S5M173865
    870S5M174870
    880S5M176880
    890S5M178890
    900S5M180900
    905S5M181905
    915S5M183915
    920S5M184920
    925S5M185925
    930S5M186930
    935S5M187935
    940S5M188940
    950S5M190950
    960S5M192960
    970S5M194970
    975S5M195975
    980S5M196980
    1000S5M2001000
    1010S5M2021010
    1025S5M2051025
    1050S5M2101050
    1060S5M2121060
    1080S5M2161080
    1085S5M2171085
    1100S5M2201100
    1110S5M2221110
    1115S5M2231115
    1120S5M2241120
    1125S5M2251125
    1135S5M2271135
    1145S5M2291145
    1150S5M2301150
    1160S5M2321160
    1165S5M2331165
    1175S5M2351175
    1195S5M2391195
    1200S5M2401200
    1210S5M2421210
    1215S5M2431215
    1225S5M2451225
    1250S5M2501250
    1270S5M2541270
    1295S5M2591295
    1300S5M2601300
    1305S5M2611305
    1310S5M2621310
    1320S5M2641320
    1330S5M2661330
    1335S5M2671335
    1350S5M2701350
    1380S5M2761380
    1390S5M2781390
    1400S5M2801400
    1420S5M2841420
    1450S5M2901450
    1460S5M2921460
    1475S5M2951475
    1500S5M3001500
    1530S5M3061530
    1550S5M3101550
    1595S5M3191595
    1600S5M3201600
    1615S5M3231615
    1650S5M3301650
    1675S5M3351675
    1680S5M3361680
    1685S5M3371685
    1690S5M3381690
    1695S5M3391695
    1700S5M3401700
    1715S5M3431715
    1800S5M3601800
    1945S5M3891945
    1960S5M3921960
    2000S5M4002000
    2100S5M4202100
    2350S5M4702350
    2525S5M5052525
    2765S5M5532765
    2800S5M5602800
    2980S5M5962980
    3090S5M6183090

    Product Feature
    S type circular tooth profile economic type timing belt is made of rubber, featuring deviation prevention and wear resistance ■ S type circular tooth profile rubber timing belt (S2M/S3M/S5M/S8M/S14M)
    Feature 1: Reasonable semi-circular arc tooth profile design can provide higher torque to adapt to high load transmission.
    Feature 2: Reduce the noise generated by high-speed operation.
    Feature 3: Tooth peak changes under force, ensuring a longer life than conventional circular tooth profile teeth.
    Feature 4: Have certain conductivity
    Feature 5: Operating Temperature Range: -30 to 90℃.
    Features of P type domestic high-accuracy circular tooth profile timing belt ■ P type circular tooth profile rubber timing belt (P5M/P8M)
    Feature 1: Reasonable semi-circular arc tooth profile design can provide higher torque to adapt to high load transmission.
    Feature 2: Special concave tooth peak design, better reducing noise generated by high-speed operation.
    Feature 3: Tooth peak changes under force, ensuring greater accuracy than conventional circular tooth profile teeth.
    Feature 4: Have certain conductivity
    Feature 5: Operating Temperature Range: -25 to 80℃.
    Trapezoidal tooth profile timing belt is suitable for light load transmission and driving ■ Trapezoidal tooth profile rubber timing belt (MXL/XL/H/T5/T10)
    Feature 1: Suitable for light load transmission, standard torque driving.
    Feature 2: Tooth rubber uses chloroprene to protect core wire, providing excellent bending fatigue resistance, heat resistance, oil resistance
    Feature 3: Ideal choice of economical and maintenance-free alternative to traditional transmission method.
    Feature 4: Have certain conductivity
    Feature 5: Operating Temperature Range: -30 to 90℃ (MXL/XL/H) , 0 to 80℃ (T5/T10)

    Example of Use
    Usage Method Example DrawingInstructions for use of timing wheel and timing belt
    The TIMING BELT is installed on the motor and the rotating shaft to transmit the rotational force① Driving (The driven wheel is driven by the driving wheel for transmission)
    Transmission belt, used for repeated motion with the object not rotating and high requirements on positioning accuracy② Transmission (Used for repeated motion with the object not rotating and high requirements on positioning accuracy)
    Usage Method Example DrawingInstructions for use of timing wheel and timing belt
    Plates are conveyed by two timing toothed belts③ Conveyance (Plates are conveyed by two timing toothed belts)
    Usage method and example for conveyor belt lifting, repeated positioning motion④ Traction transmission (Workpieces are clamped and transmitted by the belt)

    Usage Method
    ■ Installation method for timing belt transmission
    ①Turn off the power supply, remove the protective cover, loosen the motor assembly bolts, move the motor so that the belt is loose enough. The belt can be removed without prying. Never try to pry the belt down.
    ②Remove the old belt and check for abnormal wear. Excessive wear may mean that there are problems in the design or maintenance of the transmission device.
    ③Choose the right belt to replace.
    ④To clean the belt and pulley, wipe with a cloth dipped in a small amount of non-volatile liquid. Soaking in detergent or scrubbing the belt with detergent is not advisable. To remove grease, it is also undesirable to wipe with sandpaper or scratch with a sharp object. The belt must be kept dry before installation and use.
    ⑤Check the pulley for abnormal wear or cracks. If the wear is excessive, the pulley must be replaced.
    ⑥Check whether the pulley is linearly symmetrical. Linear symmetry of the pulley is essential for the operation of the timing belt, especially the timing belt transmission device.
    Asymmetry of the pulley is shown as follows:
     Usage method Installation guide Complete selection Fit installation
    ⑦Check the remaining transmission device components, such as bearings and bushings, for symmetry, durability, lubrication and other conditions.
    ⑧Install a new belt on the pulley. Never pry or use too much force.
    ⑨Tighten to narrow the center distance of the transmission device until the tension tester detects that the belt tension is appropriate. Turn the driving wheel several times with your hands. Re-test tension.
    ⑩Tighten the assembly bolts of the motor and correct the torque. Since any change in the center distance of the transmission device during operation will result in poor belt performance, it is important to ensure that all transmission components have been tightened.
    ⑪Start the device and observe the belt performance to see if there is abnormal vibration, and listen carefully if there is abnormal noise. It is best to turn off the machine and check the conditions of the bearing and motor. If it feels too hot to the touch, the belt may be too tight, the bearing may be asymmetrical, or the lubrication may be incorrect.

    Precautions
    ① Do not bend the belt by force.
    It is strictly forbidden to bend the belt, which easily causes breakage

    Do not use in direct contact with water, solvent, oil, acid, alkali, UV, ozone, etc.
    110302717070 Water110302717070 Acid110302717070 Alkali110302717070 Oil110302717070 UV
    ③ Please avoid using or keeping at extreme high or low temperatures beyond the operating temperature range, or in humid environments.
    ④ During installation and maintenance, be sure to cut off the power supply and confirm that the machine is completely stopped before proceeding.
    ⑤ When there may be impurities, be sure to set the guard.
    Application Industries
    Food Semiconductor Smart phone
    110302717070 Lithium battery 110302717070 Semiconductor 110302717070 Smart phone
    Automotive Electronic & Electrical Appliances Medical
    110302717070 Automotive 110302717070 Electronic & electrical appliances 110302717070 Medical
