What do the numbers after the bracket model mean?

The numbers are consistent with the series of aluminum alloy profiles, and most of them can be used as long as they correspond.

Is there any way to choose matching bolts and nuts?

The alteration function of the bracket product will solve your problem, “-SET” is specified after the model, we will provide you with appropriate bolts and nuts to mount the bracket onto the profile. It can be selected with ease of mind. Example: LBSBL6-2028-SET

Notice of End of Sales for Economy Series Pneumatic Equipment Category. More information.

How can we improve?

How can we improve?

Feedback

Name (Optional)

E-mail Address (Optional)

Tel (Optional)

Thank you for your time.
Your feedback is essential for our continuous improvement
Privacy Policy

Thank you for your cooperation.

Thank you for your time.
Your feedback is essential for our continuous improvement
Please use the inquiry form.

Privacy Policy

Configure

Part number has not been determine

(30 Part Numbers Available)

Configure Remaining Specifications

Part Number Complete

LBSBK6-2020

Applicable Aluminum Frame Profile No. Aluminum Frame Profile Additional Cover Mounting Hole Machining Accessories type CAD Days to Ship

Specification/Dimensions

Applicable Aluminum Frame Profile No.
- 6 mm Groove Width
- 8 mm Groove Width
- 10 mm Groove Width
Clear
Aluminum Frame Profile
- 2020
- 2858
- 3030
- 3680
- 4040
- 4288
- 4545
- 6060
Clear
Additional Cover Mounting Hole Machining
- C (Machining of Threaded Holes for Cap Mounting)
- Not Provided
Clear
Accessories
- Not Provided
- SET (Screw and Nut Set)
Clear
type
- LBSBK6
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

Same day

8 Day(s) or Less
Clear

Specify Alterations

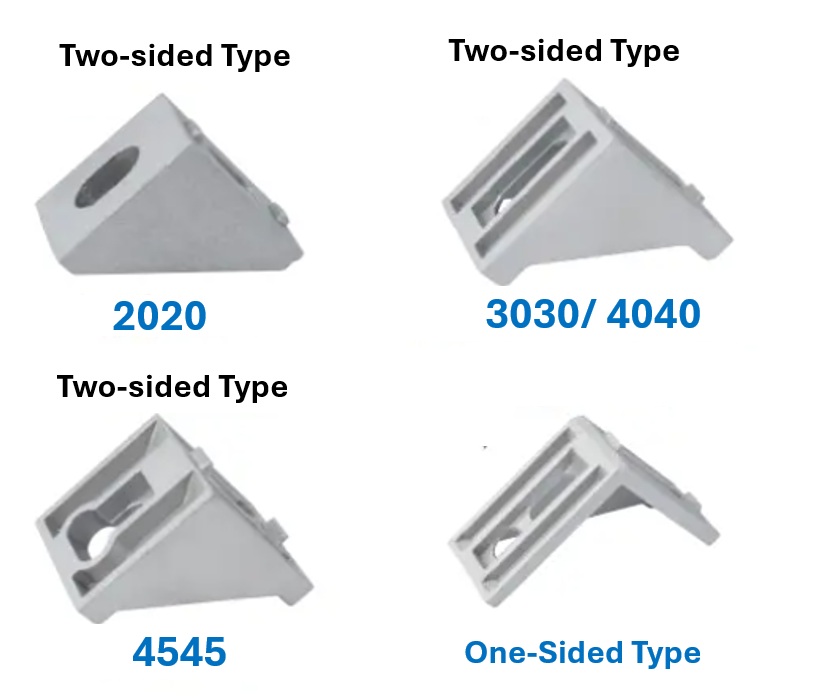

Single Side Tabbed Brackets For Aluminum Frames

Name: Single Side Tabbed Brackets For Aluminum Frames
Brand: MISUMI
Availability: InStock

Click this image to zoom it.

Move the mouse over or click the image to zoom

Volume Discount

Check FAQ of this product (2 items)

Brand :

MISUMI

MiSUMi Economy

MISUMI

Part Number :

LBSBK6-2020

LBSBK6-2020-C

LBSBK6-2020-C-SET

LBSBK6-2020-SET

LBSBK8-2858L

LBSBK8-2858L-C

LBSBK8-2858L-C-SET

LBSBK8-2858L-SET

LBSBK8-2858R-C-SET

LBSBK8-2858R-SET

LBSBK8-3030-C-SET

LBSBK8-3030-SET

LBSBK8-3680L

LBSBK8-3680L-C

LBSBK8-3680L-C-SET

LBSBK8-3680L-SET

LBSBK8-3680R-C-SET

LBSBK8-3680R-SET

LBSBK8-4040-C-SET

LBSBK8-4040-SET

LBSBK6-2020

Order Qty :
Total Price :

---
Days to ship :

---

Select part number to Order Now/ Add to Cart

CAD Download

Product Overview

European standard aluminum alloy profile die-cast Bracket, widely used in the right-angle connection of European standard aluminum alloy profiles; made of domestic commonly used ADC12 material, the surface is sandblasted, only one sidehas protrusions, which is suitable for the occasions where the European standard aluminum alloy profile is directly connected to the panel.

LBSBL6-2028 Product Drawings 1

Dimensional Drawing

Material: ADC12

Surface treatment: Sandblasting>

Specification Table

Part Number		Extrusion Size	L	L1	W	W₁	H	A	B	C	D	R	T	T₁	Applicable T Bolt and Nut*				Applicable Hex Socket Head Bolt and T Nut
Type	No.	Extrusion Size	L	L1	W	W₁	H	A	B	C	D	R	T	T₁	Bolt	Quantity	Nut	Quantity	Bolt	Quantity	Nut	Quantity
LBSBK	6－2020	2020	17	-	4.5	3	20	9	3	-	-	3.3	3	2	LTCM5-8	2	LNCFM5	2	E-GSCB5-8	2	LNHRN6-20-5	2
	8－3030	3030	28	-	6	7	35	13.5	8			3.5	4	3	LTTB8-6-16	2	LNCFM6	2	E-GSCB6-12	2	LNHRN8-30-6	2
	8－4040	4040	38	-	7.8	7.5	40	12	15			4.8	5	4	LTTB8-8-20	2	LNCFM8	2	E-GSCB8-15	2	LNHRN8-40-8 LNTRNM8-40-8**	2
	10－4545	4545	Refer to the 45 series dimensional drawing												LTTB10-8-25	2	LNCFM8	2	E-GSCB8-18	2	LNHRN10-45-8	2
	8 - 6060	6060	58	30	5.6	12	-	17.8	14.4	9.8	2	4.2	5.5	3.2	LTTB8-6-16	2	LNCFM6	2	E-GSCB6-12	2	LNHRN8-30-8	2

■Single-side type

Part Number		Extrusion Size	L	W	W₁	A	B	C	D	R	T	T₁	Applicable T Bolt and Nut*				Applicable Hex Socket Head Bolt and T Nut
Type	No.	Extrusion Size	L	W	W₁	A	B	C	D	R	T	T₁	Bolt	Quantity	Nut	Quantity	Bolt	Quantity	Nut	Quantity
LBSBK	8－2858L(R)	3060	58	29.5	5.5	17.25	14	11.5	1	4.3	5.4	3.3	LTTB8-6-16	2	LNCFM6	2	E-GSCB8-12	2	LNHRN8-30-8	2
	8－3680L(R)	4080	77.8	38	7.8	24.5	18.5	15.5	2.7	4.3	7	3.3	LTTB8-8-25	2	LNCFM8	2	E-GSCB8-18	2	LNHRN8-40-8 LNTRNM8-40-8**	2
	10－4288L(R)	4590	88	42	9.8	23.5	22.7	22.3	φ10.2	5.1	10.5	5.7	LTTB10-8-25	2	LNCFM8	2	E-GSCB8-20	2	LNHRN10-45-8	2

* Alteration SET component
** Spring nut, suitable for small core aluminum profile

■ Alteration
Bracket With protrusions on one side, it is suitable for occasions where sheet metal plates and panels need to be installed on one side during the construction of European standard aluminum alloy profiles.
Specified -SET alteration, can be delivered together with commonly used bolts and nuts.

Additional processing items	Additional processing code	Specifications
Additional panel mounting hole processing	C	Process threaded holes on the corner brackets for panel mounting. 6-2020 8-3030/8-4040/10-4545/ 8-6060/8-2858L(R)/8-3680L(R) 10-4288L（R）
Equipped with suitable bolts and nuts	SET	Equipped with appropriate bolts and nuts to fix the angle bracket to the profile. (Angle bracket + bolt + nut, added to the price of the angle bracket) When specifying SET, steel bolts and nuts are provided. ■T-bolt LTTB ■Flange nut LNCFM The 2020 specification is equipped with cylindrical head bolts LTCM5-8, T-nut LNTN6-20-5

Product Feature

1. Bracket Mainly adopt the slotted hole design, which is convenient to change the fixed position and easy to assemble.
2. The protrusion adopts the trapezoidal oblique angle design, which increases the strength and is not easy to break so that the assembly of the aluminum alloy profile is more stable.
3. The sandblasting surface treatment method is adopted. The appearance color is the same as the aluminum alloy profile, and after assembly, there will be no color difference in appearance color.

Example Use

■Profiles assembling example
European standard brackets assembling example

Related Products

Recommended product 1	Recommended product 2	Recommended product 3
(Economy series) European standard 20 series 2020 aluminum profiles Groove width 6mm	(Economy series) Special flat head bolt for European standard aluminum alloy profiles (50 pcs included)	(Economy series) Special T-nut for European standard aluminum profiles with groove width of 6mm (100 pcs included)

Part Number

Incomplete part number.
Please use left hand selections to complete a part number.

: 30; 45; 60

Part Number
LBSBK6-2020
LBSBK6-2020-C
LBSBK6-2020-C-SET
LBSBK6-2020-SET
LBSBK8-2858L
LBSBK8-2858L-C
LBSBK8-2858L-C-SET
LBSBK8-2858L-SET
LBSBK8-2858R-C-SET
LBSBK8-2858R-SET
LBSBK8-3030-C-SET
LBSBK8-3030-SET
LBSBK8-3680L
LBSBK8-3680L-C
LBSBK8-3680L-C-SET
LBSBK8-3680L-SET
LBSBK8-3680R-C-SET
LBSBK8-3680R-SET
LBSBK8-4040-C-SET
LBSBK8-4040-SET
LBSBK8-6060-C-SET
LBSBK8-6060-SET
LBSBK10-4288L
LBSBK10-4288L-C
LBSBK10-4288L-C-SET
LBSBK10-4288L-SET
LBSBK10-4288R-C-SET
LBSBK10-4288R-SET
LBSBK10-4545-C-SET
LBSBK10-4545-SET

Price	Minimum Order Qty.	Volume Discount	Days to Ship	Applicable Aluminum Frame Profile No.	Aluminum Frame Profile	Additional Cover Mounting Hole Machining	Accessories
₹ 28.00	1 Piece(s)	Available	Same day	6 mm Groove Width	2020	Not Provided	Not Provided
₹ 71.00	1 Piece(s)	Available	Same day	6 mm Groove Width	2020	C (Machining of Threaded Holes for Cap Mounting)	Not Provided
₹ 99.00	20 Piece(s)	Available	8 Day(s)	6 mm Groove Width	2020	C (Machining of Threaded Holes for Cap Mounting)	SET (Screw and Nut Set)
₹ 66.00	1 Piece(s)	Available	Same day	6 mm Groove Width	2020	Not Provided	SET (Screw and Nut Set)
₹ 66.00	1 Piece(s)	Available	Same day	8 mm Groove Width	2858	Not Provided	Not Provided
₹ 132.00	1 Piece(s)	Available	Same day	8 mm Groove Width	2858	C (Machining of Threaded Holes for Cap Mounting)	Not Provided
₹ 242.00	1 Piece(s)	Available	Same day	8 mm Groove Width	2858	C (Machining of Threaded Holes for Cap Mounting)	SET (Screw and Nut Set)
₹ 231.00	1 Piece(s)	Available	Same day	8 mm Groove Width	2858	Not Provided	SET (Screw and Nut Set)
₹ 242.00	1 Piece(s)	Available	Same day	8 mm Groove Width	2858	C (Machining of Threaded Holes for Cap Mounting)	SET (Screw and Nut Set)
₹ 231.00	1 Piece(s)	Available	Same day	8 mm Groove Width	2858	Not Provided	SET (Screw and Nut Set)
₹ 99.00	1 Piece(s)	Available	Same day	8 mm Groove Width	3030	C (Machining of Threaded Holes for Cap Mounting)	SET (Screw and Nut Set)
₹ 84.70	1 Piece(s)	Available	Same day	8 mm Groove Width	3030	Not Provided	SET (Screw and Nut Set)
₹ 119.90	1 Piece(s)	Available	Same day	8 mm Groove Width	3680	Not Provided	Not Provided
₹ 154.00	1 Piece(s)	Available	Same day	8 mm Groove Width	3680	C (Machining of Threaded Holes for Cap Mounting)	Not Provided
₹ 253.00	1 Piece(s)	Available	Same day	8 mm Groove Width	3680	C (Machining of Threaded Holes for Cap Mounting)	SET (Screw and Nut Set)
₹ 242.00	1 Piece(s)	Available	Same day	8 mm Groove Width	3680	Not Provided	SET (Screw and Nut Set)
₹ 264.00	1 Piece(s)	Available	Same day	8 mm Groove Width	3680	C (Machining of Threaded Holes for Cap Mounting)	SET (Screw and Nut Set)
₹ 253.00	1 Piece(s)	Available	Same day	8 mm Groove Width	3680	Not Provided	SET (Screw and Nut Set)
₹ 106.70	20 Piece(s)	Available	Same day	8 mm Groove Width	4040	C (Machining of Threaded Holes for Cap Mounting)	SET (Screw and Nut Set)
₹ 91.30	20 Piece(s)	Available	Same day	8 mm Groove Width	4040	Not Provided	SET (Screw and Nut Set)
₹ 231.00	1 Piece(s)	Available	Same day	8 mm Groove Width	6060	C (Machining of Threaded Holes for Cap Mounting)	SET (Screw and Nut Set)
₹ 220.00	1 Piece(s)	Available	Same day	8 mm Groove Width	6060	Not Provided	SET (Screw and Nut Set)
₹ 167.20	1 Piece(s)	Available	Same day	10 mm Groove Width	4288	Not Provided	Not Provided
₹ 176.00	1 Piece(s)	Available	Same day	10 mm Groove Width	4288	C (Machining of Threaded Holes for Cap Mounting)	Not Provided
₹ 280.50	1 Piece(s)	Available	Same day	10 mm Groove Width	4288	C (Machining of Threaded Holes for Cap Mounting)	SET (Screw and Nut Set)
₹ 275.00	1 Piece(s)	Available	Same day	10 mm Groove Width	4288	Not Provided	SET (Screw and Nut Set)
₹ 386.00	1 Piece(s)	Available	Same day	10 mm Groove Width	4288	C (Machining of Threaded Holes for Cap Mounting)	SET (Screw and Nut Set)
₹ 275.00	1 Piece(s)	Available	Same day	10 mm Groove Width	4288	Not Provided	SET (Screw and Nut Set)
₹ 269.50	1 Piece(s)	Available	Same day	10 mm Groove Width	4545	C (Machining of Threaded Holes for Cap Mounting)	SET (Screw and Nut Set)
₹ 266.20	1 Piece(s)	Available	Same day	10 mm Groove Width	4545	Not Provided	SET (Screw and Nut Set)

Basic Information

Material	ADC12	Surface Treatment	Sandblasting	Aluminum Frame Profile Series	European Standard
Bracket Type	Die Casting Angle Code	Shape/Type	Single Side Protrusion Type

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Frequently asked question (FAQ)

Question: What do the numbers after the bracket model mean?: Answer: The numbers are consistent with the series of aluminum alloy profiles, and most of them can be used as long as they correspond.
Question: Is there any way to choose matching bolts and nuts?: Answer: The alteration function of the bracket product will solve your problem, “-SET” is specified after the model, we will provide you with appropriate bolts and nuts to mount the bracket onto the profile. It can be selected with ease of mind. Example: LBSBL6-2028-SET
