Configure

Part number has not been determine

(24,675 Part Numbers Available)

Configure Remaining Specifications

Part Number Complete

C-100.10.12

Type Cover Type Inner Height A Inner Width C Bending Radius R Link Pitch P Cable Insertion Surface Inserting Cables Number of Links Outer Height B Outer Width W Connector Specifications Separator type CAD Days to Ship

Specification/Dimensions

Type
- Square Shape
Clear
Cover Type
- Standard
  - Slit Type
Clear
Inner Height A(mm)
10

15

20

32
Clear
Inner Width C(mm)
10

15

20

25

30

40

50

60

70

80
Clear
Bending Radius R(mm)
18

28

38

48

50

60

75

100

Joints in one set
Clear
Link Pitch P(mm)
20

30
Clear
Cable Insertion Surface
- Not Provided
- Outer Radius Mount
- Inner Radius Mount
Clear
Inserting Cables
- Snap (Open-Close)
Clear
Number of Links
10

10 (Length 200mm)

10 (Length 300mm)

11

11 (Length 220mm)

11 (Length 330mm)

12

12 (Length 240mm)

12 (Length 360mm)

13

13 (Length 260mm)

13 (Length 390mm)

14

14 (Length 280mm)

14 (Length 420mm)

15

15 (Length 300mm)

15 (Length 450mm)

16

16 (Length 320mm)

16 (Length 480mm)

17

17 (Length 340mm)

17 (Length 510mm)

18

18 (Length 360mm)

18 (Length 540mm)

19

19 (Length 380mm)

19 (Length 570mm)

20

20 (Length 400mm)

20 (Length 600mm)

21

21 (Length 420mm)

21 (Length 630mm)

22

22 (Length 440mm)

22 (Length 660mm)

23

23 (Length 460mm)

23 (Length 690mm)

24

24 (Length 480mm)

24 (Length 720mm)

25

25 (Length 500mm)

25 (Length 750mm)

26

26 (Length 520mm)

26 (Length 780mm)

27

27 (Length 540mm)

27 (Length 810mm)

28

28 (Length 560mm)

28 (Length 840mm)

29

29 (Length 580mm)

29 (Length 870mm)

30

30 (Length 600mm)

30 (Length 900mm)

31

31 (Length 620mm)

31 (Length 930mm)

32

32 (Length 640mm)

32 (Length 960mm)

33

33 (Length 660mm)

33 (Length 990mm)

34

34 (Length 680mm)

34 (Length 1020mm)

35

35 (Length 700mm)

35 (Length 1050mm)

36

36 (Length 720mm)

36 (Length 1080mm)

37

37 (Length 740mm)

37 (Length 1110mm)

38

38 (Length 760mm)

38 (Length 1140mm)

39

39 (Length 780mm)

39 (Length 1170mm)

40

40 (Length 800mm)

40 (Length 1200mm)

41

41 (Length 820mm)

41 (Length 1230mm)

42

42 (Length 840mm)

42 (Length 1260mm)

43

43 (Length 860mm)

43 (Length 1290mm)

44

44 (Length 880mm)

44 (Length 1320mm)

45

45 (Length 900mm)

45 (Length 1350mm)

46

46 (Length 920mm)

46 (Length 1380mm)

47

47 (Length 940mm)

47 (Length 1410mm)

48

48 (Length 960mm)

48 (Length 1440mm)

49

49 (Length 980mm)

49 (Length 1470mm)

50

50 (Length 1000mm)

50 (Length 1500mm)

51

51 (Length 1020mm)

51 (Length 1530mm)

52

52 (Length 1040mm)

52 (Length 1560mm)

53

53 (Length 1060mm)

53 (Length 1590mm)

54

54 (Length 1080mm)

54 (Length 1620mm)

55

55 (Length 1100mm)

55 (Length 1650mm)

56

56 (Length 1120mm)

56 (Length 1680mm)

57

57 (Length 1140mm)

57 (Length 1710mm)

58

58 (Length 1160mm)

58 (Length 1740mm)

59

59 (Length 1180mm)

59 (Length 1770mm)

60

60 (Length 1200mm)

60 (Length 1800mm)

61

61 (Length 1220mm)

61 (Length 1830mm)

62

62 (Length 1240mm)

62 (Length 1860mm)

63

63 (Length 1260mm)

63 (Length 1890mm)

64

64 (Length 1280mm)

64 (Length 1920mm)

65

65 (Length 1300mm)

65 (Length 1950mm)

Joints in one set

Single section without joints
Clear
Outer Height B(mm)
- 14
- 19
- 25
- 39
Clear
Outer Width W(mm)
17

18

23

26

27

28

36

37

38

47

48

51

58

61

71

81

91
Clear
Connector Specifications
100.10.12

100.20.12

100.40.12

150.15.12

150.20.12

150.30.12

150.40.12

200.15.12

200.25.12

200.40.12

200.50.12

200.60.12

200.80.12

320.50.12

320.60.12

320.80.12
Clear

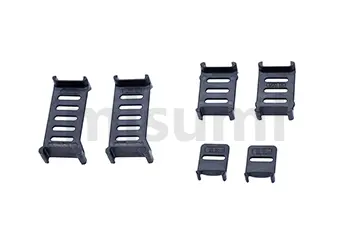

Separator(Piece)
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- Not Provided
Clear
type
- C-MPD
- C-MPU
- Joints
- Links
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

Same day

1 Day(s) or Less

2 Day(s) or Less

7 Day(s) or Less

8 Day(s) or Less
Clear

Specify Alterations

Cable Carriers Flap Open-Close

Volume Discount

Check FAQ of this product (2 items)

Brand :

MiSUMi Economy

Part Number :

C-100.10.12

C-100.20.12

C-100.30.12

C-100.40.12

C-150.10.12

C-150.15.12

C-150.20.12

C-150.30.12

C-150.40.12

C-150.50.12

C-200.15.12

C-200.25.12

C-200.40.12

C-200.50.12

C-200.60.12

C-200.70.12

C-200.80.12

C-320.40.12

C-320.50.12

C-320.60.12

C-100.10.12

Order Qty :
Total Price :

---
Days to ship :

---

Select part number to Order Now/ Add to Cart

CAD Download

Product Overview of Cable Carriers

It can prevent the Cable Carriers and wires connected to the moving parts of the equipment from twisting, stretching and entanglement due to movement. It is suitable for supporting and guiding multiple cables connected to the linear motion part.

Drag Chain Feature 1

Product Feature of Cable Carriers

1. Cable Carriers Two-piece structure, low cost
2. Small size and light weight, suitable for narrow space
3. Crossbar is easy to open, assemble and disassemble
4. Cable Carriers Low noise: internal special noise reduction structure
5. Rich variety of specifications
6. Open along the inner and outer sides of the bending radius

· Imported PA materials are selected
· Shipping form is upgraded
Product Features

· Comparison of different materials performance
Product Feature 2

Specifications Overview of Cable Carriers

Part Number		B	C	W	P	R	Number of Links	Separator type	Number of separators	Cable insertion side	H	Required Space Height HF	Recommended Height Safety Margin	Bi	E	Number of Joint Teeth
Type	A	B	C	W	P	R					H			Bi	E
Type	Interior Height	Exterior Height	Interior Width	Exterior Width	Pitch	Bending Radius					Mouting Height			mm	mm
C－MPU (Crossbar Opens Outside)	10	14	10	17	20	18 28 38	10~65	－	－	Outer	50 70 90	60 80 100	100 130 160	10	－	1
			20	27										20	－	2
			30	37										30	22	3
			40	47										40	32	4
	15	19	10	18		28 38 48		S15 S20 S32	4～65		75 95 115	90 110 130	130 160 195	10	－	1
			15	23										15	－	2
			20	28										20	－	2
			30	38										30	22	3
			40	48										40	32	4
			50	58										50	42	5
	20	25	15	26	30	38 48 75 100					101 121 175 225	121 141 195 245	180 215 300 375	15	-	2
			25	36										25	10	3
			40	51										40	23	4
			50	61										50	35	5
			60	71										60	48	6
			70	81										70	54	7
			80	91										80	65	8
	32	39	40	51		50 60 75 100					139 159 189 239	164 184 214 264	220 250 300 375	40	25	4
			50	61										50	37	5
			60	71										60	48	6
			80	91										80	65	8
C－MPD (Crossbar Opens Inside)	10	14	10	17	20	18 28 38		－	－	Inner	50 70 90	60 80 100	100 130 160	10	－	1
			20	27										20	－	2
			30	37										30	22	3
			40	47										40	32	4
	15	19	10	18		28 38 48		S15 S20 S32	4～65		75 95 115	90 110 130	130 160 195	10	－	1
			15	23										15	－	2
			20	28										20	－	2
			30	38										30	22	3
			40	48										40	32	4
			50	58										50	42	5
	20	25	15	26	30	38 48 75 100					101 121 175 225	121 141 195 245	180 215 300 375	15	－	2
			25	36										25	10	3
			40	51										40	23	4
			50	61										50	35	5
			60	71										60	48	6
			70	81										70	54	7
			80	91										80	65	8
	32	39	40	51		50 60 75 100					139 159 189 239	164 184 214 264	220 250 300 375	40	25	4
			50	61										50	37	5
			60	71										60	48	6
			80	91										80	65	8

Dimensional Drawing of Cable Carriers

Usage Method of Cable Carriers

Example Use of Cable Carriers

Precautions of Cable Carriers

Cable Carriers If it is a brand new design, there may not be enough links in the drag chain. It is recommended to choose Link 1 or 2 as a spare and adjust (disassemble) when installing the device.
Please confirm whether the cable has too much contact with the inner and outer sides of the cable protection chain in whole stroke range

Part Number

Incomplete part number.
Please use left hand selections to complete a part number.

: 30; 45; 60

1
2
3
4
5
Next >>

Part Number
C-100.10.12
C-100.20.12
C-100.30.12
C-100.40.12
C-150.10.12
C-150.15.12
C-150.20.12
C-150.30.12
C-150.40.12
C-150.50.12
C-200.15.12
C-200.25.12
C-200.40.12
C-200.50.12
C-200.60.12
C-200.70.12
C-200.80.12
C-320.40.12
C-320.50.12
C-320.60.12
C-320.80.12
C-MPD10-10-18-0
C-MPD10-10-18-10
C-MPD10-10-18-11
C-MPD10-10-18-12
C-MPD10-10-18-13
C-MPD10-10-18-14
C-MPD10-10-18-15
C-MPD10-10-18-16
C-MPD10-10-18-17
C-MPD10-10-18-18
C-MPD10-10-18-19
C-MPD10-10-18-20
C-MPD10-10-18-21
C-MPD10-10-18-22
C-MPD10-10-18-23
C-MPD10-10-18-24
C-MPD10-10-18-25
C-MPD10-10-18-26
C-MPD10-10-18-27
C-MPD10-10-18-28
C-MPD10-10-18-29
C-MPD10-10-18-30
C-MPD10-10-18-31
C-MPD10-10-18-32
C-MPD10-10-18-33
C-MPD10-10-18-34
C-MPD10-10-18-35
C-MPD10-10-18-36
C-MPD10-10-18-37
C-MPD10-10-18-38
C-MPD10-10-18-39
C-MPD10-10-18-40
C-MPD10-10-18-41
C-MPD10-10-18-42
C-MPD10-10-18-43
C-MPD10-10-18-44
C-MPD10-10-18-45
C-MPD10-10-18-46
C-MPD10-10-18-47

Price	Minimum Order Qty.	Volume Discount	Days to Ship	Type	Cover Type	Inner Height A (mm)	Inner Width C (mm)	Bending Radius R (mm)	Link Pitch P (mm)	Cable Insertion Surface	Inserting Cables	Number of Links	Body Material	Outer Height B (mm)	Outer Width W (mm)	Connector Specifications	Separator (Piece)
₹ 4,378.00	1 Piece(s)		1 Day(s)	-	-	10	10	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,417.00	1 Piece(s)		1 Day(s)	-	-	10	20	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,443.00	1 Piece(s)		2 Day(s)	-	-	10	30	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,459.00	1 Piece(s)		2 Day(s)	-	-	10	40	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,416.00	1 Piece(s)	Available	2 Day(s)	-	-	15	10	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,416.00	1 Piece(s)	Available	1 Day(s)	-	-	15	15	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,437.00	1 Piece(s)		1 Day(s)	-	-	15	20	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,452.00	1 Piece(s)	Available	1 Day(s)	-	-	15	30	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,468.00	1 Piece(s)		1 Day(s)	-	-	15	40	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,489.00	1 Piece(s)	Available	2 Day(s)	-	-	15	50	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,452.00	1 Piece(s)	Available	2 Day(s)	-	-	20	15	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,457.00	1 Piece(s)		1 Day(s)	-	-	20	25	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,474.00	1 Piece(s)		1 Day(s)	-	-	20	40	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,497.00	1 Piece(s)		1 Day(s)	-	-	20	50	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,496.00	1 Piece(s)	Available	2 Day(s)	-	-	20	60	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,521.00	1 Piece(s)		2 Day(s)	-	-	20	70	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,525.00	1 Piece(s)		2 Day(s)	-	-	20	80	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,526.00	1 Piece(s)	Available	2 Day(s)	-	-	32	40	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,540.00	1 Piece(s)	Available	1 Day(s)	-	-	32	50	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,562.00	1 Piece(s)	Available	1 Day(s)	-	-	32	60	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,584.00	1 Piece(s)	Available	1 Day(s)	-	-	32	80	Joints in one set	-	Not Provided	-	Joints in one set	-	-	-	-	Not Provided
₹ 4,259.00	1 Piece(s)	Available	1 Day(s)	-	-	10	10	18	-	Inner Radius Mount	-	Single section without joints	-	-	-	-	Not Provided
₹ 1,988.00	1 Piece(s)	Available	Same day	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	10	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 2,020.47	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	11	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 2,107.45	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	12	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 2,191.54	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	13	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 2,276.93	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	14	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 2,361.05	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	15	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 2,446.74	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	16	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 2,530.83	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	17	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 1,382.00	1 Piece(s)	Available	Same day	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	18	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 2,700.38	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	19	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 2,785.96	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	20	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 1,513.00	1 Piece(s)	Available	Same day	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	21	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 2,957.01	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	22	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 3,039.77	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	23	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 3,125.23	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	24	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 3,209.39	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	25	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 3,296.29	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	26	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 3,380.32	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	27	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 3,465.89	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	28	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 3,549.99	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	29	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 3,634.11	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	30	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 3,719.54	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	31	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 3,805.05	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	32	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 3,889.40	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	33	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 3,974.72	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	34	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 4,059.03	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	35	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 4,145.89	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	36	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 4,228.44	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	37	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 4,313.94	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	38	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 4,398.36	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	39	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 4,483.60	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	40	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 4,569.29	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	41	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 4,654.62	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	42	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 4,737.53	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	43	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 4,822.91	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	44	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 4,908.34	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	45	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 4,994.07	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	46	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided
₹ 5,078.29	1 Piece(s)	Available	7 Day(s)	Square Shape	[Standard] Slit Type	10	10	18	20	Inner Radius Mount	Snap (Open-Close)	47	[Plastic] PA + Glass Fiber	14	17	100.10.12	Not Provided

1
2
3
4
5
Next >>

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Frequently asked question (FAQ)

Question: What happens if I have too many chain links?: Answer: When running horizontally, the drag chain may be bent or damaged due to the weight of the product and the weight of the storage cable. (Please check the capacity chart and determine the number of links.)
Question: Is it possile to freely add or delete the number of links in the drag chain?: Answer: Yes, the number of chain links can be added or deleted according to the length of the drag chain required for installation.

ものづくりの、明日を支える。MISUMI-VONA 生産材コマース

Search by Category / Brand

Search by Category

How can we improve?

Configure

Specification/Dimensions

Type

Cover Type

Inner Height A(mm)

Inner Width C(mm)

Bending Radius R(mm)

Link Pitch P(mm)

Cable Insertion Surface

Inserting Cables

Number of Links

Outer Height B(mm)

Outer Width W(mm)

Connector Specifications

Separator(Piece)

type

CAD

Days to Ship

Specify Alterations

Cable Carriers Flap Open-Close

Copy Part Number URL to Clipboard

Product Overview of Cable Carriers

Product Feature of Cable Carriers

Specifications Overview of Cable Carriers

Dimensional Drawing of Cable Carriers

Usage Method of Cable Carriers

Example Use of Cable Carriers

Precautions of Cable Carriers

Part Number

Frequently asked question (FAQ)

Payment Method

Customer Service

My Account

About MISUMI

Related Sites

Social Media

MISUMI India Contact

Customer Service

日本語でのお問い合わせはジャパンデスクまで
