8-45 Series Aluminum Frame - Square 45x45mm, 3 Side Slots, A6N01SS-T5 Aluminum
- Volume Discount
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- Order Qty :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
(i)
Caution
- Additional freight and delivery charge are added to items longer than 2600.1mm
Similar Products
Product DetailProduct Description
Aluminum Frame Series 8-45, Square shape 45 x 45mm, 3- Side Slots with Slot width 10mm
Surface treatment is not applied to cut surfaces and additional machining parts.
Note that, for some of the types shown here, order might be unable to be received by the MISUMI Thailand, Malaysia, Indonesia, and/or India offices.
[ ! ]Cut surfaces and altered parts are not surface treated.

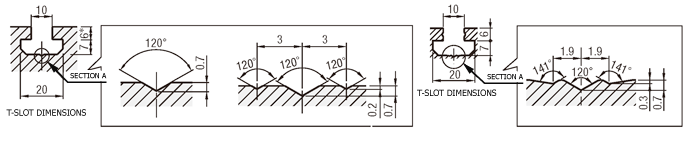

■8-45 Series
Aluminum Extrusions with 10mm Slot Width. Applicable to M8 Screws.
Specifications
| Part Number | - | L |
| HFSF8-4545 | - | 800 |
| KHFSF8-4545 | - | 4000 |
■Configurable Length Extrusion
| Type | [ M ]Material | [ S ]Surface Treatment | Part Number | L 0.5mm Increment | Mass kg/m | Sectional Area mm2 | Cross Sectional Moment of Inertia mm4 | |
| ℓx | ℓy | |||||||
| HFS | A6N01SS-T5 | Clear Anodize | HFSF8-4545 | 50~4000 | 1.97 | 730 | 13.88x104 | 14.58x104 |
| HFS | A6N01SS-T5 | Black Anodize | HFSFB8-4545 | 50~4000 | 1.97 | 730 | 13.88x104 | 14.58x104 |
| HFSL | A6N01SS-T5 | Clear Anodize | HFSLF8-4545 | 50~4000 | 1.6 | 590 | 10.88x104 | 11.33x104 |
| EFS | A6N01SS-T5 | Clear Anodize | EFSF8-4545 | 50~4000 | 1.83 | 677 | 14.58x104 | 15.00x104 |
| GFS | A6061SS-T6 Equivalent | Clear Anodize | GFSF8-4545 | 50~4000 | 3.16 | 1172 | 24.54x104 | 23.36x104 |
| NEFS | A6063S-T5 | Clear Anodize | NEFSF8-4545 | 50~4000 | 1.83 | 677 | 14.58x104 | 15.00x104 |
[ ! ]For some product types, up to 6,000mm length is available.
[ ! ]Some extrusions are not applicable. For details, refer to "Information about Non-FA Catalog Standard Product Services" (P.131) and contact the relevant person in charge at MISUMI.
■Fixed Length Extrusion (Effective Length 4000mm)
[ ! ]Part numbers beginning with the character "K" indicate Fixed Length Extrusion.
| Type | [ M ]Material | [ S ]Surface Treatment | Part Number | L mm |
Sectional Area mm2 | Cross Sectional Moment of Inertia mm4 | |
| ℓx | ℓy | ||||||
| HFS | A6N01SS-T5 | Clear Anodize | KHFSF8-4545 | 4000 | 730 | 13.88x104 | 14.58x104 |
| HFS | A6N01SS-T5 | Black Anodize | KHFSFB8-4545 | 4000 | 730 | 13.88x104 | 14.58x104 |
| HFSL | A6N01SS-T5 | Clear Anodize | KHFSLF8-4545 | 4000 | 590 | 10.88x104 | 11.33x104 |
| EFS | A6N01SS-T5 | Clear Anodize | KEFSF8-4545 | 4000 | 677 | 14.58x104 | 15.00x104 |
| GFS | A6061SS-T6 Equivalent | Clear Anodize | KGFSF8-4545 | 4000 | 1172 | 24.54x104 | 23.36x104 |
| NEFS | A6063S-T5 | Clear Anodize | KNEFSF8-4545 | 4000 | 677 | 14.58x104 | 15.00x104 |
[ ! ]Effective length of 4000mm indicates extrusions with an effective length of 4000mm or more. The actual length including marginal grip is more than 4000mm (several dozen mm). Fixed Length Extrusions must be cut by users thus the exact length cannot be specified.
Alterations
By using MISUMI's Long Aluminum Frame specification from the following additions, the high structure reassembling is freely possible.
Depending on classifications and sizes, there are some inapplicable frames.
For more information, please read the inapplicable listed on each page description table.
Inside the page description table, the items with "-" mark indicates the inapplicable.
| Category | Alteration Names | Codes | Explanations | Catalog Page |
| Aluminum Frame Alteration Summary/Chamfer/Part# Labeling Service | P2-755&756 | |||
| End Tapping | End Tapping on Center Hole | LTP/RTP/TPW LHP/RHP/HPW | Add tappings on frame ends. | P2-757 |
| End Tapping 4 Corner Holes | LSP/RSP/SPW | P2-768 | ||
| Specify How to Cut | Precision Cut | SC | Change total length tolerance. (Ｌ±0.5→Ｌ±0.2) [ ! ]Available only for Ｌ≦1500 | P2-758 |
| 45 deg Cut | L_T45/R_T45 | Cut at 45 deg angle. | ||
| Wrench Access Holes | Wrench Access Hole at Fixed Position | LWP/RWP | Add wrench access holes at fixed position for blind joints. | P2-759&760 |
| Wrench Access Hole at Specified Position | AH/BH/AV/BV | Add wrench access holes at specified position for blind joints. | P2-761&762 | |
| Counterbores | Counterbores at Specified Position | Z6/XA100 | Add counterbores at specified position. Use the holes for connecting the frames and a table top. | P2-763 |
| Holes for Specific Blind Joint Type | D Hole | LDH/RDH | Add holes needed for Single Joint connection. | P2-764 |
| S Hole | LSH/RSH | Add holes needed for pre-assembly double joint connection. | P2-765 | |
| M Hole | LMH/RMH | Add holes needed for post-assembly double joint connection. | P2-766 | |
| L Hole | JLP/KLP | Add holes needed for parallel joint connection. | P2-767 | |
| Other Alterations | GNFS/GFS Series End Tapping | LTS/RTS/TSW | Add end tappings on high rigidity frames. | P2-768 |
| HFSR Series End Tapping | LTS/RTS/TSW | Add end tappings needed for adding a protection cover on the end fo HFSR series frame. | ||
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number |
|---|
| EFSF8-4545-[50-4000/0.5] |
| GFSF8-4545-[50-4000/0.5] |
| HFSF8-4545-[50-4000/0.5] |
| HFSFB8-4545-[50-4000/0.5] |
| HFSLF8-4545-[50-4000/0.5] |
| KEFSF8-4545-4000 |
| KGFSF8-4545-4000 |
| KHFSF8-4545-4000 |
| KHFSFB8-4545-4000 |
| KHFSLF8-4545-4000 |
| KNEFSF8-4545-4000 |
| NEFSF8-4545-[50-4000/0.5] |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | RoHS | Extrusion Type_ | Surface Treatment | Material | L Dimension Fixed, Specified | Overall Length L (Effective Length) (mm) | Overall Length L (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 6 Day(s) or more | 10 | EFS (Lightweight) | Clear Anodize | A6N01SS-T5 | Configurable | - | 50 ～ 4000 | ||
- | 1 Piece(s) | 6 Day(s) or more | 10 | GFS (High Rigidity) | Clear Anodize | A6061SS-T6 Equivalent | Configurable | - | 50 ～ 4000 | ||
- | 1 Piece(s) | 6 Day(s) or more | - | HFS (Standard) | Clear Anodize | A6N01SS-T5 | Configurable | - | 50 ～ 4000 | ||
- | 1 Piece(s) | 6 Day(s) or more | 10 | HFS (Standard) | Black Anodize | A6N01SS-T5 | Configurable | - | 50 ～ 4000 | ||
- | 1 Piece(s) | 6 Day(s) or more | 10 | HFSL (Lightweight, Standard) | Clear Anodize | A6N01SS-T5 | Configurable | - | 50 ～ 4000 | ||
₹ 218,676.00 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | EFS (Lightweight) | Clear Anodize | A6N01SS-T5 | Stationary | 4000 | - | |
₹ 205,623.36 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | GFS (High Rigidity) | Clear Anodize | A6061SS-T6 Equivalent | Stationary | 4000 | - | |
₹ 218,793.00 | 1 Piece(s) | Available | 6 Day(s) or more | - | HFS (Standard) | Clear Anodize | A6N01SS-T5 | Stationary | 4000 | - | |
₹ 222,650.00 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | HFS (Standard) | Black Anodize | A6N01SS-T5 | Stationary | 4000 | - | |
₹ 217,117.00 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | HFSL (Lightweight, Standard) | Clear Anodize | A6N01SS-T5 | Stationary | 4000 | - | |
₹ 217,805.00 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | NEFS (Economy) | Clear Anodize | A6063S-T5 | Stationary | 4000 | - | |
- | 1 Piece(s) | 6 Day(s) or more | 10 | NEFS (Economy) | Clear Anodize | A6063S-T5 | Configurable | - | 50 ～ 4000 |
