Select part number to Order Now/ Add to Cart

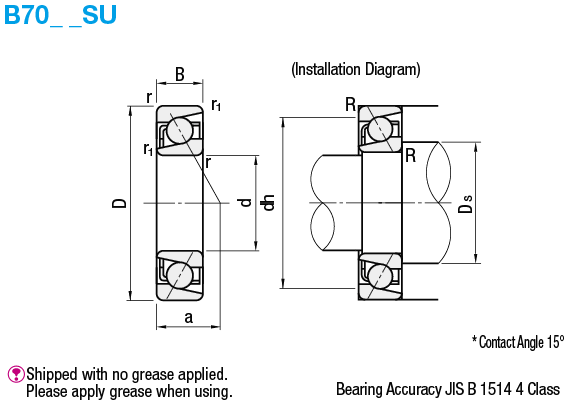

[Product Specifications]Shield material and shape: open type, inner and outer ring materials: SUJ2, outer ring type: flat, precision (JIS): class 4.
Part Number |
---|
B7000SU |
B7001SU |
B7002SU |
B7003SU |
B7004SU |
B7005SU |
B7006SU |
B7007SU |
B7008SU |
B7009SU |
B7010SU |
Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | RoHS | Inner Dia. d (Ø) | Outer Dia. D (Ø) | Width B (or T) (mm) | Basic Load Rating Cr (Dynamic) (N) | Allowable Rotational Speed (rpm) | Basic Load Rating Cor (Static) (N) |
---|---|---|---|---|---|---|---|---|---|---|---|
₹ 3,257.06 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | 10 | 26 | 8 | 5300 | 63900 | 2490 | |
₹ 3,332.05 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | 12 | 28 | 8 | 5800 | 57500 | 2900 | |
₹ 3,824.90 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | 15 | 32 | 9 | 6250 | 49000 | 3400 | |
₹ 3,953.47 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | 17 | 35 | 10 | 6600 | 44300 | 3800 | |
₹ 4,521.31 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | 20 | 42 | 12 | 11100 | 37100 | 6550 | |
₹ 5,024.87 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | 25 | 47 | 12 | 11700 | 32000 | 7400 | |
₹ 5,528.42 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | 30 | 55 | 13 | 15100 | 27100 | 10300 | |
₹ 6,331.97 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | 35 | 62 | 14 | 19100 | 17600 ~ 23800 | 13700 | |
₹ 7,874.79 | 1 Piece(s) | Available | 6 Day(s) | 10 | 40 | 68 | 15 | 20600 | 21300 | 15900 | |
₹ 9,824.74 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | 45 | 75 | 16 | 24400 | 19200 | 19300 | |
₹ 11,478.98 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | 50 | 80 | 16 | 26000 | 17700 | 21900 |
Loading...
Raceway Ring Shape | Angular Contact Ball (Single Row) | Inner/Outer Ring Material | SUJ2 Equiv. | Bearing Type | Open |
---|---|---|---|---|---|
Outer Ring Type | Flat | Precision (JIS) | Class 4 | Specifications, Environment | Standard |
Load Direction | Radial | Number of Raceway Ring Rows | Single Row | Size Standards | Metric System |
Rolling Element Material | SUJ2 | Combination of Angular Contact Ball Bearings | Single Row | Seal Part Structure | Open |
