Non-backlash Pulleys S8M Type
Brand :
MISUMI
Caution
- Please note that the swaged flange options, NFC, RFC, and LFC, are not reflected in the CAD data.
- Please check the content on our website as the PDF does not contain the most up-to-date information.

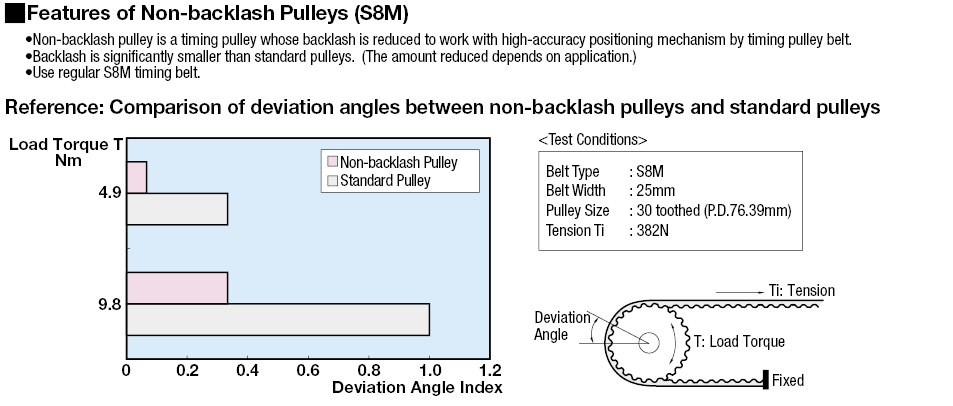

Product Description
[Material]
· Pulley: Extra super duralumin aluminum alloy, S45C equivalent, SUS304
· Flange: Aluminum alloy, SPCC
[Surface treatment]
· Clear anodize, black anodize, hard clear anodize (firm hardness 300HV~), electroless nickel plating, black iron oxide coating
| Part Number | [ M ] Material | [ S ] Surface Treatment | ||||
| Belt Width 15mm | Belt Width 25mm | Belt Width 30mm | Belt Width 40mm | Pulley | Flange | |

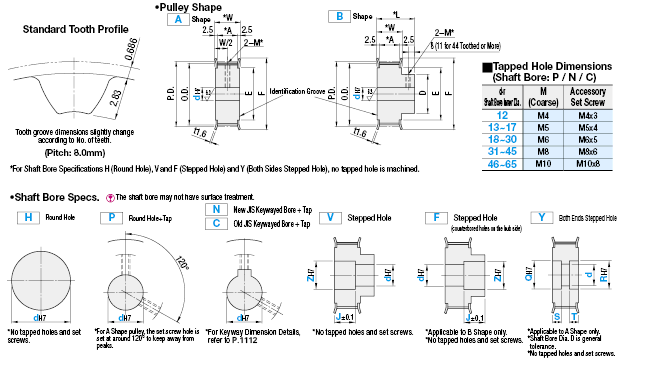

| A: 17 W: 22 L: 37(42) | A: 28 W: 33 L: 48(53) | A: 33 W: 38 L: 53(58) | A: 44 W: 49 L: 64(69) | |||
| BLPA_ _S8M150 | BLPA_ _S8M250 | BLPA_ _S8M300 | BLPA_ _S8M400 | 7075 Aluminum Alloy (Extra Super Duralumin) | A5052 | Clear Anodize |
| BLPK_ _S8M150 | BLPK_ _S8M250 | BLPK_ _S8M300 | BLPK_ _S8M400 | Hard Clear Anodize* | ||
| BLPN_ _S8M150 | BLPN_ _S8M250 | BLPN_ _S8M300 | BLPN_ _S8M400 | Electroless Nickel Plating | ||
| BLPT_ _S8M150 | BLPT_ _S8M250 | BLPT_ _S8M300 | BLPT_ _S8M400 | S45C | SPCC | - |
| BLPM_ _S8M150 | BLPM_ _S8M250 | BLPM_ _S8M300 | BLPM_ _S8M400 | Black Oxide | ||
| BLPP_ _S8M150 | BLPP_ _S8M250 | BLPP_ _S8M300 | BLPP_ _S8M400 | Electroless Nickel Plating | ||
[ ! ]L Dimensions in () are for 44~60 toothed pulleys.
*Hard Anodize Treatment: Film Hardness 300HV~
[ ! ] Due to vibrations during transportation, the set screw may become detached from the main body.
