Product Detail
Air Regulator
Move the mouse over or click the image to zoom
- Volume Discount
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
(i)
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
-
- Order Qty. :
-
Check Price / Days to ship
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
Check Price / Days to ship
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
Check Price / Days to ship
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Similar Products
-
- Order Qty. :
-
Check Price / Days to ship
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Product Detail
Product Description
[Features]·Pressure reducing valve that can adjust pressure. ·It comes with a pressure gauge and a bracket.
[ A ]Accessory: Pressure Gauge 1 pc., Bracket 1 pc.

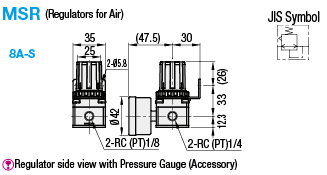

Specifications
| Part Number | - | Nomi. Filtration Rating |
| MSAF8A-S | - | 40 |
| Part Number | Rc(PT) | Operating Pressure MPa | Pressure Setting Range MPa | Pressure Resistance MPa | Ambient Temperature Range (°C) | Applicable Fluid | Mass | Unit Price | |
| Type | No. | (g) | |||||||
| MSR | 8A-S | 1/4 | 0.05~1.0 | 0.05~0.85 | 1.5 | 5~60 | Air | 250 | |
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number |
|---|
| MSR8A-S |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | RoHS |
|---|---|---|---|---|---|
₹ 4,192.38 | 1 Piece(s) | Available | 6 Day(s) or more | 10 |
| Part Number |
|---|
Loading...
More Information
This graph shows that when the primary pressure is constant at 0.7 MPa, the secondary set pressure drops according to the flow rate used.
Basic Information
| Regulator, Pressure Boosting Valve | Others | Regulator Type | Standard | Applicable Fluid | Compressed Air |
|---|---|---|---|---|---|
| Shape | Standard | Set Pressure Range(MPa) | 0.05～0.85 | Supply Side, Connection Dia. | 1/4 |
| Operating Pressure Range(MPa) | 0.05::1.0 | Flow Direction | (Right) | Mass(g) | 250 |
| Nominal (No.) | 8A-S | Ambient Temperature Range(°C) | 5~60 | Operating Pressure Range(MPa) | 0.05~1.0 |
Please check the type/dimensions/specifications of the part MSR8A-S in the Air Regulator series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
