- Notice of End of Sales for Economy Series Pneumatic Equipment Category. More information.
Product DetailSpecification/Dimensions
-
Applicable Fluid
- Compressed Air
-
Supply Side, Connection Dia.
-
Flow Direction
- (Right)
-
Control Side, Connection Type
- Others
-
Control Side, Connection Dia.
- Ø6
- Ø6
-
Mass(g)
- 210
-
Nominal (No.)
- 1
- 8A-S
-
Ambient Temperature Range(°C)
- 5~60
-
Operating Pressure Range(MPa)
- 0~1.0
-
Type
- Pressure Gauge Only
- Regulators with Filter
-
type
- MSFR
- MSPGN1
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 6 Day(s) or Less
Specify Alterations
Air Regulators/With Filter
Move the mouse over or click the image to zoom
- Volume Discount
You can add up to 6 items per a category to the compare list.
Brand :
Part Number :
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- Starting From :
- 1,574₹/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Similar Products
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Product Detail
Product Description
[Features]·Pressure reducing valve with an air filter. ·The pressure gauge is sold separately.
・Materials

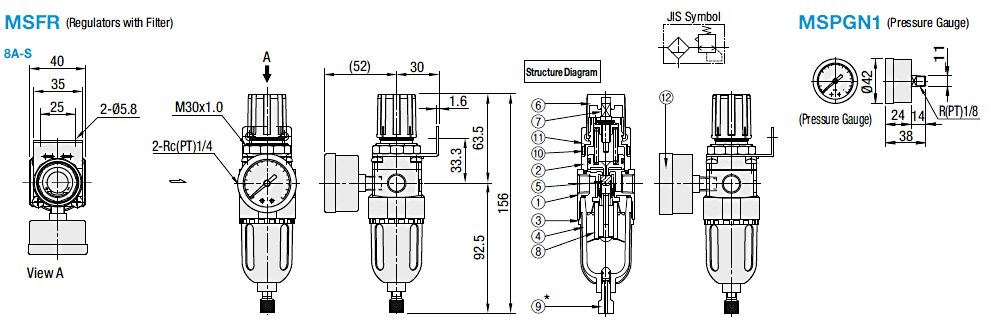

■Component List
■Component List
| No. | Name | [ M ]Material | No. | Name | [ M ]Material |
| 8A-S | 8A-S | ||||
| ① | Main Body | ADC10 | ⑦ | Adjusting Screw | SS400 |
| ② | Bonnet | PBT | ⑧ | Element | PE |
| ③ | Case Guard | ADC12 | ⑨ | Drain Valve | C3604B |
| ④ | Case | PC | ⑩ | Lock Nut | A6063 |
| ⑤ | Valve | Nitrile Rubber | ⑪ | Bracket | SPC |
| ⑥ | Handle | POM | ⑫ | Pressure Gauge | - |
[ A ] Accessories: (MSFR only) Pressure Gauge 1 pc., Bracket 1 pc.
Specifications
| Part Number |
| MSFR8A-S |
| Part Number | Rc (PT) | Nomi. Filtration Rating (µm) | Operating Pressure (MPa) | Pressure Setting Range MPa | Pressure Resistance MPa | Ambient Temperature Range (°C) | Applicable Fluid | Mass (g) | |
| Type | No. | ||||||||
| MSFR | 8A-S | 1/4 | 40 | 0~1.0 | 0.05~0.85 | 1.5 | 5~60 | Air | 210 |
| Part Number | Unit Price |
| MSPGN1 (Pressure Gauge) |
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.
Loading...
| Part Number |
|---|
| MSFR8A-S |
| MSPGN1 |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | RoHS | Applicable Fluid | Set Pressure Range (MPa) | Supply Side, Connection Dia. | Operating Pressure Range (MPa) | Flow Direction | Control Side, Connection Type | Control Side, Connection Dia. | Mass (g) | Nominal (No.) | Ambient Temperature Range (°C) | Operating Pressure Range (MPa) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
₹ 6,574.11 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | Compressed Air | 0.05～0.85 | 1/4 | 0～1.0 | (Right) | Others | [Ø6] 6 | 210 | 8A-S | 5~60 | 0~1.0 | Regulators with Filter | |
₹ 1,573.88 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | - | - | - | - | - | - | - | - | 1 | - | - | Pressure Gauge Only |
| Part Number |
|---|
Loading...
More Information

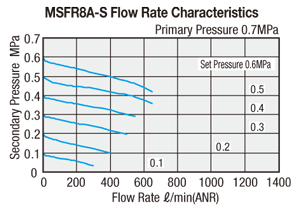

■Characteristic Data
This graph shows that when the primary pressure is constant at 0.7 MPa, the secondary set pressure drops according to the flow rate used.
This graph shows that when the primary pressure is constant at 0.7 MPa, the secondary set pressure drops according to the flow rate used.
Basic Information
| Regulator, Pressure Boosting Valve | Others | Regulator Type | Standard | Shape | Standard |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
