Product Detail
Product Description

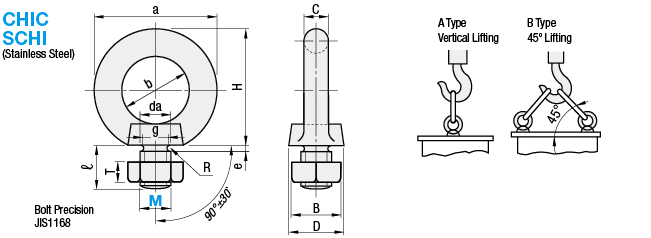

Lifting Eye Bolt
[Material] Steel/SS400, Stainless Steel/SUS304
[Surface treatment] Not Provided, Trivalent Chromate
[Thread Type] Metric Coarse
[Screw Type] Fully thread
[Accessary] Hex Nut 1pc
Sizes are M6 to M24. You can order from 1 pc. If you want to keep stock, purchasing by the small carton is advantageous.
Click this image to zoom it.
- Volume Discount
Copy Part Number URL to Clipboard
The part number URL has been copied into your clipboard.
-
- Starting From :
- 182₹/Unit
-
- Order Qty :
-
-
- Total Price :
- ---
-
- Days to ship :
- ---
Select part number to Order Now/ Add to Cart
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Similar Products
-
- Order Qty. :
-
-
- Price :
- ---
-
- Total Price :
- ---
-
- Days to ship :
- ---
Product Detail
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number |
|---|
| CHIC8 |
| CHIC10 |
| CHIC12 |
| CHIC16 |
| CHIC20 |
| SCHI8 |
| SCHI10 |
| SCHI12 |
| SCHI16 |
| SCHI20 |
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | RoHS | Nominal of Thread (M) | Length L (mm) | Pitch (mm) | Material | Surface Treatment | Material Details |
|---|---|---|---|---|---|---|---|---|---|---|---|
₹ 182.14 | 1 Piece(s) | Available | Same day | 10 | 8 | 15 | 1.25 | [Steel] SS400 | [Trivalent Chromate] Trivalent Chromate | - | |
₹ 192.86 | 1 Piece(s) | Available | Same day | 10 | 10 | 18 | 1.5 | [Steel] SS400 | [Trivalent Chromate] Trivalent Chromate | - | |
₹ 246.43 | 1 Piece(s) | Available | Same day | 10 | 12 | 22 | 1.75 | [Steel] SS400 | [Trivalent Chromate] Trivalent Chromate | - | |
₹ 385.71 | 1 Piece(s) | Available | Same day | 10 | 16 | 27 | 2 | [Steel] SS400 | [Trivalent Chromate] Trivalent Chromate | - | |
₹ 526.00 | 1 Piece(s) | Available | Same day | 10 | 20 | 30 | 2.5 | [Steel] SS400 | [Trivalent Chromate] Trivalent Chromate | - | |
₹ 300.00 | 1 Piece(s) | Available | Same day | 10 | 8 | 15 | 1.25 | [Stainless Steel] SUS304 | Not Provided | Body: SUS304 | Nut: SUS304 | |
₹ 300.00 | 1 Piece(s) | Available | Same day | 10 | 10 | 18 | 1.5 | [Stainless Steel] SUS304 | Not Provided | Body: SUS304 | Nut: SUS304 | |
₹ 610.70 | 1 Piece(s) | Available | Same day | 10 | 12 | 22 | 1.75 | [Stainless Steel] SUS304 | Not Provided | Body: SUS304 | Nut: SUS304 | |
₹ 867.86 | 1 Piece(s) | Available | Same day | 10 | 16 | 27 | 2 | [Stainless Steel] SUS304 | Not Provided | Body: SUS304 | Nut: SUS304 | |
₹ 1,500.00 | 1 Piece(s) | Available | Same day | 10 | 20 | 30 | 2.5 | [Stainless Steel] SUS304 | Not Provided | Body: SUS304 | Nut: SUS304 |
| Part Number |
|---|
Loading...
Basic Information
| Thread Type | Metric Coarse | Sales Unit | Low Quantity (Available beginning with 1 pc.) | Application | Standard |
|---|---|---|---|---|---|
| Screw Type | Full Thread |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Frequently asked question (FAQ)
- Question: What is JIS B 1168?
-
Answer:
JIS B 1168 is a Japanese Industrial Standard that specifies the requirements for eyebolts used in general cargo handling and for lifting machinery. This standard outlines the dimensions, materials, and testing requirements for eyebolts to ensure they are safe and effective for their intended use.
Key points about JIS B 1168 include:
Purpose: It regulates the use of eyebolts for lifting and handling machinery and general cargo.
Material: Typically made from forged carbon steel, often galvanized for durability and corrosion resistance.
Testing and Safety: Includes guidelines for ensuring that eyebolts meet specific performance and safety standards. - Question: How to lift with eyebolts?
- Answer: Vertical lifting uses a single eyebolt for straightforward upward lifting, angled lifting employs two eyebolts at 45 degrees for balance but risks bending, and multiple eyebolts distribute weight across several points for large or irregular loads, requiring even load sharing.
