Product Detail
| Type | Outer Cylinder | Steel balls | Retainer | Ambient Operating Temp. | [ A ] Accessory | ||||
| Round Flange | Square Flange | Compact Flange | [ M ] Material | [ H ] Hardness | [ S ] | [ M ] Material | [ M ] Material | ||
| LHTR | LHTS | LHTC | SUJ2 | 58HRC~ | - | SUJ2 | Plastic (Duracon M90 equivalent) | -20~80°C | Seals[ M ]Material: Nitrile Rubber (-20 ~120°C) |
| LHTRF | LHTSF | LHTCF | SUS440 | -20~110°C | |||||
| SLHTR | SLHTS | SLHTC | SUS440C equivalent | 56HRC~ | SUS440C equivalent | Plastic (Duracon M90 equivalent) | -20~80°C | ||
| SLHTRS | SLHTSS | SLHTCS | SUS440 | -20~120°C | |||||
Specifications
| Part Number | |
| LHQRW16 LHTR16  LHQRW10L (L Type Greased) LHQRW10G (G Type Greased) LHQCW10H (H Type Greased) | |
For Days to Ship and Performance, refer to >> P.272

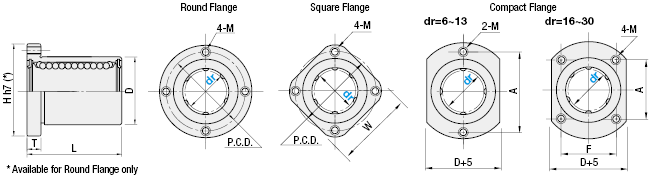

| Part Number | D | L | H | T | M | P.C.D. | W | F | A | Eccentricity | * Perpendicularity | Steel balls Rows of Balls | Basic Load Rating | Mass(g) | |||||||||
| Type | dr | Tolerance | Tolerance | Tolerance | C (Dynamic) N | Co (Static) N | Round Flange | Square Flange | Compact Flange | ||||||||||||||
| (SUJ2) | SUS440C Equivalent | 6 | 0 -0.009 | 12 | 0 -0.013 | 19 | ±0.3 | 23 | 5 | M3 | 17 | 18 | - | 17 | 0.012 | 0.012 | 4 | 206 | 265 | 19 | 15 | 17 | |
| 8 | 15 | 24 | 27 | 21 | 21 | - | 21 | 265 | 380 | 30 | 25 | 27 | |||||||||||
| (Round Flange) | LHTR | SLHTR | 10 | 19 | 0 -0.016 | 29 | 34 | 6 | M4 | 26 | 26 | - | 26 | 372 | 549 | 61 | 50 | 53 | |||||
| LHTRF | SLHTRS | 12 | 21 | 30 | 37 | 29 | 28 | - | 29 | 412 | 598 | 66 | 52 | 57 | |||||||||
| (Square Flange) | LHTS | SLHTS | 13 | 23 | 32 | 38 | 30 | 30 | - | 30 | 510 | 784 | 78 | 66 | 70 | ||||||||
| LHTSF | SLHTSS | 16 | 28 | 37 | 43 | 35 | 33 | 20 | 29 | 775 | 1180 | 108 | 90 | 99 | |||||||||
| (Compact Flange) | LHTC | SLHTC | 20 | 0 -0.010 | 32 | 0 -0.019 | 42 | 48 | 8 | M5 | 39 | 37 | 22 | 32 | 0.015 | 0.015 | 5 | 882 | 1370 | 159 | 130 | 145 | |
| LHTCF | SLHTCS | 25 | 40 | 59 | 56 | 47 | 45 | 27 | 39 | 6 | 980 | 1570 | 314 | 283 | 298 | ||||||||
| 30 | 45 | 64 | 66 | 10 | M6 | 55 | 51 | 32 | 45 | 1570 | 2740 | 417 | 350 | 380 | |||||||||
Part Number
- Incomplete part number.
Please use left hand selections to complete a part number.
| Part Number | Price | Minimum Order Qty. | Volume Discount | Days to Ship | RoHS |
|---|---|---|---|---|---|
₹ 753.25 | 1 Piece(s) | Available | Same day | 10 | |
₹ 1,883.20 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 1,883.20 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 1,883.20 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 753.28 | 1 Piece(s) | Available | Same day | 10 | |
₹ 1,883.20 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 1,883.20 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 1,883.20 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 781.49 | 1 Piece(s) | Available | Same day | 10 | |
₹ 1,911.45 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 1,911.45 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 1,911.45 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 828.61 | 1 Piece(s) | Available | Same day | 10 | |
₹ 2,523.49 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 2,523.49 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 2,523.49 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 903.94 | 1 Piece(s) | Available | Same day | 10 | |
₹ 2,598.82 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 2,598.82 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 2,598.82 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 1,035.76 | 1 Piece(s) | Available | Same day | 10 | |
₹ 2,730.64 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 2,730.64 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 2,730.64 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 1,224.08 | 1 Piece(s) | Available | Same day | 10 | |
₹ 2,918.96 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 2,918.96 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 2,918.96 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 1,723.13 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | |
₹ 3,418.01 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 3,418.01 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 3,418.01 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 2,382.25 | 1 Piece(s) | Available | Same day | 10 | |
₹ 4,077.13 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 4,077.13 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 4,077.13 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 1,082.84 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | |
₹ 2,212.76 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 2,212.76 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 2,212.76 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 1,082.84 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | |
₹ 2,212.76 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 2,212.76 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 2,212.76 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 1,111.09 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | |
₹ 2,241.01 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 2,241.01 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 2,241.01 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 1,186.42 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | |
₹ 2,881.30 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 2,881.30 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 2,881.30 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 1,299.41 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | |
₹ 2,994.29 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 2,994.29 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 2,994.29 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 1,478.31 | 1 Piece(s) | Available | 6 Day(s) or more | 10 | |
₹ 3,173.19 | 1 Piece(s) | Available | 10 Day(s) or more | 10 | |
₹ 3,173.19 | 1 Piece(s) | Available | 11 Day(s) or more | 10 | |
₹ 3,173.19 | 1 Piece(s) | Available | 10 Day(s) or more | 10 |
| Part Number |
|---|
Loading...
App. Example
Specifications/Overview
Housing strength tests have proven that these bushings are as capable of maintaining strength as conventional flanged linear bushings, or better, even in use with moment load is applied.
Example
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
