    Product Overview

    Using highly pressurized nitrogen as working medium and pressure source, gas springs provide a more stable pressure and are now widely applied in dies.
    MISUMI gas springs are configured with three kinds of safety devices: OSAS, USAS and OPAS, which can ensure the safety of customers during use.

    Product Features
    1. Space saving
    Compact products with high load, long stroke and small size are available.
    Only a little space is required to achieve high load performance.

    2. Large initial load
    An initial load up to 95,400 N is available at the start of the stroke.
    Unlike coil springs, there is no need to apply precompression, which helps simplify the operational process.

    3. Various strokes
    With a maximum stroke of 125 mm, the product is suitable for deep drawing.

    4. Piping supported
    Gas springs that support piping and piping parts are available, which are suitable for users with a need for load adjustment and air pressure confirmation.

    Precautions 01
    Example of Use
    Application of gas springs in dies:
    Example of Use

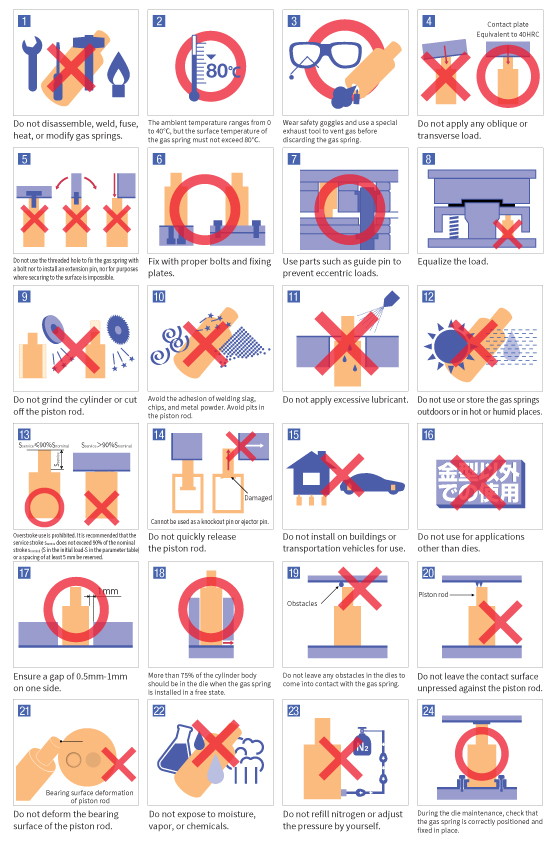

    Precautions
    Precautions 02
    Related Products

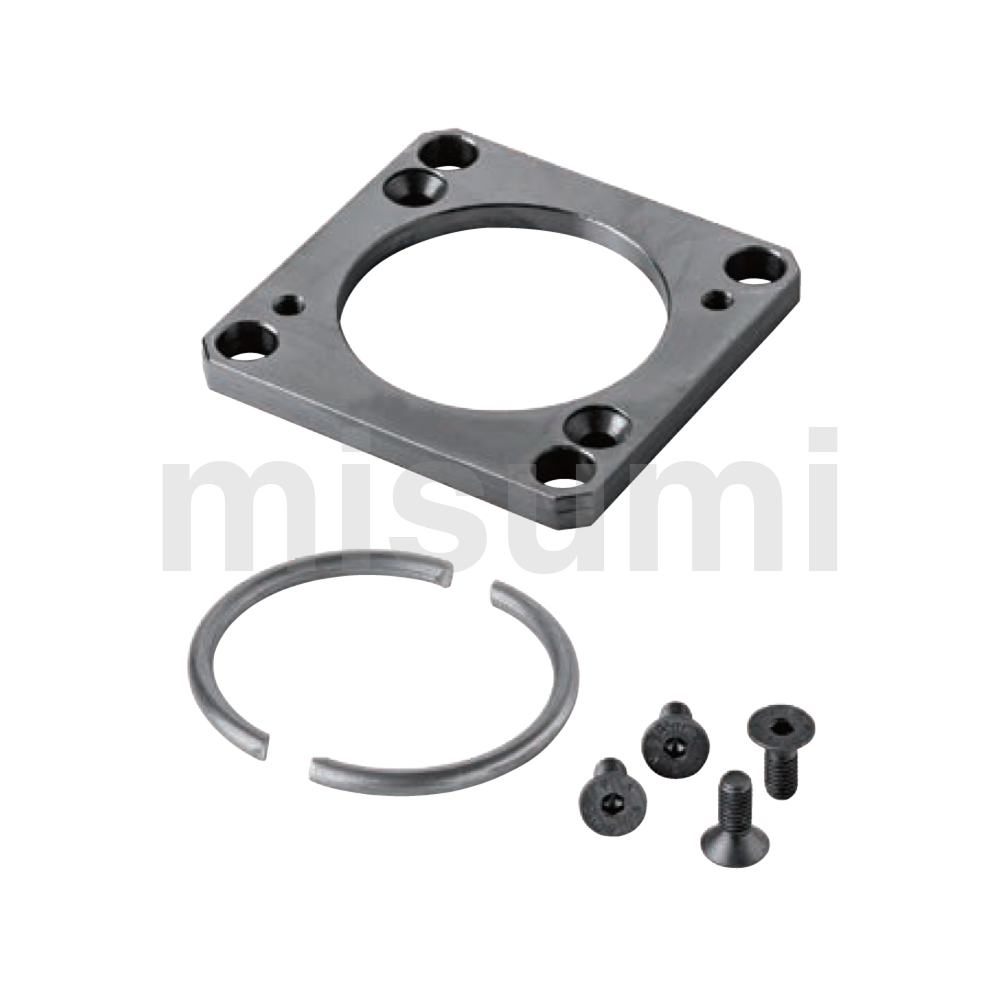

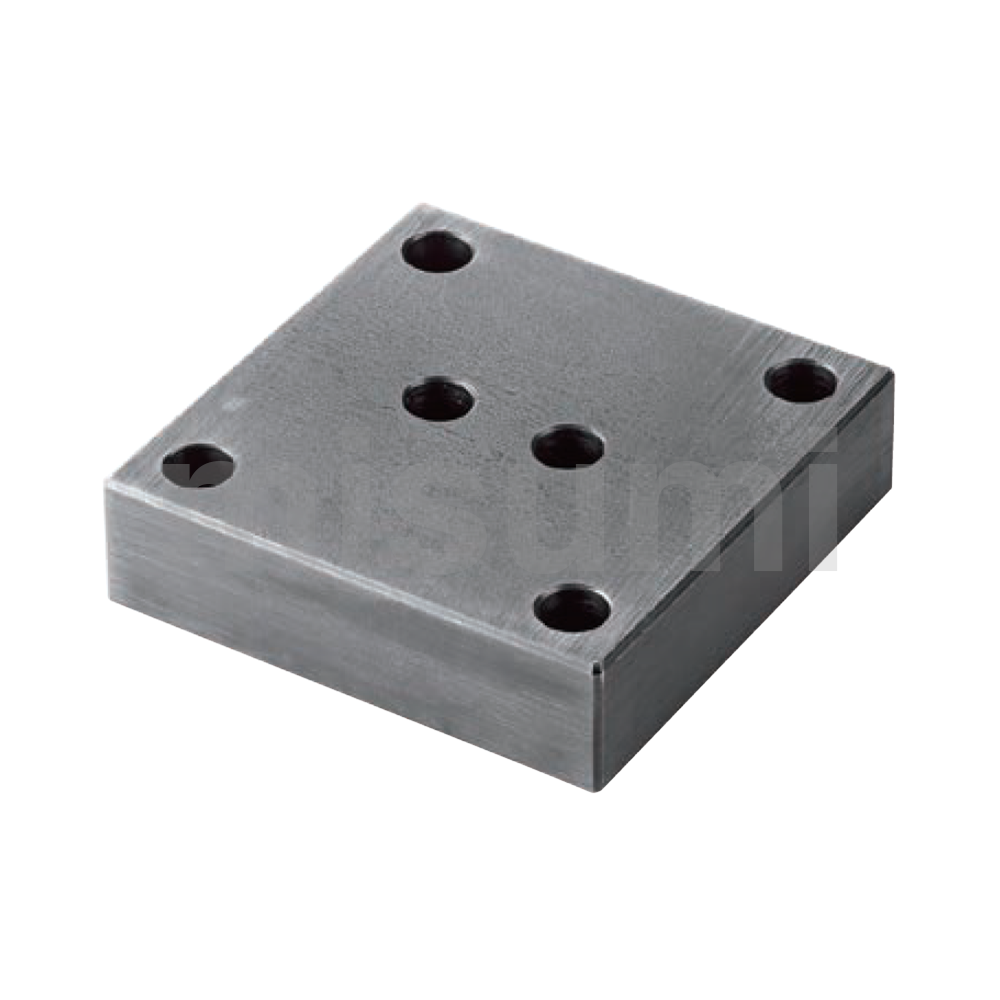

    Gas Spring Plates -Bearing Surface Fixed Type- Gas Spring Plates -Lower Groove Fixed Type- Gas Spring Plates -Upper Groove Fixed Type E-FCQ-
    Related Picture 1 Related Picture 2 Related Picture 3
    Part Number: E-FB Part Number: E-FFC Part Number: E-FCQ

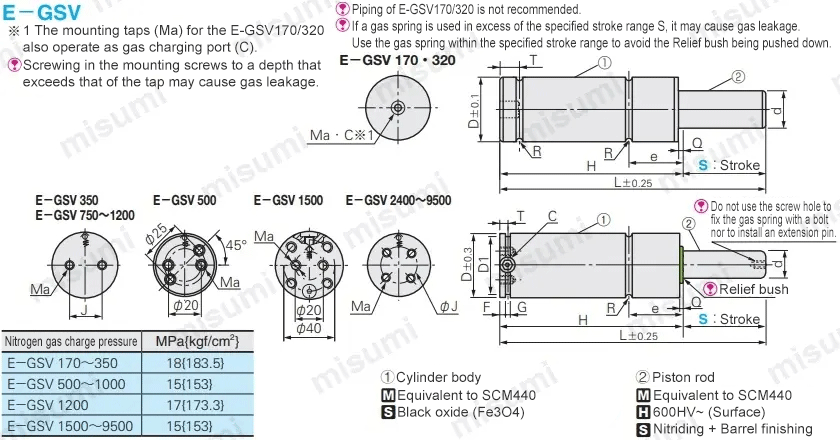

    Dimensional Drawing

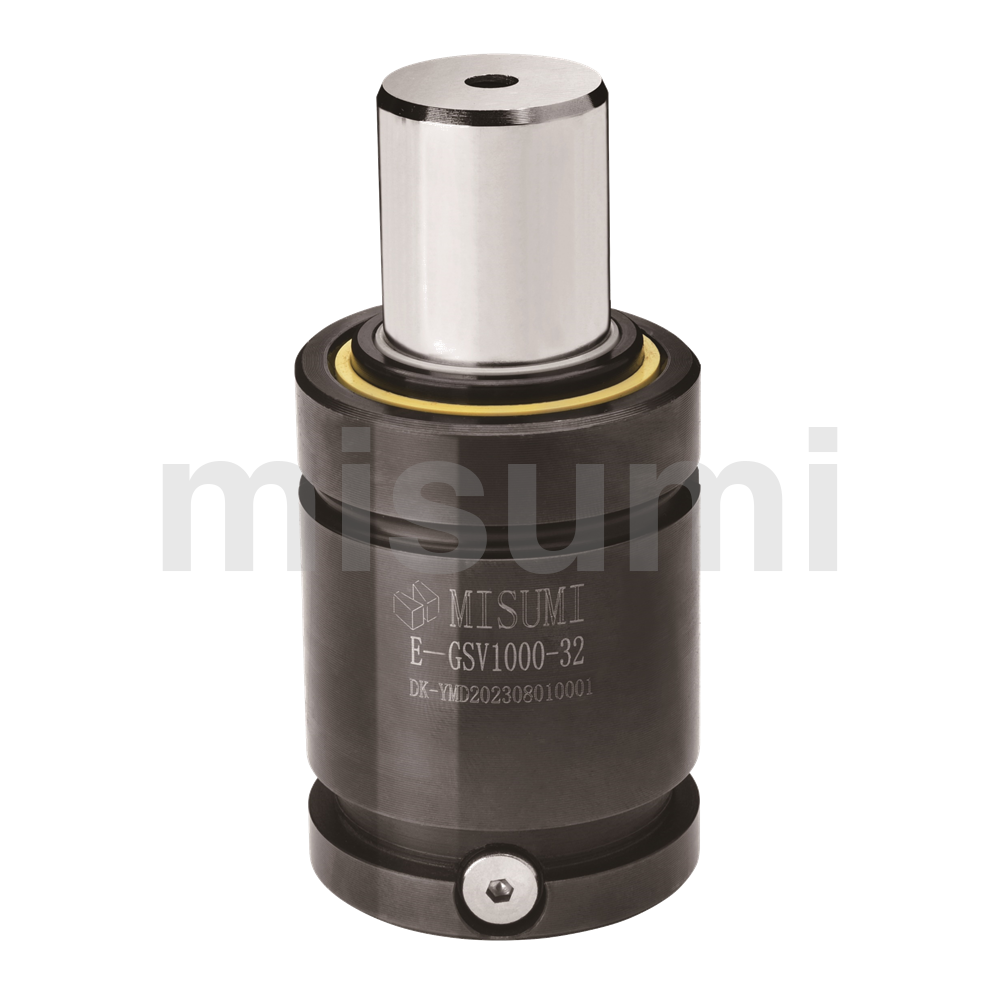

    E-GSV
    Specification Table
    Weight
    (kg)    		DD1dLHeRTFGMa
    Tap hole for mounting    		JQC Charging port Load N{kgf}Part NumberAdaptable plate
    Initial loadMaximum LoadTypeInitial load - SVertical
    0.0619171144371716－－M6×6－1M61700
    {173}    		2500{255}E-GSV170-7E-FCC19
    E-FC19
    0.0650402600{265}170-10
    0.0756432700{276}170-13
    0.0760452700{276}170-15
    0.0768492800{286}170-19
    0.0880552800{286}170-25
    0.0994622900{296}170-32
    0.09106682900{296}170-38
    0.11130802900{296}170-50
    0.12156933000{306}170-63
    0.141851103000{306}170-75
    0.151951153000{306}170-80
    0.172351353000{306}170-100
    0.192851603000{306}170-125
    0.0125231544371716－－M6×6－1M63200
    {326}    		4900{500}320-7E-FCC25
    E-FC25
    0.1050405000{510}320-10
    0.1156435100{520}320-13
    0.1160455200{531}320-15
    0.1268495200{531}320-19
    0.1380555300{541}320-25
    0.1494625400{551}320-32
    0.15106685400{551}320-38
    0.17130805400{551}320-50
    0.19156935500{561}320-63
    0.221851105500{561}320-75
    0.231951155500{561}320-80
    0.262351355500{561}320-100
    0.302851605500{561}320-125
    0.16322716504012.51643.52-M6×6202M63600
    {367}    		5300{541}350-10E-FC32
    E-FCQ32
    E-FFC32
    0.1756435300{541}350-13
    0.1862465300{541}350-16
    0.1968495300{541}350-19
    0.2180555300{541}350-25
    0.2394625400{551}350-32
    0.25106685400{551}350-38
    0.29130805400{551}350-50
    0.33156935400{551}350-63
    0.361801055400{551}350-75
    0.381901105400{551}350-80
    0.442301305400{551}350-100
    0.512801555400{551}350-125
    0.24383320504012.516442-M6×6
    (Φ20)

    2－M6×6
    (Φ25)    		20 or 252M64700
    {479}    		6900{704}500-10E-FC38
    E-FCQ38
    E-FFC38
    0.2556437100{724}500-13
    0.2662467100{724}500-16
    0.2868497100{724}500-19
    0.3180557200{735}500-25
    0.3494627200{735}500-32
    0.37106687200{735}500-38
    0.42130807200{735}500-50
    0.48156937200{735}500-63
    0.541801057300{745}500-75
    0.561901107300{745}500-80
    0.662301307300{745}500-100
    0.772801557300{745}500-125
    0.36453925524216.516442-M8×6202M67400
    {755}    		11300{1153}750-10E-FC45
    E-FCQ45
    E-FFC45
    E-FB45
    0.38584511400{1163}750-13
    0.39644811500{1173}750-16
    0.41705111500{1173}750-19
    0.45825711800{1204}750-25
    0.50966411800{1203}750-32
    0.541087011800{1204}750-38
    0.611328211800{1204}750-50
    0.701589511800{1204}750-63
    0.7718210711800{1204}750-75
    0.8119211211800{1204}750-80
    0.9323213211800{1204}750-100
    1.1028215711800{1204}750-125
    0.49504328584817.526872-M8×6203M69200
    {938}    		13600{1388}1000-10E-FC50
    E-FCQ50
    E-FFC50
    E-FB50
    0.51645113900{1418}1000-13
    0.54705414100{1439}1000-16
    0.56765714300{1459}1000-19
    0.61886314500{1480}1000-25
    0.671027014600{1490}1000-32
    0.711147614700{1500}1000-38
    0.811388814800{1510}1000-50
    0.9116410114900{1520}1000-63
    1.0518811315000{1531}1000-75
    1.0919811815000{1531}1000-80
    1.2123813815100{1541}1000-100
    1.4128816315100{1541}1000-125
    0.49504328584817.526872-M8×6203M610600
    {1080}    		15400{1571}1200-10E-FC50
    E-FCQ50
    E-FFC50
    E-FB50
    0.51645115700{1602}1200-13
    0.54705416000{1633}1200-16
    0.56765716200{1653}1200-19
    0.61886316400{1673}1200-25
    0.671027016600{1694}1200-32
    0.711147616700{1704}1200-38
    0.811388816800{1714}1200-50
    0.9116410116900{1724}1200-63
    1.0518811317000{1735}1200-75
    1.0919811817000{1735}1200-80
    1.2123813817100{1745}1200-100
    1.4128816317100{1745}1200-125
    0.8863563664541926874-M8×6
    (Φ20)

    4-M8×6
    (Φ40)    		20
    or
    40    		3M615000
    {1530}    		22100{2255}1500-10E-FC63
    E-FCQ63
    E-FFC63
    E-FB50
    0.92705722600{2306}1500-13
    0.96766023000{2347}1500-16
    0.99826323200{2367}1500-19
    1.06946923400{2388}1500-25
    1.141087623900{2439}1500-32
    1.211208224000{2449}1500-38
    1.351449424200{2469}1500-50
    1.5117010724400{2490}1500-63
    1.6519411924500{2500}1500-75
    1.7120412424500{2500}1500-80
    1.9424414424600{2510}1500-100
    2.2329416924700{2520}1500-125
    1.257567456555212.56874-M8×6403M624000
    {2447}    		33900{3459}2400-10E-FC75
    E-FCQ75
    E-FFC75
    E-FB75
    1.30715835000{3571}2400-13
    1.36776137700{3847}2400-16
    1.40836438200{3898}2400-19
    1.50957038300{3908}2400-25
    1.611097738500{3929}2400-32
    1.701218338800{3959}2400-38
    1.891459539000{3980}2400-50
    2.0917110839500{4031}2400-63
    2.2819512039500{4031}2400-75
    2.3620512539600{4041}2400-80
    2.6724514539700{4051}2400-100
    3.0729517039700{4051}2400-125
    2.769587609074242.510.5874-M8×13603G1/842000
    {4283}    		62400{6367}4200-16E-FC95
    E-FCQ95
    E-FFC95
    E-FB95
    2.83967763600{6490}4200-19
    2.981088365300{6663}4200-25
    3.161229066700{6806}4200-32
    3.301349667600{6898}4200-38
    3.6015810868800{7020}4200-50
    3.9318412169600{7102}4200-63
    4.2020813370200{7163}4200-75
    4.3521813870400{7184}4200-80
    4.8525815870900{7235}4200-100
    5.4730818371400{7286}4200-125
    5.06120112751008425.52.510.5874-M10×13803G1/866000
    {6730}    		96200{9816}6600-16E-FC120
    E-FCQ120
    E-FFC120
    E-FB120
    5.171068798100{10010}6600-19
    5.4211893101000{10306}6600-25
    5.69132100103400{10551}6600-32
    5.93144106104800{10694}6600-38
    6.04168118106900{10908}6600-50
    6.90194131108400{11061}6600-63
    7.40218143109300{11153}6600-75
    7.60228148109600{11184}6600-80
    8.40268168110600{11286}6600-100
    9.40318193111500{11378}6600-125
    9.51150142901169727.52.56884-M10×131003G1/895400
    {9728}    		138400 {14122}9500-19E-FC150
    E-FCQ150
    E-FFC150
    E-FB150
    9.90128103142300 {14520}9500-25
    10.30142110145400 {14837}9500-32
    10.70154116147400 {15041}9500-38
    11.40178128150200 {15327}9500-50
    12.20204141152100 {15520}9500-63
    13.00228153153400 {15653}9500-75
    13.30238158153800 {15694}9500-80
    14.60278178155200 {15837}9500-100
    16.10328203156300 {15949}9500-125
    The initial load (±10%) is value at 20°C. The maximum load is theoretical value under static condition. Load depends on temperature.
    ● Load {kgf} = Load N × 0.101972
    ● Load {N} = Load kgf × 9.80665
    ● Nitrogen gas charge pressure kgf/cm2 = MPa × 10.1972; MPa = kgf/cm2 × 0.0980665
