Economy Toggle Clamps
Wide lineup: horizontal, vertical, horizontal pressure, door holder types
High-quality low-carbon steel with zinc plating finish
Same-day shipping lineup available

Product Features

Type
Various types of Misumi economical toggle clamps available 4 main types, 56 specifications, meeting all FA industry demands

Horizontal type
Vertical type
Horizontal pressure type
Door holder type

quality
Misumi economical toggle clamps use high-quality A33 (low-carbon steel), ensuring tensile strength twice that of market products, guaranteeing clamping pressure and long service life.

Body material	MISUMI standard toggle clamp	MISUMI economic toggle clamp	Market distribution product※
Body material	SS400	High-quality A33 (low-carbon steel) zinc-plated, Tensile strength 375~460MPa	Zinc-plated iron , Tensile strength 170~270MPa

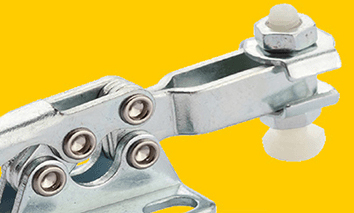

Rivet Material	Nickel Plated Rivet	Nickel Plated Rivet	Normal Rivet

Market Products*
- General rivet: The quality of the rivet joint is poor, cracks soon appear at the joint.
- When the rivet loosens, the product becomes weak.
- Also, due to insufficient clamping pressure, the rivet
easily bends.
- Shortening the service life. VS MISUMI Economy Toggle Clamp - Due to nickel plating treatment, the rivet joint is sturdy
- It has a long service life ※ These are some of the products we prepare for different situations.
※ Actual data is obtained through our audit measurements and is provided for reference only.

Delivery
Misumi economical toggle clamps are being progressively stocked, So we have many same-day shipping lineups available.

Design Case

Take a closer look design case

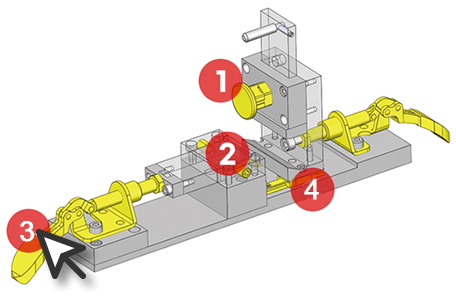

A simple sheet metal bending jig composed of toggle clamps and index plungers, with a simple structure and easy operation.
Using different toggle clamps, index plungers, and other positioning and clamping products.
Various functional positioning jigs can be configured.

Toggle clamp
474.00/Piece
Horizontal type 1568N
