View all Economy Bearings

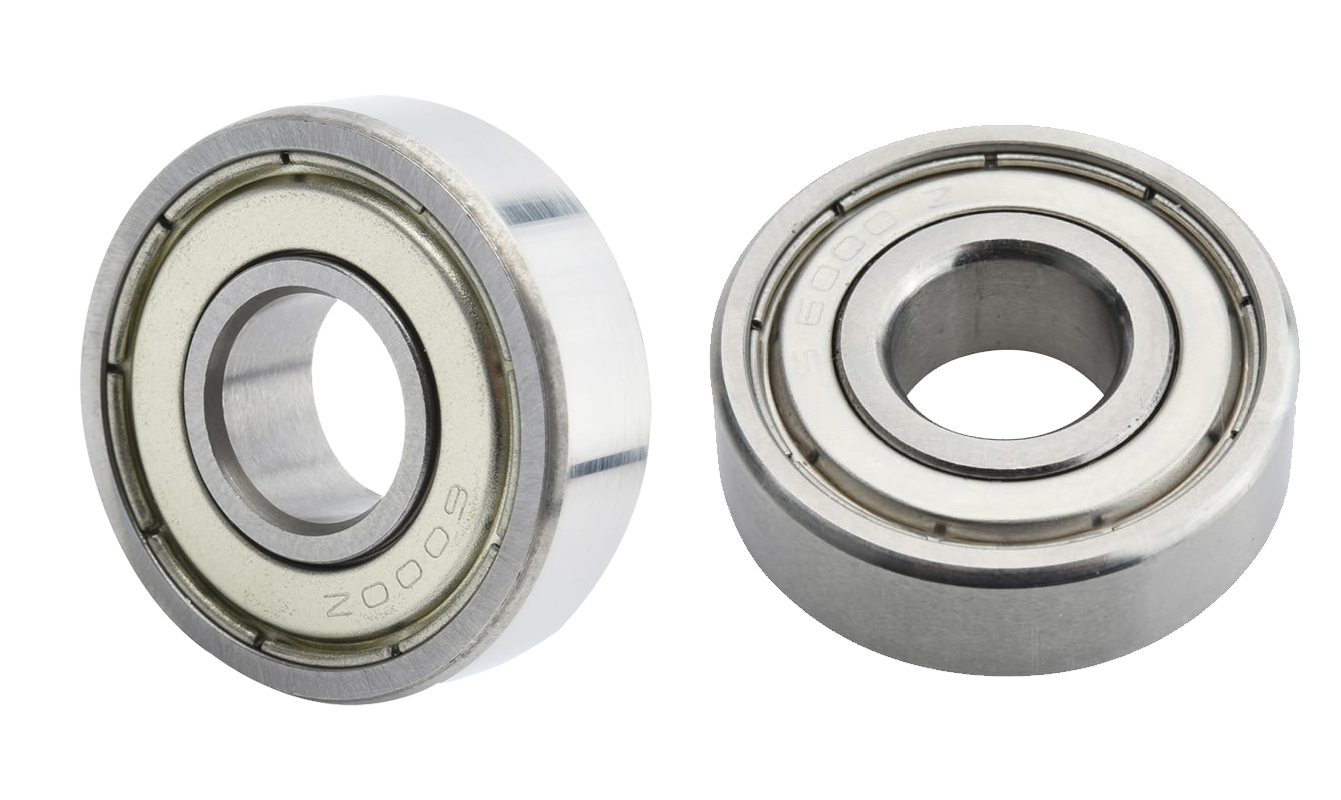

Economy Bearings
- Guaranteed quality above Z1 with greatly reduced noise and vibration
- Wide width design proven for long service life
- Superior bearing steel, stainless steel material
Product Features
Features of MISUMI Economy Bearings
1
Why does MISUMI conduct noise and vibration tests on all products and produce products above 'Z1' grade for economical bearings?
Bearing vibration is divided into ZO, Z1, Z2, Z3, Z4 grades -(higher number means lower noise and vibration)
- Dimensional tolerance including inner and outer diameters
- Clearance tolerance
- Sphericity of bearing balls
- Precision of bearing internal and external material
- Composition of bearing interior, foreign material inclusion
Market distribution Products
Z1 grade not guaranteed
MISUMI Economy
Guaranteed above Z1 grade
2
Contact Area Comparison

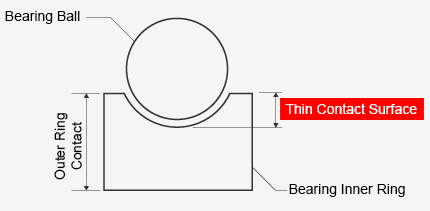

Market Distribution Products ※
Small contact area leads to concentrated contact stress, reducing lifespan

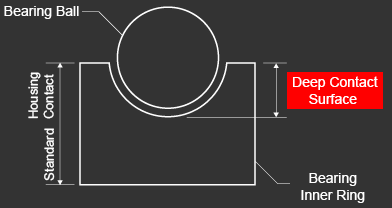

MISUMI Economy Bearing
Larger contact area disperses contact stress, extending lifespan
3
Material Comparison
Differences from Market Distribution Product Materials ※
Bearing Steel Material
Common market steel's heat-treated hardness is 48~54HRC, vulnerable to wearLifespan Test Results
After lifespan test under same conditions as MISUMI economical type, severe wear and structural damage observed when end cover disassembled
Stainless Steel Material
Common Market Stainless SteelSalt Water Test Results
Rust Area About 30%
MISUMI Economy Products
Bearing Steel Material
SUJ2 (bearing steel) hardness after heat treatment is 58~63HRC, with better wear resistanceLifespan Test Results
After long-term lifespan test, little internal wear and maintained circular structure observed when end cover disassembled
Stainless Steel Material
Equivalent to 440 or 420 Stainless SteelSalt Water Test Results
Rust Area About 2~3%

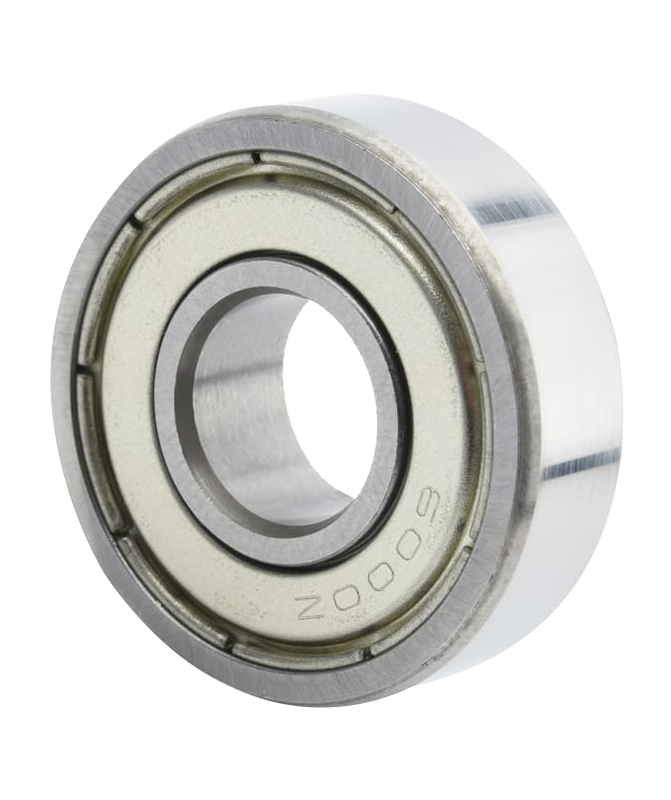

Features of MISUMI Economy Bearings
MISUMI Economy Bearing

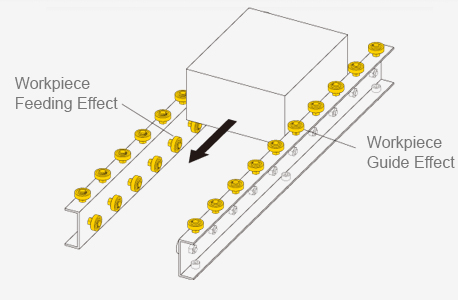

Usage Environment Low Load | Low Speed Rotation | Medium Precision Rotation
Recommended Usage Areas
Low Load
Light Processing Conveyor Bearing
Medium-Low Speed Rotation
Limited to medium and low-speed operation for drive converters and bayouts
Medium Precision Rotation
Bearings that don't require precise positioning

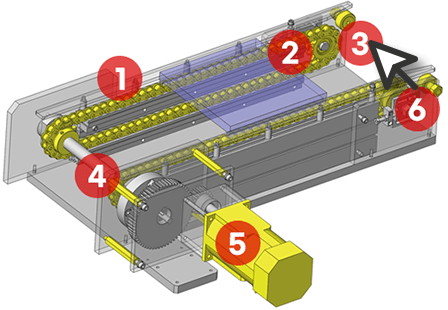

Design Example
Chain Transfer Device
A widely used chain-type conveyor through cooling frame and chain drive combination.
Chain-type drive devices are widely applied to various types of conveyor transport line equipment Can be used even in harsh environmental conditions.
Bearing
₹62.05 /Unit
- Inner diameter 8mm
- Outer diameter 16mm
- Width 5mm
