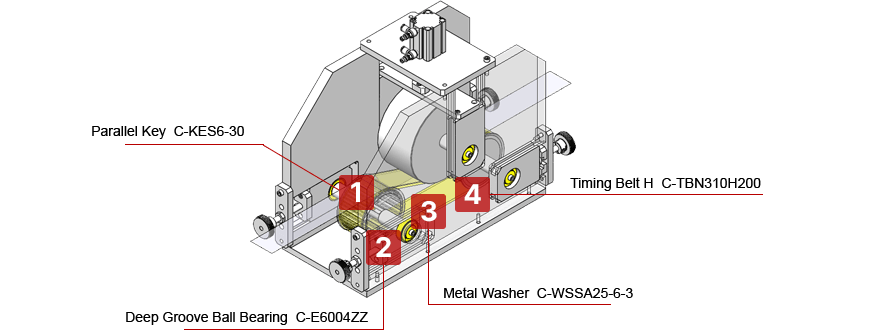

Belt Nip Transfer

Specifications and Features

Purpose/Function

Transport/Movement

Prevent workpiece slippage and ensure reliable transfer by increasing the contact area between the conveyor and the workpiece.
Transfer the workpiece by lowering the roller through the workpiece film between the timing belt (between two pulleys) and the roller installed in the middle of the belt, then drive the belt to move the workpiece.
One side of the nip is a metal roller, while the other side is a timing belt, allowing for lighter nip pressure.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Parallel Key	C-KES6-30	Shape: Parallel key (rounded on both ends) Width (mm): 6 Total length (mm): 30 Material: Steel	2	₹ 116/Piece
②	Deep Groove Ball Bearing	C-E6004ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 6580 Allowable rotational speed (RPM): 8000	6	₹ 99/Piece
③	Metal Washer	C-WSSA25-6-3	Outer diameter D(mm): 25 Inner diameter V(mm): 6 Material: Steel Surface treatment: Trivalent chromate bright finish	5	₹ 60/Piece
④	Timing Belt H	C-TBN310H200	Belt type: H Belt material: Chloroprene rubber Belt type: Trapezoidal tooth circular Belt width (mm): 2 Number of teeth: 62	1	₹ 1,374/Piece
