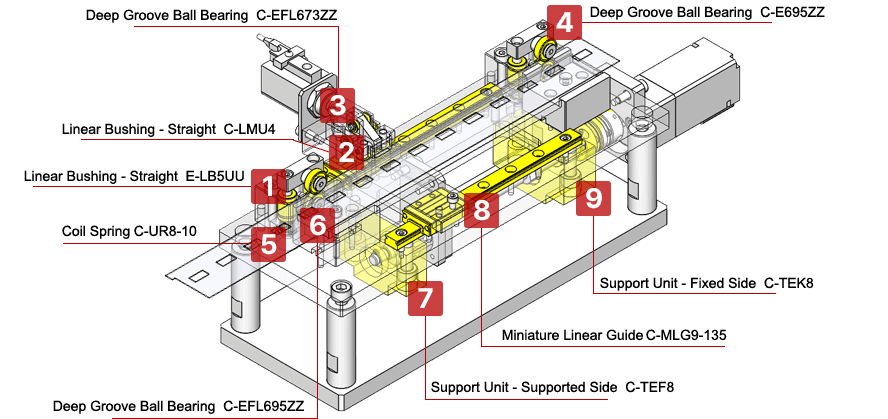

Hoop Repetitive Transfer Unit

Specifications and Features

Purpose/Function

Transport/Movement Positioning/Clamp

Applied to hoop material transport mechanism in automated equipment.
Mechanism that repeatedly moves a hoop, pressed from above by a cylinder, using a stepper motor and ball screw.
Mechanism providing precise pitch movement using a stepper motor and linear guide.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Linear Bushing - Straight	E-LB5UU	Inner circle diameter dr(φ) : 5 Total Length L(mm): 15 Outer tube material: Iron Outer tube surface treatment: None	4	₹ 15/Piece
②	Linear Bushing - Straight	C-LMU4	Inner circle diameter dr(φ) : 4 Total Length L(mm): 12 Outer tube material: Iron Outer tube surface treatment: None	2	₹ 15/Piece
③	Deep Groove Ball Bearing	C-EFL673ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 146 Allowable rotational speed (RPM): 44000	4	₹ 87/Piece
④	Deep Groove Ball Bearing	C-E695ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 756 Allowable rotational speed (RPM): 30000	2	₹ 45.05/Piece
⑤	Coil Spring	C-UR8-10	Outer diameter D(φ): 8 Free length L(mm): 10 Maximum load (N): 1.8 Spring constant (N/mm): 0.29	4	₹ 116.55/Piece
⑥	Deep Groove Ball Bearing	C-EFL695ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 756 Allowable rotational speed (RPM): 30000	2	₹ 87/Piece
⑦	Support Unit - Supported Side	C-TEF8	Type: Support side Shaft diameter D(φ): 6 Material: Steel Surface treatment: Black oxide coating	1	₹ 497/Piece
⑧	Miniature Linear Guide	C-MLG9-135	Mounting height H(mm): 10 Length L(mm): 135 Rail type: Standard rail Guide rail material: Carbon steel Block material: Carbon steel	2	₹ 1518/Piece
⑨	Support Unit - Fixed Side	C-TEK8	Type: Fixed side Shaft diameter D(φ): 8 Material: Steel Surface treatment: Black oxide coating	1	₹ 2042/Piece
