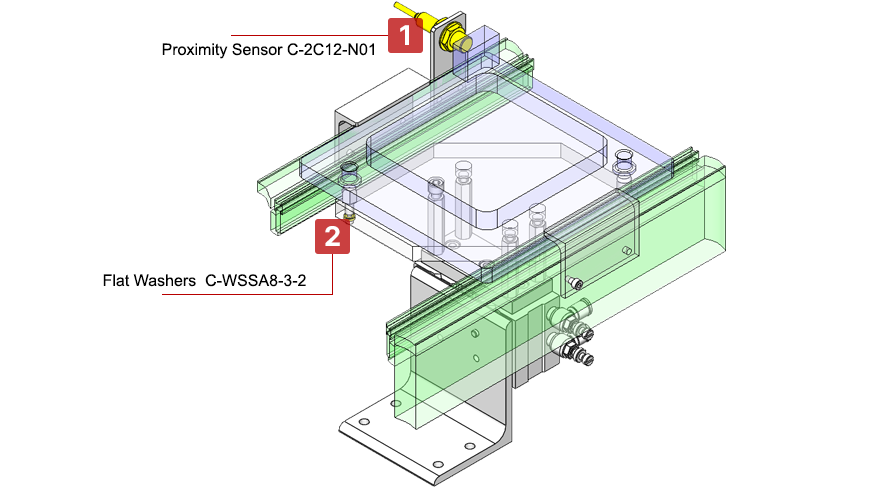

Pallet Positioning Mechanism
Specifications and Features
- Purpose/Function
-
Positioning/Clamping
Assembly/Processing
Driving
A mechanism that determines the position of a pallet by securely fixing it with a clamping structure.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Proximity Sensor | C-2C12-N01 | Detection distance L1 (mm): 4.0 mm Detection head dimensions W (mm): M12X1.0 Output type: NPN (ON) Power and output specifications: 3-wire |
1 | ₹ 1,886.78/Piece |
| ② | Flat Washers | C-WSSA8-3-2 | Outer diameter D(mm): 8 Inner diameter V(mm): 3 Thickness T(mm): 2 Material: Steel Surface treatment: Trivalent chromate polishing |
2 | ₹ 17/Piece |
※ GST is excluded in these prices, and the specific details are based on the website quote.
Product List
1
2
※ The price on the product list is the starting price for that product.
