Selection Guide Switch Boxes
Aluminum FA Switch Box Useful Features
● An easy to use and stylish rotary opening structure.
The lid does not interfere with work as it opens 90 degrees or more.
Operability has improved as the switch cable is retained.
● Select from aluminum and steel enclosures (some resin enclosures).
● Can be purchased with wiring connected. (With Switch, Cable Ground, Cable)
■ Switch Box Specifications List
Wiring Connection Product Specifications
| Material | Aluminum | Steel | ||||||
|---|---|---|---|---|---|---|---|---|
| Enclosure Alone | Standard | Medium | Compact | Standard | Medium | Medium (Packing) |
Medium (Toggle Switch) |
Bracket Type |
| Size (mm) |   |
 |
 |
 |
 |
 |
 |
 |
| Wiring Connection Specifications | φ22 Switch | φ22 Switch | φ16 Switch | φ22 Switch | φ22, φ16 Switch |
- | φ22, Toggle Switch |
φ22, φ16 Switch |
| Exterior Photo |  |
 |
 |
 |
 |
- |  |
 |
| Wiring Connection Specifications | Vertical φ22 Switch | Vertical φ22 Switch | - | φ30 Joystick |
- | |||
| Exterior Photo |  |
- |  |
- | ||||
| Material | Steel, Aluminum | Resin |
|---|---|---|
| Enclosure Alone | Standard, Medium | - |
| Wiring Connection Specifications | φ30 Interlock Plug | φ22 Emergency Stop |
| Size (mm) |  |
 |
■ Switch Box Optional Specifications List
| Optional parts | Rubber Feet | Mounting Bracket | ||
|---|---|---|---|---|
| Dedicated for Aluminum Enclosure | Dedicated for Steel Enclosure | Angle Type | Mounting Bracket Type | |
| Size (mm) |  |
 |
 |
 |

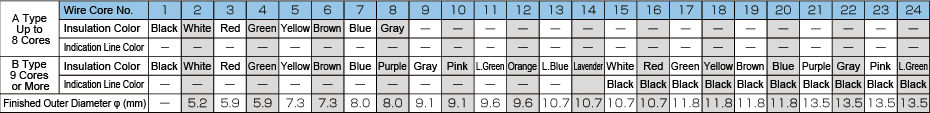

■ Cable Wiring Color VCTF Series * For Even Wire Numbers
Wiring and Wiring Color Switch Symbol 1EL-2PA1-3PA3
