6060 Aluminum Frame Slot Width 8

6060 Aluminum Frame Slot Width 8
You can add up to 6 items per a category to the compare list.

Part Number :
  • Order Qty :
  • Price :
    ---
  • Total Price :
    ---
  • Days to ship :
    ---

Select part number to Order Now/ Add to Cart

  • CAD Data unavailable

Product Description

This is an economy item, The price is cheaper than the MISUMI standard product.

Product Overview

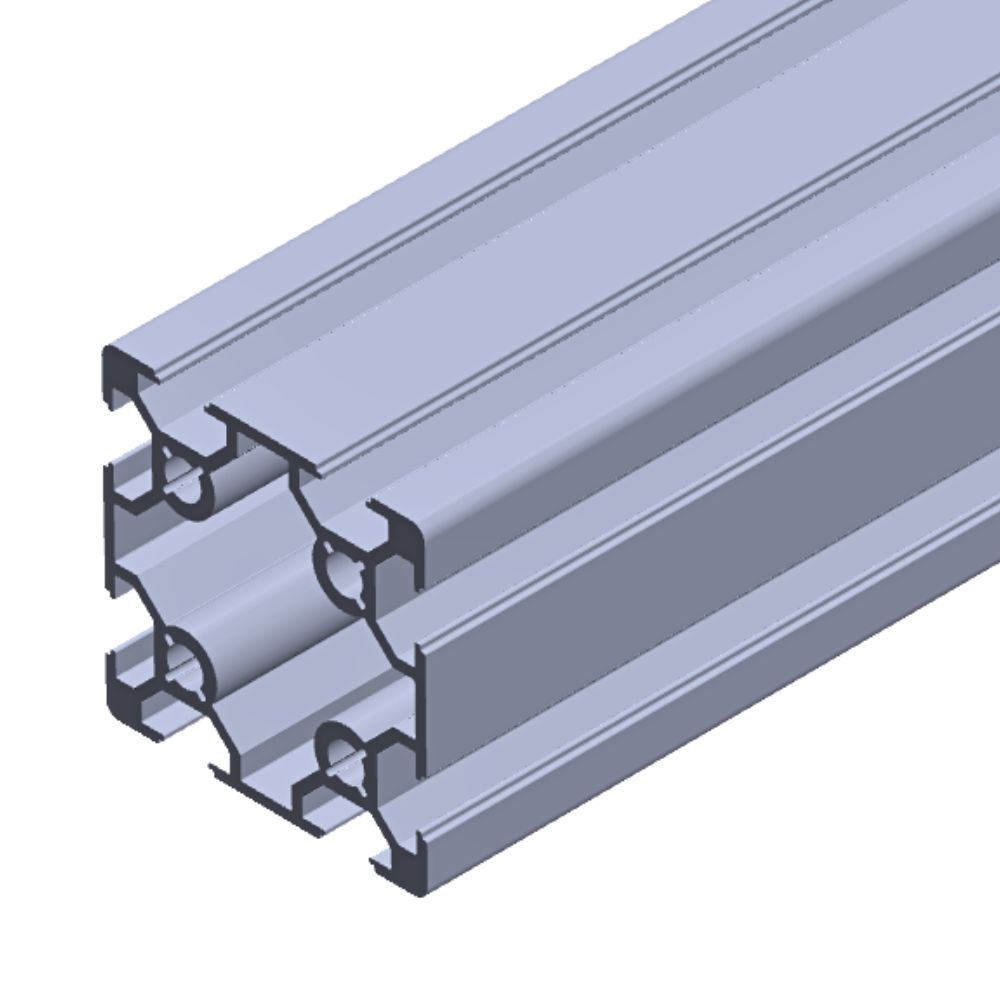

MISUMI Economy series aluminum frames with a groove width of 8mm, a side length of 60mm, and one row of grooves.
Suitable for the structure of small hoods, cabinets, and display bars.

                                      LCFI8-6060

TypeMaterialSurface Treatment
LCFI8-60606063-T5Clear Anodize

Specification Overview

Part numberOverall Length LWall Thickness t
(mm)
Weight
Type Profile
kg/m
LCFI8606050~4000
(1mm increments)
22.495
[!] 50 to 4000mm can be cut free of charge at any length specifi ed in units of 1mm.


Precautions

6060 Aluminum Frame Slot Width 8 Accessories

The accessories for European standard aluminum profiles and MISUMI's existing Japanese standard aluminum profiles are not universal, so it is recommended to use European standard Economy series profile accessories beginning with L.

AccessoriesPart Number 1Part Number 2Part Number 3
T-NUTLNTN8-40-6LNHRN8-40-6LNSN8-40-8
BracketLBSBK8-6060LBSB8-6060LBL7878-60
End CapLCEC8-6060-BLCEC8-6060-G-
Slot CoverLMCSB8LMCSG8-
Join Plate/Screw---

Alteration

 Part number ( Type - Profile)-Overall Length L-(TPW...etc.)
LCFI8-6060-4000-TPW

Alteration NameMachining contentApplicable installation example
End Tapping
(Center hole)
Machining Tapped Holes
on End Faces of aluminumframe
45-Degree CuttingCutting with 45-degree angle.
S HoleAdding required holes for Pre-Assembly.
Insertion Double Joint connections.
M HoleAdding required holes for Post-Assembly.
Insertion Double Joints,
Center Joint connections.
Drilling Wrench HoleDrilling Wrench holes in fixed positions
for Blind joint connections.
CounterboringMachining Counterbored holes
at anyspecified positions.
Part Number
LCFI8-6060-4000
LCFI8-6060-[50-3999/1]
Part NumberPriceMinimum Order Qty.Volume DiscountDays to ShipOverall Length L (Effective Length)
(mm)

₹ 4,700.00

1 Piece(s) Same day 4000

-

1 Piece(s) 3 Day(s) 50 ~ 3999

Loading...

  1. 1

Basic Information

Standard Extrusion Size(mm) 60 Number of Slotted Surfaces Four-Side Slots Surface Treatment Clear Anodize
Extrusion Type Square Shape Surface Milled Not Provided Material 6063-T5
Extrusion Type LCFI Weight(kg/m) 2.495 Wall Thickness (t)(mm) 2
